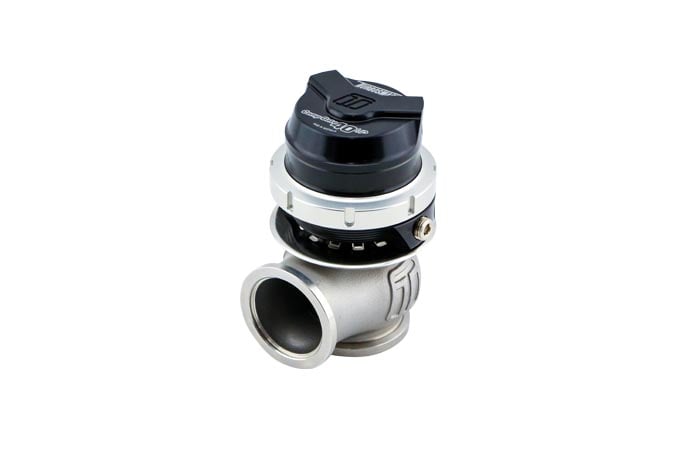

Turbosmart GenV CompGate40HP 40mm External Wastegate 35psi Black

The GenV CompGate40 HP external wastegate is a Motorsport-proven, cost-effective 40mm external wastegate with base spring pressure options of up to 50 psi! Add some reference signal manipulation, and you have a serious boost! The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision and 1/8″ NPT reference ports.

Features

• HP Actuator – Up to 50psi Base Pressure
• Class Leading Thermal Performance
• Class Leading CFD and Bench-Validated Flow Performance
• Class Leading Fatigue Resistance
• Optional Actuator Liquid Cooling
• Rotatable / Clockable Actuator Housing
• Nitronic 60 Valve Guide and High Temp 347 SS Body
• 17-7 PH Stainless Steel Springs
• Strap Type V-band clamps

Included:

Installation Guide
