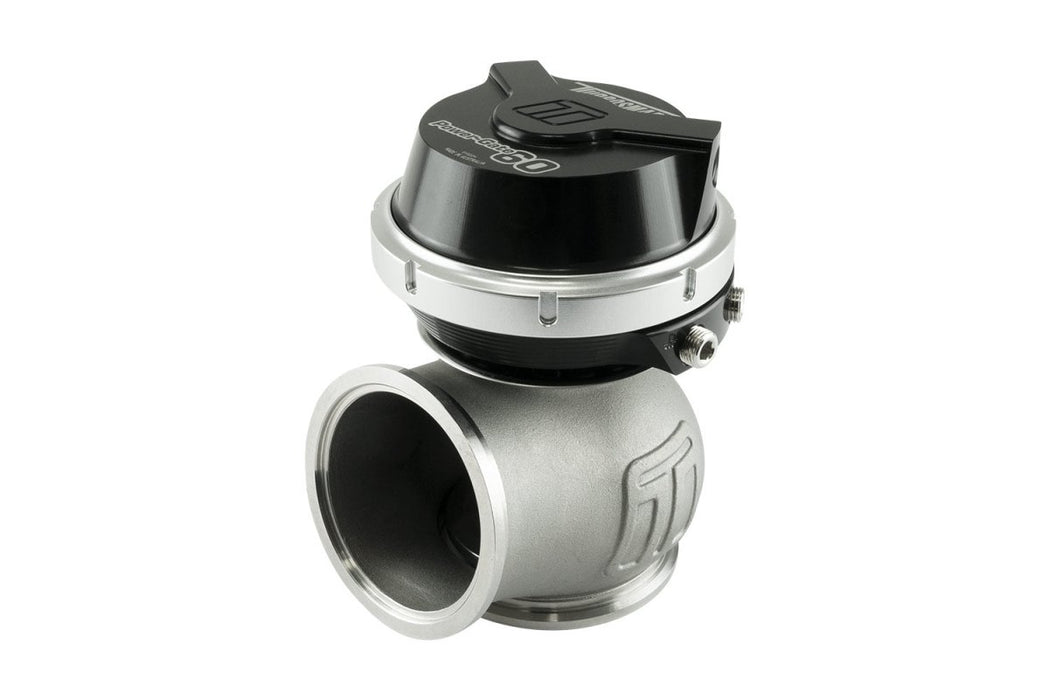

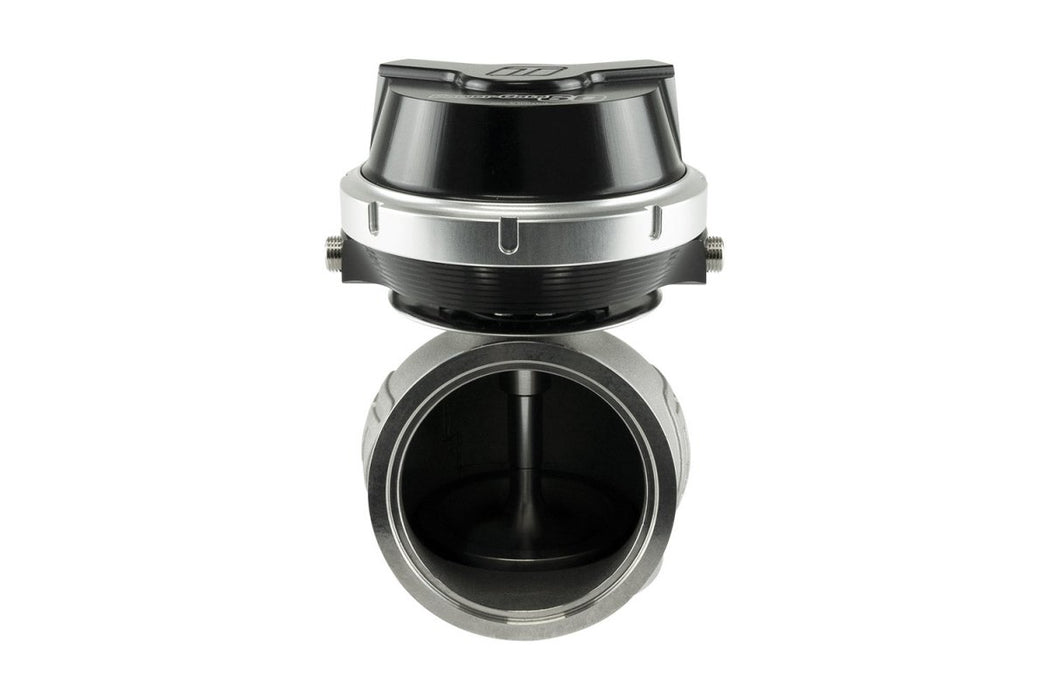

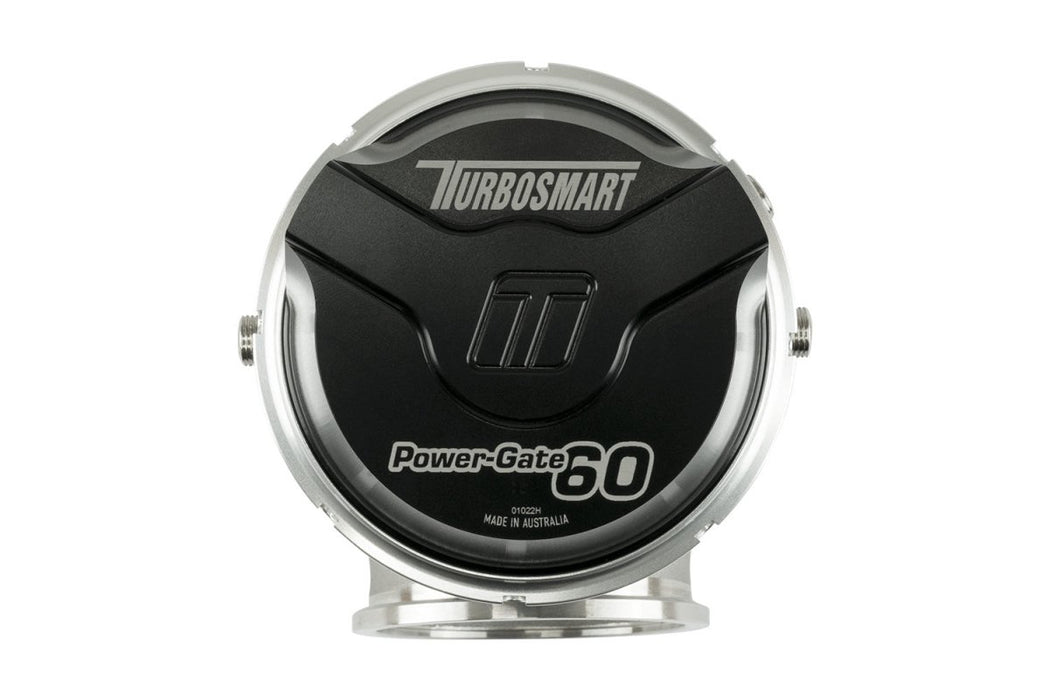

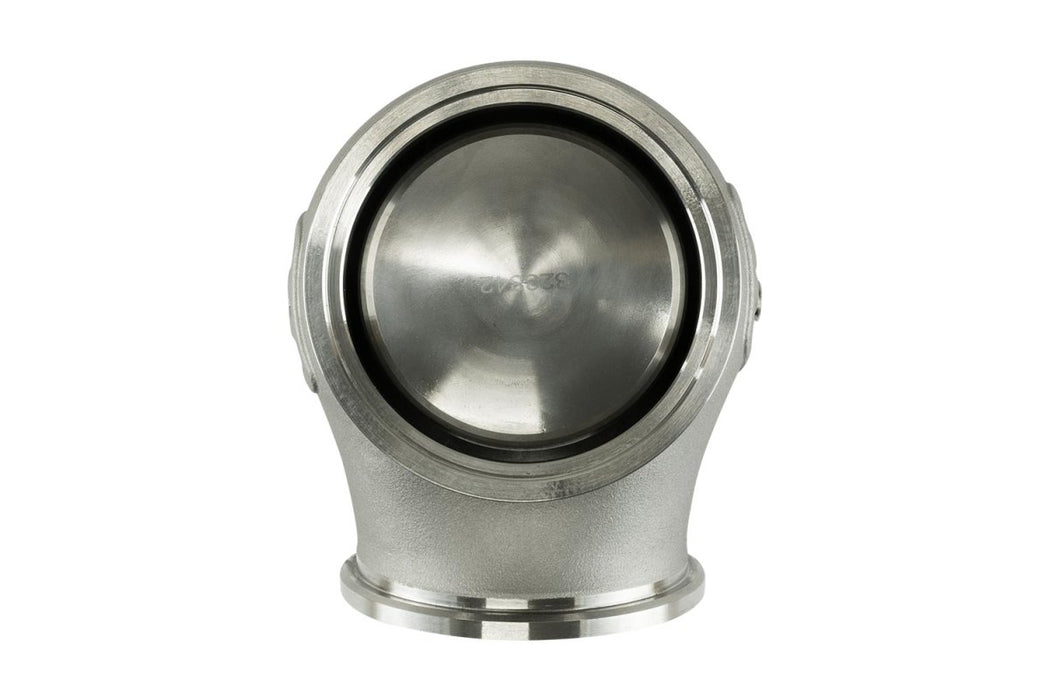

Turbosmart GenV PowerGate60 60mm External Wastegate 7PSI Black

The GenV WG60 PowerGate60 External Wastegate is a Motorsport-proven, cost-effective 60mm external wastegate – The largest in the Turbosmart GenV range and the Highest Flowing ‘Poppet Style’ Wastegate in the World. The GenV provides extensive user configurability, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity.

The GenV External Wastegate from Turbosmart was a ground-up rework of a classic, and the only feature that rolled over from the Gen4 range was the mounting orientation. CFD optimized and validated in-house for maximum flow and thermal management, the GenV range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, strap-type V-band clamps, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Features:

• Class Leading, Thermal Performance
• Class Leading, CFD & Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Optional Liquid Actuator Cooling
• Optional Position Sensor Available Separately
• Rotatable / Clock-able Actuator Housing
• 60mm V-Band Fitment
• Nitronic 60 Valve Guide & High Temp 347 SS Body
• 17-7 PH Stainless Steel Springs
• Strap Type V-band clamps

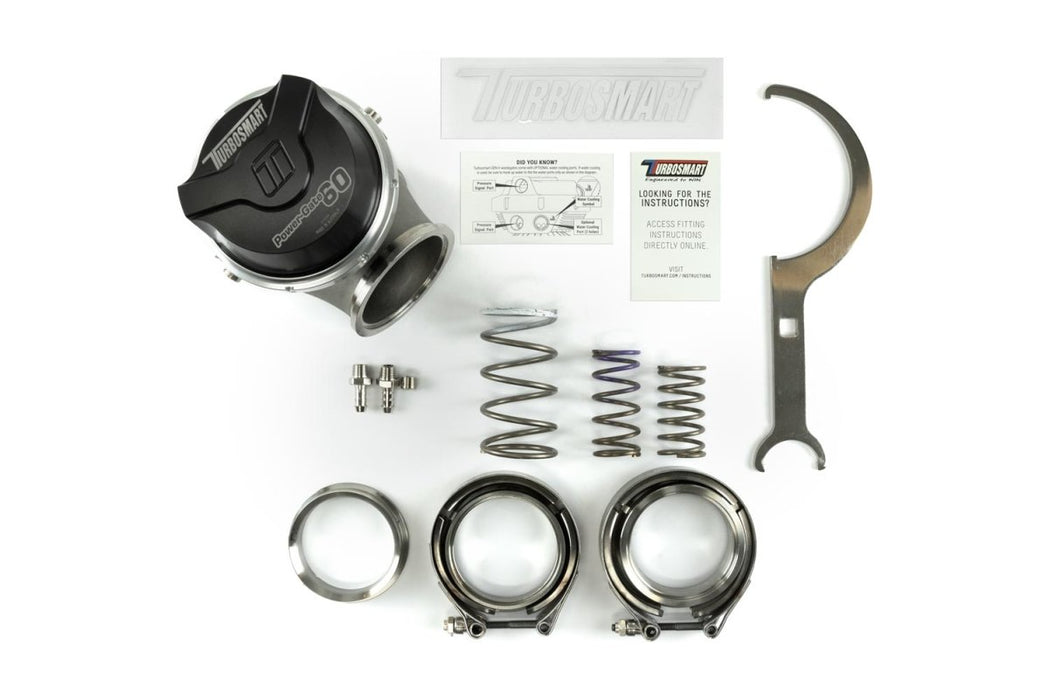

Included:

• GenV Wastegate unit
• All Springs Included
• 3,5,7,14psi (1 Inst. As per Description)
• Locking Collar Tool
• GenV SS316 Valve seat
• Strap Type V-Bands
• Inlet and Outlet Weld Flanges
• Hose Tail and Blank Fitting Kit
• Turbosmart Decal

Installation Instructions
