Radium Engineering High Flow Fuel Filter Kit w/ 10 Micron Stainless Filter

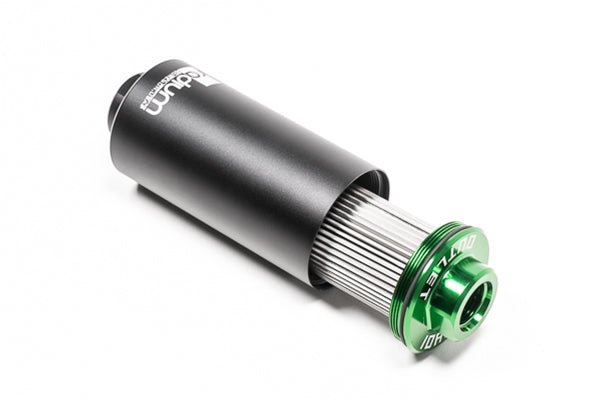

The Radium Engineering universal fuel filter is a perfect match for any application needing high flow and industry-leading filtration. Radium Engineering uses one of the largest filtration elements in the industry. This translates into a long service life and minimum flow loss, making this filter perfect for low and high-horsepower applications. The filter can be completely disassembled for servicing and replacement elements are available. Stainless steel mesh elements can be cleaned and re-used! This filter is designed for both carbureted and EFI fuel pressures.

All fuel filters are constructed with a 3-piece body that is CNC machined from 6061 aluminum and Type-II anodized for maximum corrosion resistance. The end caps are sealed to the body with FKM O-rings, and the filter elements feature a stainless internal core to prevent collapsing at high flows.

The fuel filters come preassembled with the chosen filter element. These filters are compatible with all fuel types including gasoline, diesel, methanol, ethanol, and alcohol blends such as E85. High fuel pressures < 150psi can safely be used with negligible pressure drop.

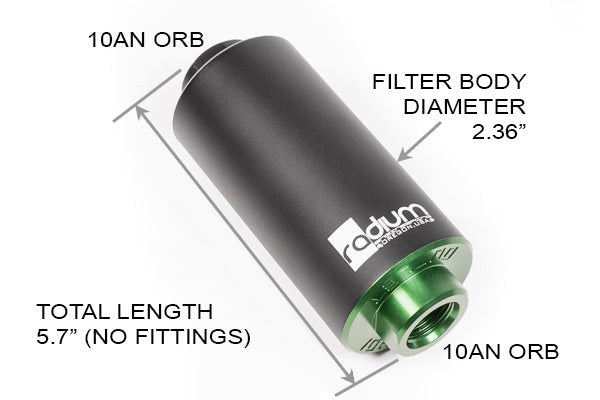

All fuel filter end caps are removable and feature large -10AN ORB female threaded ports for high flow plumbing.

Note: Fittings are not included
