Mishimoto Oil Cooler Kit w/ Black Core 2022-2025 BRZ / 2022-2025 GR86

The Subaru BRZ and Toyota GR86 carry a legacy of drifting, rallying, and carving corners, but the FA24’s stock oil cooling system struggles to keep up during extended hard driving. The factory liquid-to-liquid cooler forces engine coolant to manage both coolant and oil temperatures—an setup that quickly becomes overwhelmed when airflow is limited and heat builds fast.

The Mishimoto performance oil cooler kit solves this by adding a dedicated 19-row external cooler designed solely to manage oil temperature. By removing heat from the oil before it reaches the coolant, the entire system runs more efficiently, especially during long track sessions, hot-lapping, or aggressive street driving. The additional 0.75 quarts of oil capacity further improves cooling stability and lubrication under high load.

A direct-fit bracket positions the cooler front and center in the grille for optimal airflow, while -10AN braided-steel lines and heat-shielding sleeves ensure reliable flow and long-term durability. The kit arrives complete with everything needed for a seamless installation.

For race cars requiring immediate full-flow cooling, this non-thermostatic kit retains the factory cooler for quick heat-up before hammering on track.

Features:

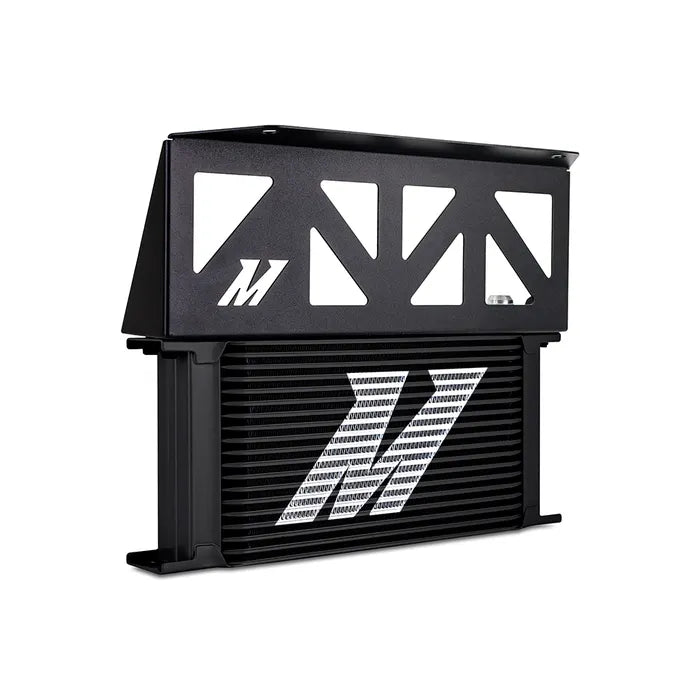

• 19-row external oil cooler delivers major cooling improvements

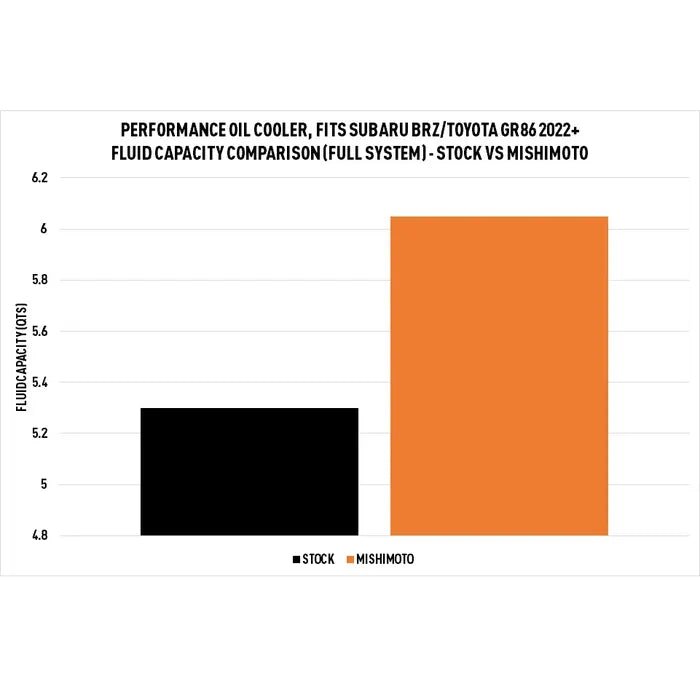

• Adds 0.75 quarts of oil capacity for enhanced thermal stability

• Non-thermostatic option retains stock cooler for quicker warm-up

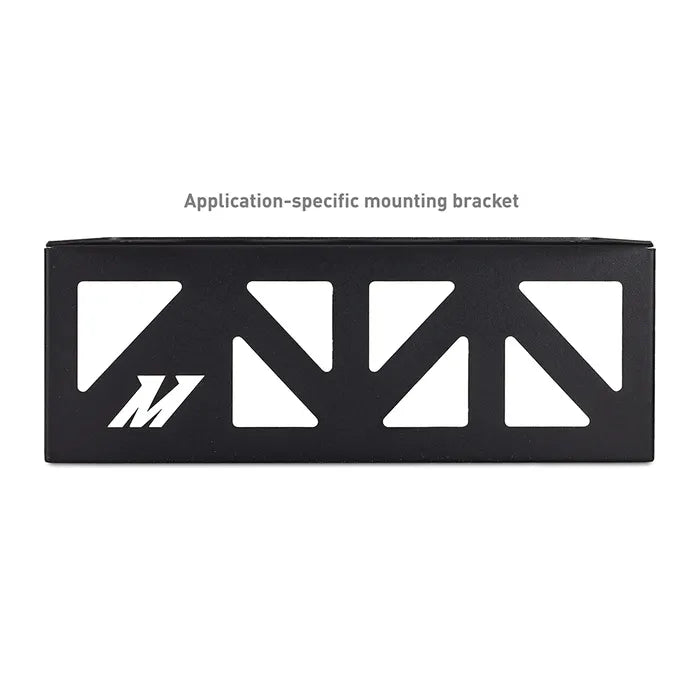

• Steel bracket mounts cooler in grille for optimal airflow

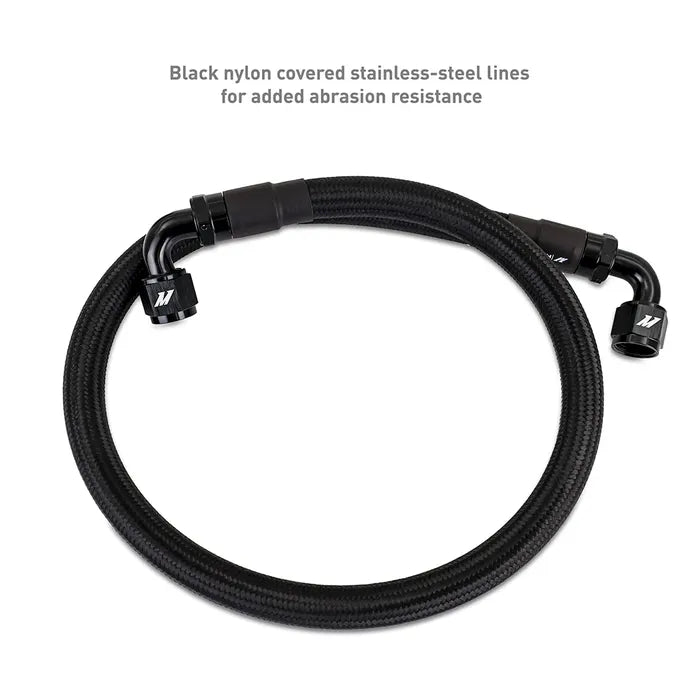

• -10AN braided-steel lines provide reliable flow and durability
• Includes all components required for installation

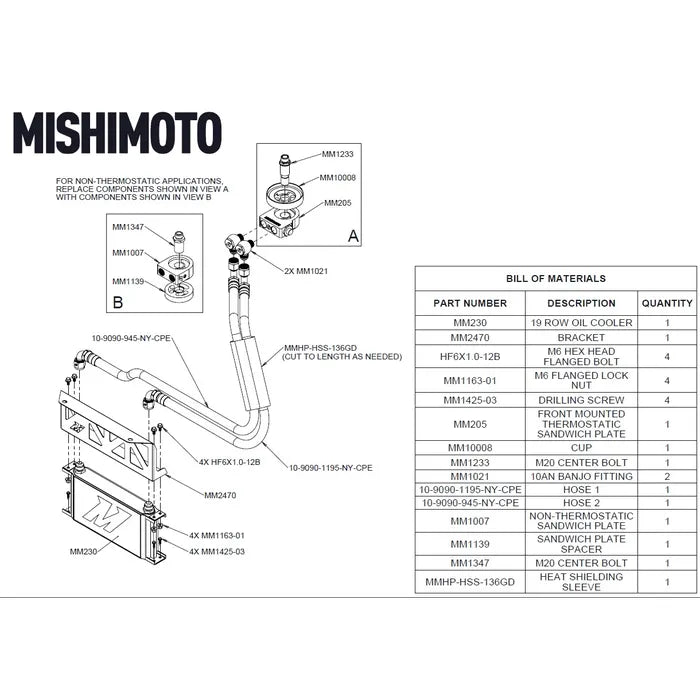

Includes:

• (1) 19-Row Oil Cooler
• (1) Oil Cooler Mounting Bracket
• (1) Mounting Hardware Pack
• (1) Sandwich Plate
• (1) Center bolt
• (2) -10AN Banjo Fittings
• (2) Assembled AN hoses
• (1) Heat Shielding Sleeve

Installation Guide
