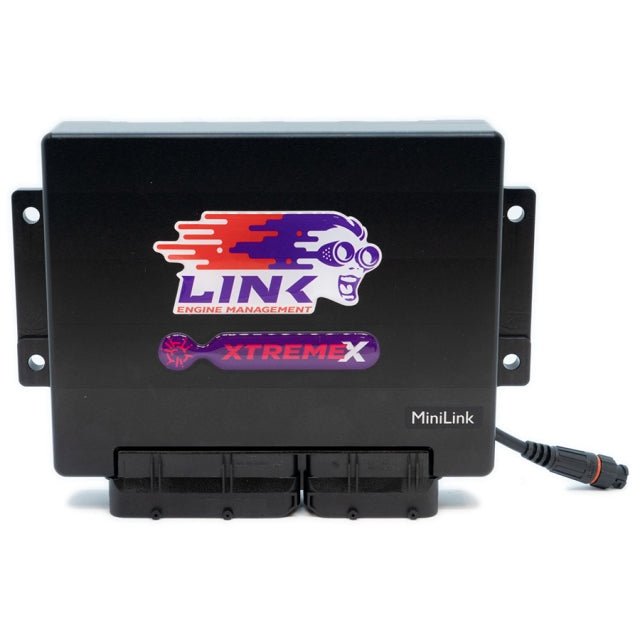

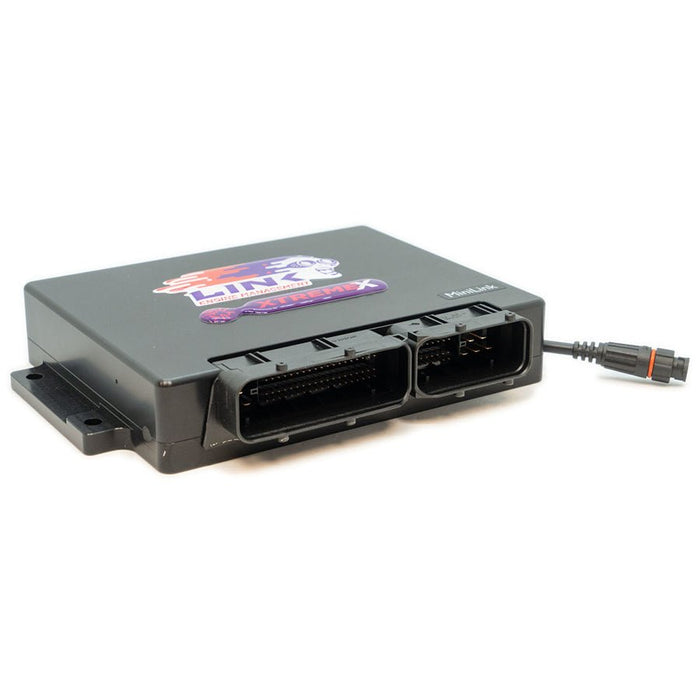

Link PlugIn ECU G4X MiniLink - MINIX - R50-R53 MINI Cooper Hatch w/ 1.6l Tritec SC Engine

The MINIX Automotive Computer Unit is designed for the R50-R53 Tritec 1.6 SC engine w/ Manual Transmission.

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.  LINK ECUs BMW Mini ECU comes in its own case which fits directly into the factory location. Installation of the processing unit is a breeze, with no alteration of the factory wiring loom required for the models listed below.

• Please check your pinoutconnector matches the header in the listed photo before purchasing.
• This ECU works for manual transmissions only.
• An XS Loom and 4 Bar Map Sensor highly recommended (sold separately).
• Most factory features are supported.
• Check the features tab for I/O expansion options.

Suitable applications:

• R50 –R53 MINI Hatch with the 1.6l SC engine

Note: Chronopack dash option not currently supported

G4X PlugIn Key Features (where applicable):

• Up to 6D fuel and ignition mapping
• Precision closed loop cam control (four cam, independent control)
• Sequential fuel delivery
• Digital triggering, all OEM patterns
• OEM idle hardware supported
• 5D boost control with three switchable tables
• Motorsport features - antilag, launch, flat shift
• Continuous barometric correction (on board)
• CAN port
• QuickTune - automated fuel tuning
• Individual cylinder correction

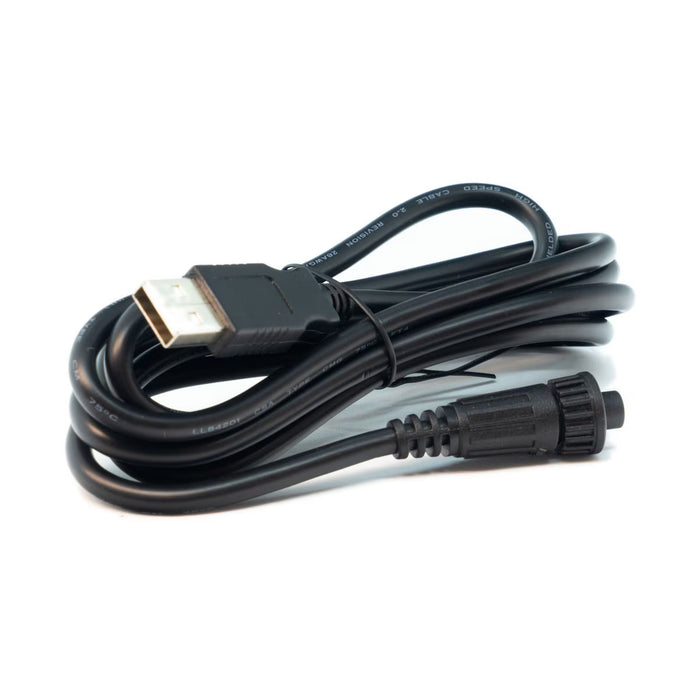

• USB tuning cable included
• Stats recording into on-board memory
• Gear compensations for spark, boost and fuel
• Real time selectable dual fuel, ignition and boost maps
• Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
• Boost control referenced to gear, speed or throttle position
• 512 mega bytes data processor logging memory
• Staged injection
• Knock with "windowing"

The following expansion connector inputs/outputs are provided:

• Aux1                 Auxiliary Output
• DI8                 Digital Input
• DI9                Digital Input
• An Temp 3        Temperature sensor input
• An Temp 4        Temperature sensor input
• An Volt 10        Analog 0-5V input
• An Volt 11        Analog 0-5V input
• +5V Out        Low Current +5V Supply
• GND                 Sensor Ground Only
