Brand new UI for 2018! The award-winning DashLink software has been redesigned from the ground up to provide a clean new look, simplified user interface, and blazing fast speed. All of the features you love about the original now further optimized - and best of all, this upgrade is free for all new and existing DashLink users!
Create a virtual dashboard for your vehicle using the completely redesigned AutoMeter DashLink app. Easy OBDII plug and play installation make for the fastest performance gauge installation available. DashLink enables you to take advantage of AutoMeter’s years of instrumentation and data acquisition expertise to transform your Apple iOS or Android-enabled device into a customizable display and monitoring system. AutoMeter DashLink puts you in control - Monitor and data log engine and vehicle performance, fuel economy, and instantly read and clear troublesome check engine lights, all with the easy to use plug-n-play functionality of the DashLink system.
The AutoMeter DashLink is the most accurate, easiest to use vehicle display solution in the market!
Features:

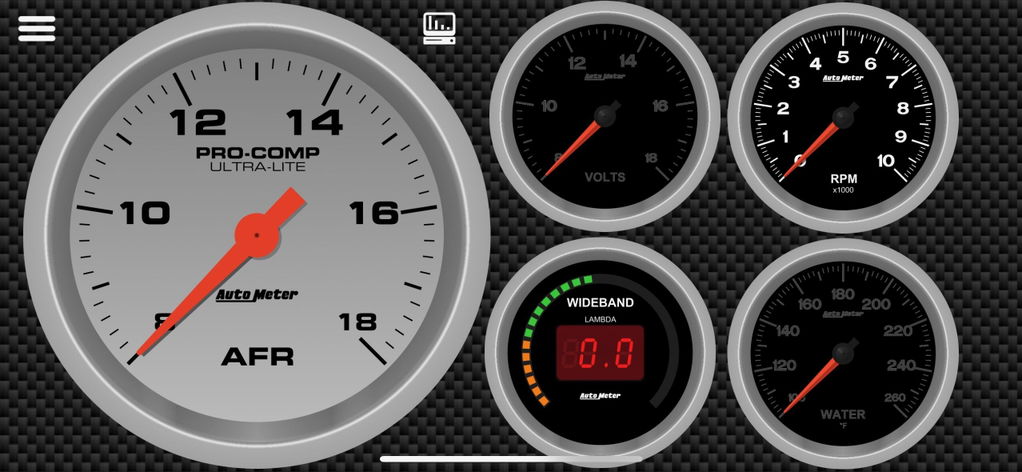

Display - Feature the gauges you want, where you want them on your favorite iOS or Android device
Data Log - Record and playback log files showing OBD-II and acceleration data
Peak Recall - Help keep your eyes on the road or track by using the built-in recall to view the maximum values at your convenience
Skid Pad - Show lateral and accel/braking G's with min/max indicators
Rainbow Track Map - Visualize your location, acceleration, and braking as you drive laps around the track. Compare different laps to see how acceleration and braking changed from lap to lap
Inclinometer - Monitor the pitch and roll of your vehicle for off-road use
Support for OBD-II diagnostics - Read and clear diagnostic trouble codes (DTCs)
Averages - Determine average fuel consumption, average vehicle speed, average boost pressure, or any other parameter monitored
Trip Computer - Maintains stats for up to 5 trips
Performance and Drivetrain:
Engine Speed
Vehicle Speed
Estimated HP and Torque
Engine Coolant Temp
Manifold Absolute Pressure
Lambda/Wideband (AFR)
Fuel Pressure
Ignition Timing
Intake Air Temp
Ambient Air Temp
Mass Airflow
Fuel Trim - Short and Long Term
Engine Load
Catalyst Temp
0-60 MPH
60-0 MPH
1/8, 1/4, 1/2, and 1 Mile Times
Accelerometer (Pitch, Roll, Forward, and Lateral)
Fuel Economy:
Instant Fuel Economy
Average Fuel Economy
Distance Traveled
Distance/Time to Empty
Fuel Level
Distance Travelled
Fuel Consumed
Elapsed Drive Time
Average CO2 Emission Rate
Total CO2 Emission
Number of Fill-Ups
Average Fuel Flow
Average Speed
Idle time
Emissions:
Read and Clear Diagnostic Trouble Codes
Monitor Readiness Status
Loop Status
O2 Sensor Voltage
*Parameters available are dependant on vehicle year/make/model/trim. Not every vehicle will have all parameters available in the OBDII data. Enhanced manufacturer specific data is available for select vehicles through In-App purchase. **SEMA Show Award Winner for best mobile electronics product. Four-time SEMA Global Media Award winner.
DashLink is compatible Apple iOS and Android smartphone or tablet mobile devices (not included). Made for: Apple iPhone® X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone SE, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPhone 5s, iPhone 5c, iPhone 5, iPad® (2017), iPad Pro® (9.7 inch), iPad Pro (12.9 inch), iPad Air™ 2, iPad mini™ 4, iPad mini 3, iPad Air, iPad mini 2, iPad mini, iPad® (4th Gen), iPod Touch® (5th and 6th Gen). DashLink is compatible Android devices running operating system 4.0 or later.
DashLink supports all OBDII and EOBD compliant vehicles sold worldwide and all OBDII protocols: SAE-J1850 (PWM and VPW), ISO-9141, ISO-14230 (KWP2000), and ISO-15765 (CAN). Please verify that your vehicle is OBD-II/EOBD compliant before purchasing!
I wanted to get a tool to monitor my AFR and Wide Band Lambda values without spending 800 bucks on a Cobb. After installing the ETS Intercooler, Charge Pipe, Intake, Turbosmart Plumb Back Diverter, etc.....I started to worry about running to lean. This tool is so painfully simple to use. Plug it in to the diag port, install and open the app. Poof, it connects. There are full logs that can be exported into Excel and a crazy range of gauge customizations. Happy to see my AFR is 14.5:1 to 14.8:1 on average with a Lambda value holding tight around 1. I could not be happier.
Charles,
It is great to hear that the Autometer OBD-II Wireless Data Module helped you monitor your AFR and Lambda values. It's an affordable alternative to other monitoring tools and provides useful information for maintaining the health of your engine. Furthermore, it is also good to know that the app is user-friendly and provides extensive gauge customization options. Thanks for sharing your 5 Star Review!
