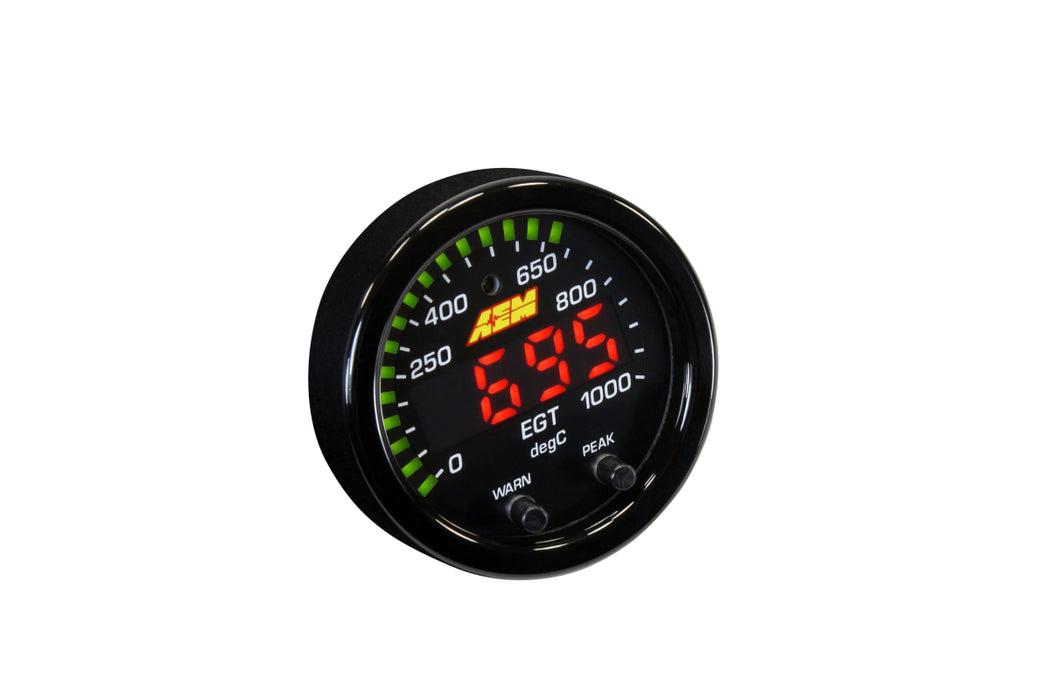

AEM X-Series EGT Exhaust Gas Temperature Gauge 52mm

The AEM 30-0305 X-Series EGT Gauge delivers highly accurate exhaust gas temperature readings while combining a sleek, modern digital interface with unmatched readability and advanced functionality—perfect for high-performance vehicles.

Features:

• Highly Readable Display: Bright center LED display is 87% larger than previous AEM gauges, with a sweeping green LED “needle” for quick visual reference. Overall gauge face is increased 33% for easier viewing at a glance.
• Compact Mounting: Standard 2-1/16" (52mm) housing fits in most gauge pods. Ultra-slim depth of 0.825" (cup depth 0.200") allows flexible mounting locations.
• Customizable Interface: Two faceplate buttons provide programmable peak/recall, center LED readout in Fahrenheit or Celsius, and user-selectable threshold warnings.
• AEMnet CANbus Ready: Enables daisy-chaining with Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or other EMS/loggers that accept AEMnet.
• 0-5V Analog Output: For integration with data loggers or engine management systems.
• Optional Accessories: Silver bezel and reversible white faceplate available separately (PN 30-0305-ACC).
• Auto-Dimming Sensor: Adjusts display brightness for optimal readability in all lighting conditions.
• Secure Connection: Positive locking connectors ensure reliability under extreme conditions.

Specifications:

• Temperature Range: 0–1800°F / 0–1000°C
• Gauge Diameter: 2-1/16" (52mm)
• Overall Depth: 0.825" (cup depth 0.200")
