Subaru Torque Specs Every DIY Owner Should Know

Why Torque Specs Matter on Your Subaru

Every bolt on your Subaru is engineered to be tightened to a specific value for a reason. Torque specs aren't suggestions—they're the difference between a reliable build and a roadside breakdown. This is especially true on Subaru's horizontally opposed boxer engines, where gravity, heat cycles, and vibration all work against improperly fastened components.

What Happens When You Get It Wrong

Over-torquing a fastener can stretch or snap the bolt, strip threads in soft aluminum castings (which Subaru uses extensively), or crush gaskets beyond their sealing capability. Under-torquing is equally dangerous—loose bolts allow components to shift, gaskets to leak, and in severe cases, parts to separate entirely under load.

The EJ25 engine is a perfect example. Its notorious head gasket failures aren't always caused by a design flaw—improper torque on the head bolts during reassembly is one of the most common reasons a fresh head gasket job fails prematurely. The boxer layout means each cylinder head hangs horizontally off the block, and gravity is constantly trying to pull things apart. Proper clamping force is the only thing keeping combustion pressure where it belongs.

Torque-to-Yield (TTY) vs. Reusable Fasteners

Not all bolts are created equal, and understanding the difference between torque-to-yield (TTY) and standard reusable fasteners is critical for DIY Subaru work:

• TTY bolts are designed to stretch into their plastic deformation zone during installation, providing extremely precise and even clamping force. Once used, they cannot be reused—they've already been permanently deformed. Subaru uses TTY bolts on cylinder head bolts across EJ and FA engines.
• Reusable fasteners are tightened within their elastic range and can be removed and reinstalled to spec. Most accessory bolts, exhaust hardware, and suspension fasteners fall into this category.

Why Boxer Engines Demand Extra Attention

Subaru's flat/boxer engine configuration presents unique challenges compared to inline or V-type engines. Oil and coolant passages run horizontally, meaning even a minor gasket seep caused by uneven torque can go unnoticed until it becomes a major leak. The symmetrical layout also means you're often working at awkward angles, making it tempting to "feel" when a bolt is tight enough. Resist that urge—always use a calibrated torque wrench.

Essential Engine Torque Specs (EJ & FA/FB Platforms)

These are the fastener specs you'll encounter most often during routine maintenance and bolt-on modifications. We've organized them by engine family so you can quickly find what applies to your platform. Always confirm against your specific model year's factory service manual (FSM), as values can vary slightly between revisions.

EJ25 Engine Family (EJ253, EJ255, EJ257)

Found in the 2002–2014 WRX, 2004–2021 STI, 2006–2014 Forester XT, and many naturally aspirated Legacy, Outback, and Impreza models, the EJ25 is the engine most DIY Subaru owners will work on.

FA20 Engine (2015–2021 WRX, 2013+ BRZ)

The FA20 introduced direct injection to the WRX lineup and powers the BRZ/86 in naturally aspirated form. Many specs are similar to the EJ but there are key differences.

FA24 Engine (2022+ WRX)

Subaru's newest turbocharged boxer brought a displacement bump to 2.4 liters. Most routine maintenance specs carry over from the FA20, but always verify against the VB-chassis FSM.

FB20 / FB25 Engine (Impreza, Crosstrek, Forester, Outback)

Subaru's naturally aspirated FB-series engines power the majority of their lineup. These are the specs you'll hit during oil changes, plug swaps, and basic intake work.

Drivetrain & Suspension Torque Specs

Beyond the engine, your Subaru's drivetrain and suspension fasteners are just as critical—and arguably more dangerous to get wrong. A loose axle nut or over-torqued lug stud can lead to wheel separation, brake failure, or catastrophic drivetrain damage. These are the specs you'll need for brake jobs, wheel swaps, suspension upgrades, and fluid changes.

Wheels & Brakes

Suspension

Whether you're installing coilovers, replacing worn bushings, or fitting upgraded endlinks, these are the specs you'll encounter most.

Drivetrain & Fluid Plugs

Fluid changes and drivetrain bushing upgrades are some of the most rewarding DIY jobs on a Subaru. Getting the drain and fill plugs right prevents leaks and stripped cases.

Tools & Best Practices for Accurate Torque

Having the right torque specs is only half the equation. Without proper tools and technique, you're still guessing. This section covers the tools that make Subaru maintenance precise, safe, and efficient—plus the habits that separate clean builds from comeback repairs.

Essential Torque Tools

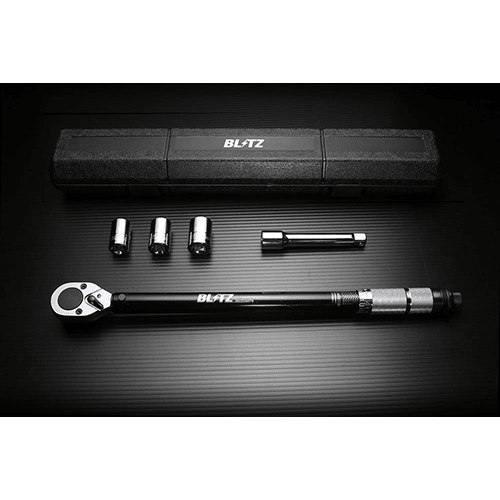

At minimum, every Subaru DIY mechanic needs two torque wrenches:

• Inch-pound torque wrench (in-lbs): Required for low-torque fasteners like valve cover bolts (50–85 in-lbs range). A standard ft-lb wrench simply can't read accurately at these values.
• Foot-pound torque wrench (ft-lbs): Covers the majority of your work—lug nuts, axle nuts, suspension bolts, and engine fasteners. A ¼-inch and ½-inch drive set covers most Subaru applications.

Subaru-Specific Specialty Tools

Subaru's boxer engine layout and unique fastener designs mean generic tools sometimes don't cut it. Purpose-built Subaru tools save time, prevent damage, and pay for themselves after a single use.

Engine Tools

• Torque Solution Camlock Tool (EJ Turbo) — Locks the left-side intake and exhaust cams in place during timing belt changes. Eliminates the risk of the cams rotating and jumping timing.
• Torque Solution Crank Pulley Tool — Holds the crank pulley secure for removal and installation. Covers EJ and FA motors and replaces multiple factory tools.
• Company23 Flywheel Locker — Locks the flywheel in place for clutch and flywheel bolt removal and installation. Ensures accurate torque on flywheel bolts without the flywheel spinning—no more jamming screwdrivers into gear teeth.
• Torque Solution Valve Spring Compressor (EJ) — Allows safe valve spring, seal, and retainer replacement with the head on the bench or on the engine.
• Company23 FA/FB Valve Spring Compressor — Same concept engineered specifically for FA and FB engines. Officially approved for GSC Power Division springs.

Seal Installation Tools

Hammering seals into place is a recipe for leaks. These precision-machined installers ensure flush, damage-free seal installation every time.

• Torque Solution Rear Main Seal Tool (EJ) — CNC billet aluminum installer that presses the rear main seal perfectly flush using the crankshaft bolt holes. No hammering required.
• Torque Solution Cam Seal Tool (EJ DOHC) — Seats cam seals flush without damage. Essential during timing belt service or head rebuilds.
• Torque Solution Oil Pump Seal Tool (EJ) — Presses the oil pump seal onto the crank snout perfectly using the OEM crank bolt.
• Torque Solution Axle Seal / Transmission Output Shaft Seal Tool — Delrin polymer installer for transmission seals on 5-speed and 6-speed Subaru transmissions (2005+).

Cam Sprocket & Specialty Socket Tools

• Torque Solution STD Intake/Exhaust Cam Sprocket Tool — Holds cam gears for safe removal across a wide range of EJ applications.
• Torque Solution Dual AVCS Exhaust Cam Sprocket Tool (2008–2021 STI) — Purpose-built for the STI's dual-AVCS exhaust cam gears.
• Torque Solution SOHC Cam Sprocket Tool — For naturally aspirated SOHC EJ engines found in Imprezas, Foresters, Legacys, and Outbacks.
• Torque Solution Phase 1 Cam Sprocket Tool — Covers early-model DOHC and turbo EJ engines (1996–1998).
• Torque Solution AVCS Cam Gear Security Socket — 5-sided security star bit for disassembling AVCS cam gears to clean internal oil passages—critical after a spun bearing event.
• Torque Solution T70 Torx Drain Plug Socket — Fits the T70 Torx transmission drain plugs on manual WRX, STI, and other Subaru models.
• Torque Solution Differential Drain Socket (13mm Square) — Precision 13mm square socket for differential cover plugs. Eliminates the stripping risk of using the wrong tool.

Maintenance & Diagnostic Tools

• Torque Solution Pro Billet Spark Plug Gap Tool — CNC billet aluminum with a large knurled knob for precise, repeatable gapping. Available in 12mm and 14mm sizes, with optional feeler gauge kits.
• Torque Solution Boost Leak Tester (3.0") — CNC billet tester that uses compressed air to find boost leaks. Even small leaks rob power and strain your turbo—this tool pays for itself on the first use.
• Torque Solution Fuel Line Disconnect Tool — Custom-molded for Subaru quick-disconnect fuel fittings (2005+). Prevents seal damage that standard disconnect tools can cause.
• Torque Solution Intake Port Cover Kit (EJ) — Billet aluminum plates that seal intake ports during engine service. No more stuffing rags or tape that can fall in and destroy your engine.
• Torque Solution 10mm Keychain Ratcheting Wrench — Because no one has ever had enough 10mm sockets.

Torque Technique Best Practices

1. Clean the threads first. Dirty or corroded threads create false torque readings. Wire-brush bolts and chase threads in aluminum with a tap if needed.
2. Use the right lubricant—or none. Factory torque specs assume clean, dry threads unless otherwise noted. If specs call for oil-coated threads (common on head bolts), apply a thin coat of engine oil. Using anti-seize when the spec assumes dry threads can lead to over-clamping.
3. Tighten in stages. For multi-bolt patterns (heads, manifolds, flywheels), bring all bolts to 50% torque first, then 75%, then final spec. This ensures even clamping and prevents warping.
4. Follow the pattern. Cross-pattern (star pattern) tightening is mandatory for heads, manifolds, wheels, and flywheels. Tightening in a circle creates uneven load distribution.
5. Know your TTY bolts. Torque-to-yield (TTY) bolts—like cylinder head bolts—are designed to stretch once and cannot be reused. They follow a multi-step process: initial torque, then angle turns. Always replace them.
6. Calibrate your wrench. Torque wrenches lose accuracy over time. Have yours calibrated annually, or at minimum, store it at its lowest setting to preserve spring tension.
7. Re-torque after heat cycles. Exhaust components, turbo hardware, and intake manifolds should be re-checked after the first few heat cycles. Thermal expansion can loosen fasteners that were perfect during the initial install.

Final Thoughts

Torque specs aren't suggestions—they're the difference between a build that lasts and one that leaves you stranded. Whether you're swapping spark plugs on a Saturday morning or torquing down head bolts on a fully built EJ257, the numbers matter every single time.

Keep a reference sheet in your garage for the fasteners you touch most. Invest in a quality torque wrench (or two), pick up the Subaru-specific tools that make precision work possible, and never skip the final pass with a calibrated wrench. Your engine, your suspension, and your safety depend on it.

If you're planning a build or tackling maintenance on your Subaru, browse our full catalog for the parts, tools, and hardware you need to do the job right. Have questions about a specific torque spec or tool for your platform? Our team is always here to help.

Build it right. Torque it right. Drive with confidence.
