How to Pick the Right HEL Performance Stainless Steel Lines for Your Subaru Build

Why Upgrade to Stainless Steel Lines?

Every Subaru rolls off the line with rubber brake and clutch hoses. They work fine when new, but over time heat cycles, UV exposure, and moisture cause rubber to swell, crack, and lose integrity. The result? A soft, spongy pedal that robs you of confidence — especially under hard braking or aggressive driving.

Rubber lines expand under hydraulic pressure. That expansion absorbs force that should be going directly to your calipers or clutch slave cylinder. It's energy wasted, and you feel it as vague, inconsistent pedal feedback. On a spirited backroad run or at the track, that mushiness can mean the difference between hitting your braking point and sailing past it.

What Stainless Steel Braided Lines Solve

• Firmer pedal feel — Braided stainless steel resists expansion under pressure, delivering more direct, linear feedback to your foot.
• Consistent performance under heat — Rubber degrades faster when exposed to repeated heat cycles. Stainless steel braided construction holds up far longer in demanding conditions.
• Longer service life — Factory rubber lines are generally recommended for replacement every 4-6 years. Quality braided lines outlast rubber significantly while maintaining performance.
• Corrosion and abrasion resistance — A braided stainless outer layer protects the inner PTFE core from road debris, salt, and general wear.

What Makes HEL Performance Different

Not all braided lines are created equal. HEL Performance has built a reputation in motorsport and street applications worldwide by engineering every line in-house from start to finish. That vertical integration means tighter quality control and a product you can trust when it matters most.

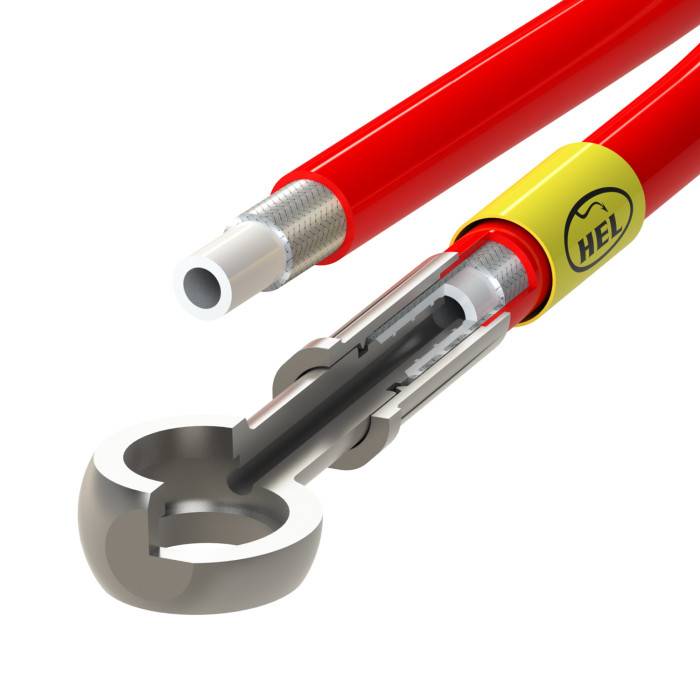

3-Layer Construction

Every HEL line starts with a smooth-bore PTFE (Teflon) inner core that provides excellent chemical resistance and minimal friction for consistent fluid flow. That core is wrapped in a stainless steel braided outer layer that virtually eliminates expansion under pressure — this is where the firm pedal feel comes from. Finally, a clear PVC protective coating covers the braid, preventing it from rubbing against painted surfaces and protecting the steel from corrosion over time.

Multi-Groove Fitting Design

HEL's proprietary fittings feature a multi-groove profile machined into the barb. When the ferrule is swaged over the hose, those grooves lock the PTFE core mechanically in place. This is a permanent, factory-level crimp — not a reusable compression fitting that can loosen over time. The result is a leak-free connection rated well beyond anything you'll encounter on the street or track.

Everything You Need in the Box

Each HEL kit is application-specific and comes complete with pre-made hoses cut to the correct length, banjo bolts or fittings matched to your platform, copper crush washers, mounting hardware, and an installation leaflet. There's no guesswork and no hunting for extra parts.

Brake Lines, Clutch Lines & AVCS Lines — Which Ones Does Your Build Need?

HEL Performance makes three distinct categories of stainless steel lines for Subaru platforms, and each one serves a different purpose in your build. Here's how to figure out what you need.

Brake Line Kits

This is the most common upgrade and the one that benefits every driver. A full brake line kit replaces all four rubber hoses running from the hard line to each caliper. The improvement in pedal firmness and modulation is immediately noticeable — even in a parking lot test drive.

When selecting a brake line kit, pay attention to your caliper type. Many Subaru models came with different brake packages depending on trim level:

• STI models — Brembo calipers front and rear require STI-specific kits with the correct banjo bolt sizing and line routing.
• WRX models — Standard steel calipers use a different fitting than Brembo-equipped cars. Make sure you're selecting the non-Brembo kit unless you've swapped brakes.
• Rear disc vs. rear drum — Some older Imprezas, Foresters, and Outbacks came with rear drum brakes. HEL offers kits that account for this, so confirm your rear brake setup before ordering.

Clutch Lines

If you drive a manual-transmission WRX or STI, upgrading the clutch line is a fantastic complement to brake lines. The factory rubber clutch hose suffers from the same expansion issues, leading to a vague, inconsistent clutch engagement point. A stainless steel clutch line firms up the pedal and gives you more precise control over engagement — especially valuable if you've upgraded to an aftermarket clutch with a heavier pressure plate.

AVCS Lines

This one is more niche but critical for certain builds. The AVCS (Active Valve Control System) lines feed oil pressure to Subaru's variable valve timing solenoids. On high-mileage EJ engines, the factory rubber AVCS lines can deteriorate and leak, causing oil seepage and potentially affecting cam timing performance. HEL's stainless steel AVCS lines eliminate that weak point with the same durable construction used in their brake and clutch kits.

If you're refreshing a high-mileage EJ255 or EJ257 engine bay — or building a reliable track car — replacing the AVCS lines is cheap insurance against oil leaks and cam timing faults.

Quick Reference: What Does Your Build Need?

Final Thoughts

Stainless steel braided lines are one of those upgrades that punch well above their price tag. Whether you're daily driving, building for the track, or just refreshing an aging engine bay, HEL Performance lines deliver immediate improvements in feel, consistency, and peace of mind — all backed by motorsport-proven engineering.

Start with brake lines for the biggest impact, add a clutch line if you're running a manual, and don't overlook AVCS lines if your EJ is racking up miles. It's a simple install, everything comes in the box, and you'll wonder why you didn't do it sooner.
