Engine Management on a Subaru WRX and STI

What Engine Management Does

The stock ECU calculates hundreds of variables every second, and each one depends on an input staying inside an expected window. Parts that stay inside that window run fine. Parts that step outside it get pulled back. That pull is why a new exhaust can feel strong for a while and then fade. The computer is doing what it was built to do: return the engine to the factory result.

A tune rewrites that result. It can add power, and the quieter gains are real too: less soot in the tailpipe, a smoother pull through the rev range, and better mileage. The thread gives no miles-per-gallon figure and no horsepower figure for a stock reflash. Owners said a bone-stock WRX picks up power from a stage 1 file, and they left it at the name.

The first decision is the tuner, not the box. A custom map beats a plug-and-play file or a generic stage file, and the person who has to support the car should be the person who picks the tool. If there is no tuner nearby, that fact chooses the tool for you. It does not make a random stage file a custom tune.

What the Factory Left on the Table

Factory maps are written with margin. That margin is safety, and it is also room the manufacturer can spend later, sometimes with extra parts, so a newer car can be advertised with more power. An aftermarket file spends some of that margin on the car you have. An off-the-shelf file cannot spend all of it. It still has to be safe for a hot tank of 91 octane, for Denver’s altitude, and for cold air on 93 octane. The horsepower between those conditions is what a custom tune is for.

Which Subarus Need It

Every Subaru in this discussion can use a tune. One group is described as requiring it. For 2004 and later, the tighter ECU rules allowed a manufacturer to leave one model out. Subaru left the STI out. The restriction that matters on the other turbo cars is the handoff from open-loop fueling to closed-loop fueling. In that gap a 2004 and later turbo, other than an STI, can run lean. Lean is how this FAQ describes the path to detonation, and detonation is the failure it names first when pistons break.

In stock form those cars are fine. The problem shows up when the parts move airflow. Exhaust work is the line the FAQ draws, and anything past an exhaust draws it harder. You can drive certain parts for a short time while the tune is being scheduled. That wait is not a plan, and it is not permission to treat bolt-ons as finished on a 2004 and later turbo that is not an STI.

The 2002 and 2003 WRX still has the open-loop delay. Owners described it as the same problem, less severe. A careful driver can run a manual boost controller on those cars and on a 2004 and later STI. A boost controller is not engine management. Neither is an air-fuel controller that only shifts a signal. On a 2004 and later turbo that is not an STI, those devices leave the lean handoff in place. People use them to spend less, because they are new, or because they already have a real tune and want another knob. The knob does not replace the tune.

STI, Stock Cars, and Later Engines

The STI exception is about that 2004 fueling rule. It is not a claim that an STI never needs a tune. Any of these cars will trim a modification back once the new airflow leaves the window the ECU expects. An STI downpipe still changes the engine the map was written for. It just does not trip the same “required” line the FAQ draws for the other 2004 and later turbos.

A stock 2004 and later turbo is fine on the factory file. One owner of a stock 2009 WRX asked if they needed a tune simply to stay safe, and the FAQ’s line is the answer: stock is fine, and parts are the trigger. A different owner said a generic map is worth buying before any parts, especially on a 2004 or 2005, and that a custom tune is a poor buy while the car is still stock and more parts are coming. A generic file is the placeholder. The custom file is what you buy when the parts list stops moving.

The open-loop account above is the FAQ’s account of the EJ turbo cars people were flashing. The thread later includes questions about a 2011 WRX, a 2011 STI, and a 2013 WRX, and it never rewrites the hardware notes for those cars, or for a direct-injected FA. A later turbo Subaru still needs a tune when parts move air and fuel. The cable-throttle notes, the VIN notes, and the one-piece 2006 downpipe do not transfer to an engine this thread does not describe.

Five Kinds of Engine Management

The FAQ sorts the hardware into five jobs. The names on the boxes changed over the life of the thread. The jobs did not. Pick the row for how often the parts will change and whether you, or a tuner, will be the one editing the file.

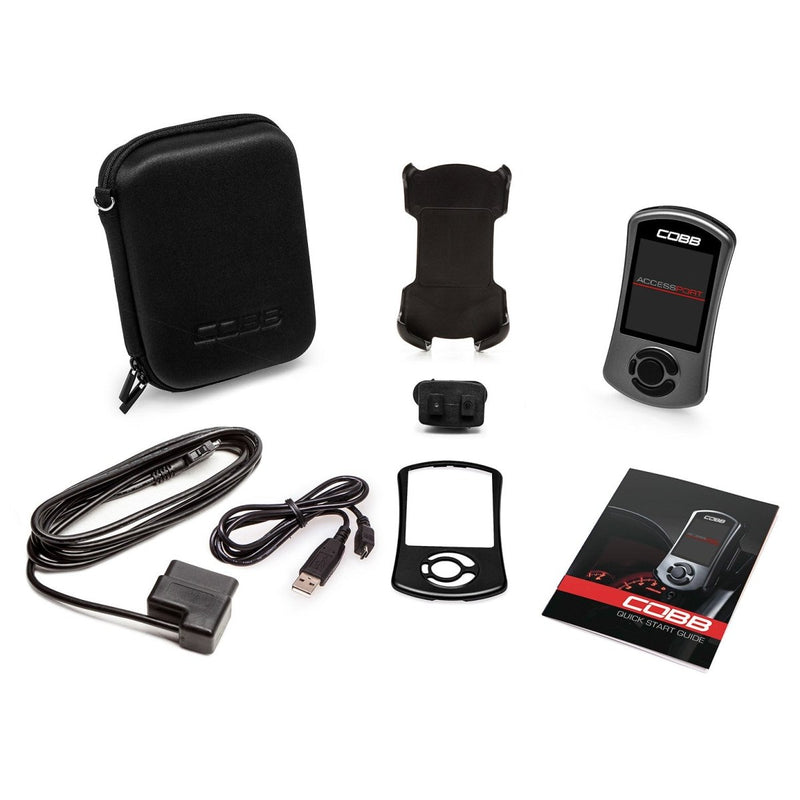

Off-the-shelf reflashes in the FAQ are a Cobb AccessPort and an EcuTek file, including the Prodrive and Vishnu reflashes of that era. Custom reflashes are Cobb StreetTUNER, Cobb ProTuner, an EcuTek tune, and EcuTek DeltaDash for the owner who wants to edit live. Piggybacks named there are Unichip, Xede, and UTEC. Standalones named there are MoTeC, Hydra, and AEM. Open source named there is RomRaider, formerly Enginuity, and EcuFlash.

Those names are the FAQ’s examples, not a current shopping list. A remote custom map, in the same FAQ, is a parts list sent to a tuner, a file loaded at home, a log sent back, and a revision. That is closer than a national stage file and short of a dyno session with the tuner in the room.

Off-the-Shelf or a Custom Tune

An off-the-shelf reflash fits an owner who wants to load a file and stop, who lives where there is no tuner, who does not want to learn the software, or who will add parts once and quit. It is not frozen forever. The same platforms can be custom tuned later, and some EcuTek tuners already had a file for a specific parts list because they had tuned that list before.

A custom reflash fits the opposite owner: parts will keep changing, they can tune or they live near someone who can, and they want the power that a national safety margin is holding back. Most of that power shows up quickly. A competent tuner reaches about 90 to 95 percent of what that setup can make in one to two hours. That window stops short of the last of the power.

The box that makes the most power is the one the tuner already knows how to use. A comprehensive standalone is a poor trade if that tuner is faster and safer on a reflash they already understand. The FAQ prices the difference at $200 an hour while they learn the new system, plus dyno time. For your own tuning, match the software to the skills you actually have. Guessing on a powerful interface is how a file goes lean.

Two methods in the thread both make safe power, and they do not look the same on a log. One runs more boost and less timing. The other runs less boost and more timing. The FAQ calls that a simplification of a U.S. approach and a Japanese approach. The point to keep is that a lower boost number is not automatically the safer map, and a higher timing number is not automatically the faster one.

Piggyback, Standalone, and Open Source

Piggyback

A piggyback leaves the stock ECU in charge of part of the engine and takes over the rest. How that split works depends on the unit. The UTEC is the case the thread flagged: it is wired as a piggyback, and it calculates fuel and spark itself instead of only bending the stock ECU’s numbers. Early piggybacks such as the Unichip did the bending, shifting the airflow signal for fuel and the crank signal for timing.

Most piggybacks in the FAQ ship with base maps you can leave in place, the same way you can leave an off-the-shelf reflash in place. When the parts list outgrows that base map, the unit can be tuned. Until then it is a real calibration, not a placeholder.

Standalone

A standalone removes the stock ECU and runs the engine on its own. The FAQ reserves that for advanced users and for power levels that have outgrown the factory computer. The base map in the box is the opposite of a reflash’s base map. It is there so the car can be moved and started. It is not a file you keep.

Later in the thread, owners argued the same line from the other direction. A full replacement computer is more than a bolt-on WRX needs, because the factory ECU already does knock control and closed-loop boost, and a from-scratch tune costs real time. One owner was already running those features on a replacement computer and was happy with it. The FAQ’s rule still sorts the argument: buy the standalone when the stock ECU cannot do the job, or when the tuner’s best work is on that box.

Open Source

Open source is a cable, a laptop, and software that reflashes the stock ECU. It can load a staged file and stop, or it can be the tool a shop uses for a full custom tune. The FAQ splits the people it suits.

• You are editing it. You already understand the factory ECU, or you are willing to learn, and you want to keep changing the file as the parts change.
• A shop is editing it. You want a professional tune without the license fee of a commercial tool. The FAQ says a good open-source tune can be as capable as a commercial one.
• You want the cheap file. A free or low-cost map from another user is a way in. You still log it, with RomRaider in the FAQ’s example, and you still confirm it fits your car.

It is a bad choice when you want the closest thing to load-and-leave, or when you do not want to learn the software. Handing that job to a shop is a different decision from doing it yourself.

When the Map No Longer Fits

The most common reason an off-the-shelf file misses its advertised power is that the car does not have the parts the file was written for. If the file says full turbo-back and the car has a downpipe and a cat-back, the shortfall belongs to the parts list. Extra parts cause the same class of problem. A file written for a turbo-back does not become a better file because the car also has headers, an uppipe, and a larger intercooler. It becomes a file for a different engine.

On a 2006 and later WRX the downpipe and the midpipe are one piece. A full turbo-back on that car is that pipe plus a cat-back. One 2007 WRX ran a stage 2 file for a year on a catted downpipe and the stock cat-back because that combination met the minimum the map publisher required. That is one car, not a rule that the stock muffler is always enough.

Intakes are the same test. In one exchange, the off-the-shelf maps being discussed were written for a Cobb or SPT intake. Any other intake was a custom tune, or it came off the car. Read the parts list on the file you are about to load. The list is the tune.

Weather, Altitude, and One Overboost Log

A reflashed ECU still uses the stock computer’s learning. Octane, temperature, and humidity move the result. A dyno day that misses the advertised number can be the ECU protecting the engine, not a broken file. It can also be the wrong dyno. A Mustang dyno number and a Dynojet number are not comparable, and two dynos of the same brand still move with the software, the altitude, and the weather.

One 2011 WRX hatch on an off-the-shelf 93-octane stage map showed the other side of that margin. The car had an aftermarket intake, electronic boost control, and a catless turbo-back. In the mountains it boosted to 20.1 psi and, in third gear at 5,500 rpm, threw an overboost code and dropped into limp mode. The check engine light came on, cruise control flashed, and the brake light came on. Feedback knock on that log ran from -1.40 to 0.00 while the dynamic advance multiplier stayed at 1.000. The thread never called that knock reading safe or unsafe. The reply that followed was about air, not about a part: cold, dense air pushes boost above a setting that was fine in summer, if the boost hoses were already sound.

That log is one car. It is useful because it is the FAQ’s Phoenix-to-Boston problem on a single road. A national map leaves power on the table so it can survive both places. When the air is denser than the map expected, the same caution can still overboost, and the ECU’s protection is the code and the limp mode. The fix the thread points at is a map for that air, not a higher tolerance for the code.

A tune does not make a missing catalyst legal. Street-driven cars keep their catalysts. This article does not cover removing one.

Gauges and Dyno Numbers

If you are changing the file yourself, the FAQ’s must-have instruments are a wideband oxygen sensor, an EGT gauge, and a boost gauge. Knock detection and a four-channel EGT are the extras it lists, not the minimum. The wideband is the fuel instrument. One reply in the thread refused the idea of a cheap wideband outright and named an AEM UEGO and an Innovate as the units that person used. That is a preference from one owner, and it is still the right caution: the sensor you tune from is not the place to save the money.

A logging reflash tool can show boost and knock on its own screen. Later in the thread that is exactly how the 2011 WRX’s overboost was caught. The log does not replace a wideband when you are the person editing fuel. The FAQ’s three gauges are for that job. They are not a shopping list for an owner who loaded a finished file and is leaving it alone, except that a turbo car without any way to see boost is guessing at the only number the map is trying to hold.

The thread does not publish target boost, target timing, or an air-fuel ratio. Those numbers belong to the tuner and to the log from the car in front of them. A stage name is not a target.

What a Bad File Does

One 2007 STI in the thread had been tuned by a previous owner, ran lean, cracked a piston, and scored the cylinder. That is one car, and the thread never publishes the file that did it. It lines up with the FAQ’s failure story: lean, then detonation, then a piston. Two dealers told that owner the ECU could be flashed back to stock. The owner had also been told to buy a new ECU. The thread does not decide which answer was right. It does record a separate, shorter fact: dealers do update ECU software, and an update overwrites the tune that was in the car.

Cost, the Dealer, and Warranty

The FAQ’s labor figures are from its 2008 edit. They are not a quote from a shop today. Dyno time is $100 to $150 an hour. The tuner’s own time is $100 to $200 an hour, depending on experience. A typical first session gets the car to about 90 to 95 percent of what that setup can make in one to two hours.

The dollar cells are an example built from the top of the FAQ’s ranges, not a package price. The FAQ lists dyno time and tuner time as two separate rates, so a real quote can include both clocks. The same $200 an hour figure is what the FAQ uses for a tuner learning a system they do not already know, with dyno time on top. That is the expensive way to choose a box.

What the Dealer Can See

A reflash changes the ECU checksum. The 2008 FAQ says the dealer can read that checksum, and that they did not have a database of stock checksums to compare it with, because WRX ECUs already shipped with many revisions. It also says a 2005 and later ECU, and some 2004 ECUs, store the VIN, and that the reflashes of that time changed tables only, so the VIN still reported. The bottom line in the FAQ is the practical one: if you do not want a modification found, do not modify the car.

Warranty follows the same sentence. A dealer software update can replace your file with theirs. Flashing back to a stock-looking map before a visit was the hope in that unanswered 2011 question. This thread never shows that a changed checksum becomes invisible once the original tables are restored.

Emissions Tests

A reflash that leaves the stock ECU in the car can still speak OBD. A standalone that removes the stock ECU may not. One owner who had moved the car to a MoTeC kept the factory ECU and a reflash tool so the registration check could be the OBD test instead of a sniffer test. That is one car’s paperwork path. A tune still does not make a missing catalyst legal. A built engine in an emissions state, later in the thread, raised the same worry about a standalone and looked back at a reflash. The thread never confirms which box passes which state’s test. Ask the shop that does the inspection before you remove the only computer that can talk to it.

The Order to Do It

The order is the part people skip, and it is the part the FAQ repeats. The tuner comes before the hardware. The parts list comes before the file. The log comes before any argument about a dyno sheet.

1. Pick the tuner. Tell them the year, whether it is an STI, the fuel you can actually buy, and how often you expect to add parts. Use the system they already tune well.
2. Match the type to the next two years of parts. Off-the-shelf if the list is frozen and there is no tuner. Custom reflash or a tunable piggyback if the list will grow. Open source if a shop will tune it or you already understand the factory ECU. Standalone if the stock ECU is out of its depth, and do not keep its base map.
3. Install only what the file names. If you are writing the file yourself, have the wideband, the EGT gauge, and a way to see boost before you change a cell.
4. Log the car before you call the power number wrong. Check octane, intake temperature, and altitude against the conditions the file used. A miss can be the ECU pulling timing to save the engine.
5. Retune when air, fuel, or boost hardware changes. On a 2004 and later non-STI turbo, do not use the drive home as the test of an untuned exhaust.
6. Decide what a dealer visit is worth before you flash. The checksum will not match a stock file. A dealer update can erase the tune. The thread’s detection details stop in 2008.

FAQ

Does a stock WRX need engine management?

A stock 2004 and later turbo is fine on the factory file. A stage-style reflash can still add power, and the thread never gives a horsepower figure for it. Buy the custom tune when the parts list settles, not while you already know more parts are coming.

Can I drive an uppipe and downpipe before the tune?

On a 2003 WRX, the thread’s answer was that you can drive that pair for a while. On a 2004 and later turbo that is not an STI, the FAQ tells you not to treat that wait as safe. Schedule the tune with the parts.

Is a boost controller engine management?

No. A careful owner can use a manual boost controller on a 2002–2003 WRX or a 2004 and later STI. It does not fix the open-loop delay on the other 2004 and later turbos, and it does not replace a fuel and timing tune on any of them.

Why is my dyno number under the advertised horsepower?

Check the parts list on the file first. Then stop comparing a different brand of dyno, a different altitude, or a hot day to the number in the ad. The reflashed ECU is still learning, and it will give power back when the octane or the air is worse than the ad assumed.

Can the dealer tell the ECU was reflashed?

The 2008 FAQ says the checksum changes and the dealer can read it, and that they had no list of stock checksums to check it against. A 2011 STI owner asked if that was still true. Nobody answered. If you need the modification to stay invisible, do not modify the car.

Will a dealer visit erase the tune?

A dealer ECU update replaces the program in the car. That includes the tune. Plan on putting the file back after any update, and do not assume the visit will leave it alone.

Do I need a standalone to make more power?

No. The FAQ says a custom tune makes more power than an off-the-shelf file, on whatever tool the tuner actually knows. A standalone is for a high-power or highly modified engine, and the map that comes in the box is only there until that tune happens.

Does this apply to a naturally aspirated Subaru?

The physics does. If the parts move airflow outside what that ECU expects, it trims them back or runs out of authority. The hardware notes in this thread are for the turbo WRX and STI ECUs people were flashing. A naturally aspirated car, a pre-2002 ECU, or a swapped JDM computer needs its own tuner and its own tool. This thread does not name them.
