Wisefab Rear Suspension Rear Drop Knuckle Kit 2013-2025 BRZ / 2022-2025 GR86 / 2013-2016 FR-S / 2017-2020 GT86

$3,500.00
Original price $3,500.00 - Original price $3,500.00
Original price $3,500.00
$3,500.00 - $3,500.00
Current price $3,500.00
Stock Status: Ships Directly From Manufacturer – Delivery Times Vary What does this mean
SKU WF861
by Wisefab
Lease to own Pay as low as $/week

DETAILS

The Subaru BRZ is an excellent car for driving enthusiasts, performing well on both, the streets and on racetrack. If the focus is on performance, the car can improve by lowering the ride height, but this can negatively impact the factory-designed kinematics. The Wisefab suspension kit addresses this issue by restoring the roll center, bump steer, anti-squat, and camber curve to normal levels, resulting in better roll stiffness, handling, and grip.

Features:

  • -7 kg of combined weight saving over original components
    But still maintaining required strength and stiffness

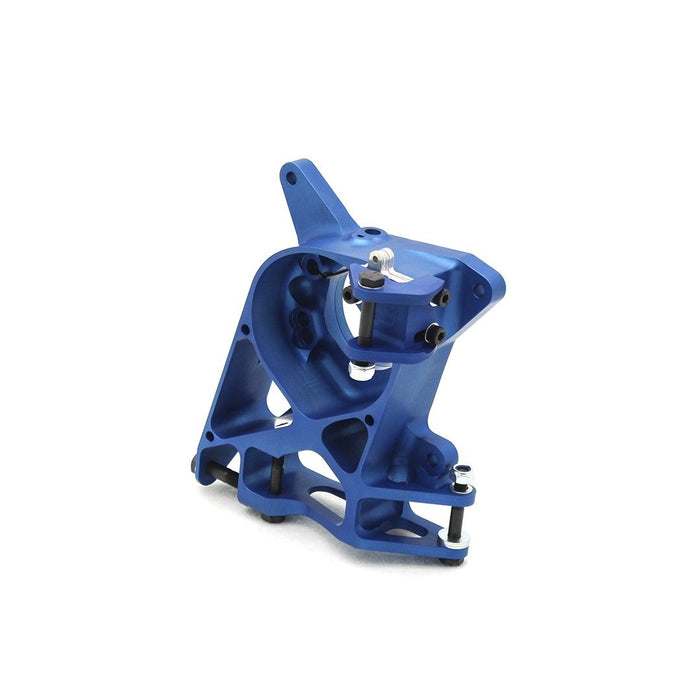

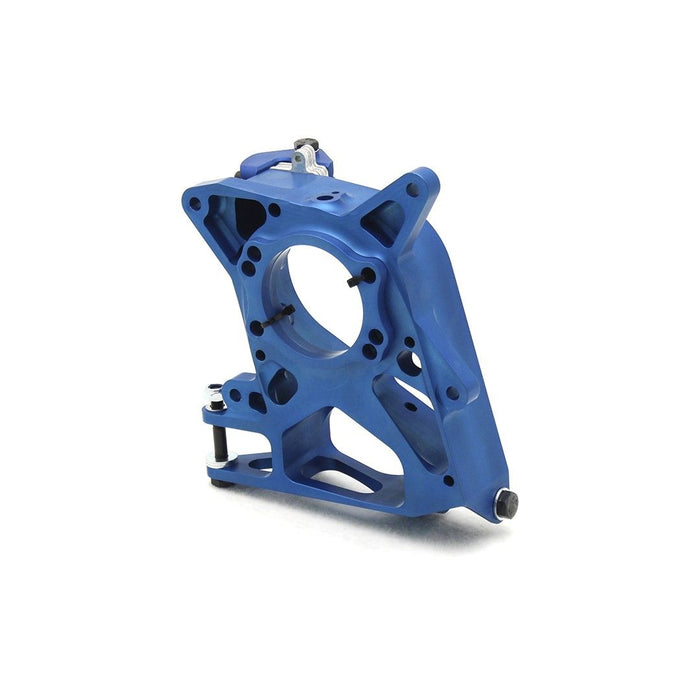

  • 7075-T6 aluminium billet CNC knuckles
    With optimized double shear design that provides low weight and high strenght

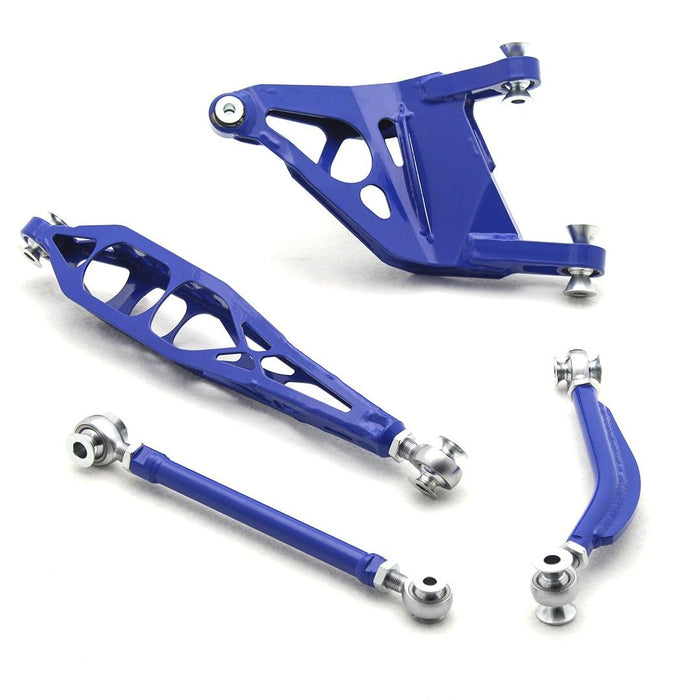

  • All the rear links and arms are made of high strength steel
    CrMo rod ends and sphericals used instead of rubber bushings
  • Adjustable shock motion ratio
    Shock motion ratio can be adjusted by changing the shocks position on the arm. It can be done quickly and has the effect of changing the springrate. This means that understeer or oversteer can be removed within a few minutes
  • Easy camber adjustment
    Camber shims are used for adjustment
  • Bump steer adjustment
    Possibility to adjust bumpsteer by changing washer locations

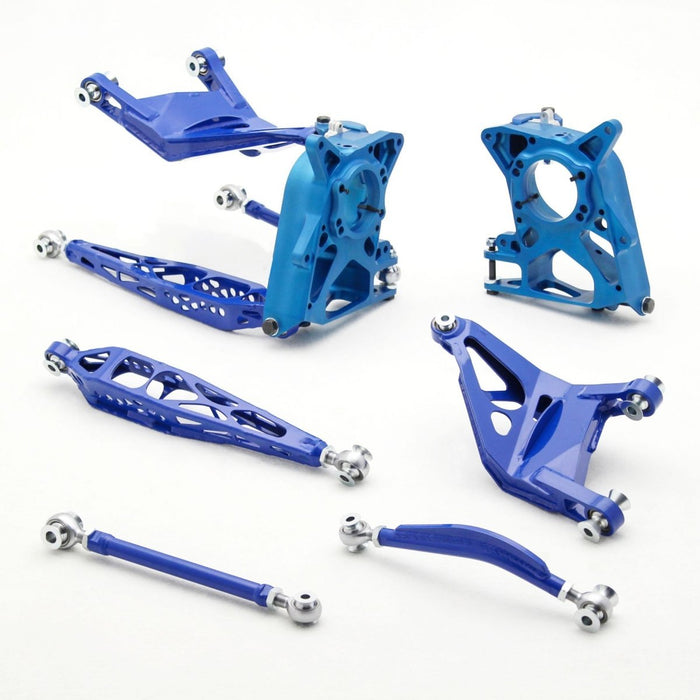

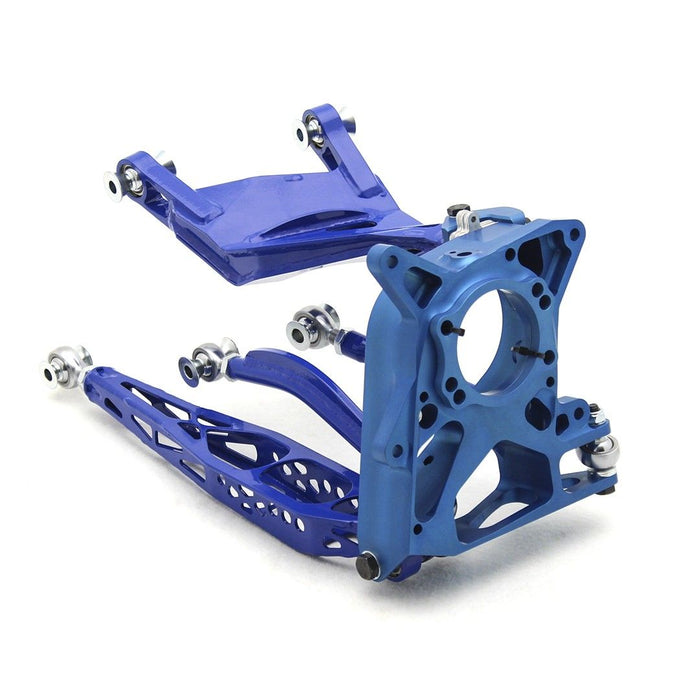

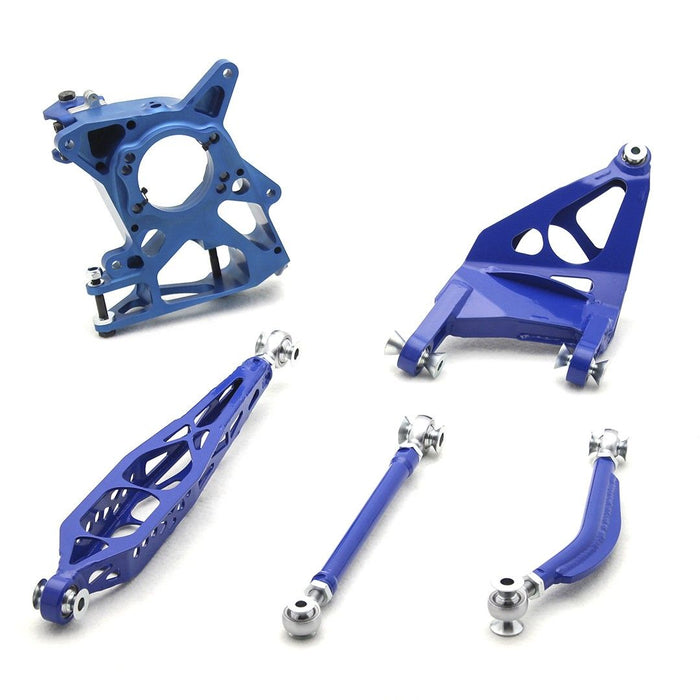

Kit includes:

  • Pre-set suspension arms
  • Knuckles with hardware
  • Camber adjustment shims
  • Installation guide

Notes:

  • Track width is the same as original, as this is defined by halfshaft lengths
  • This kit is designed to be used with coilovers
  • Original wheel speed sensor can be used
  • Possibility to use Nissan S-Chassis hub with a bigger CV joint
  • Minimum rim size is 17“

Installation Guide
