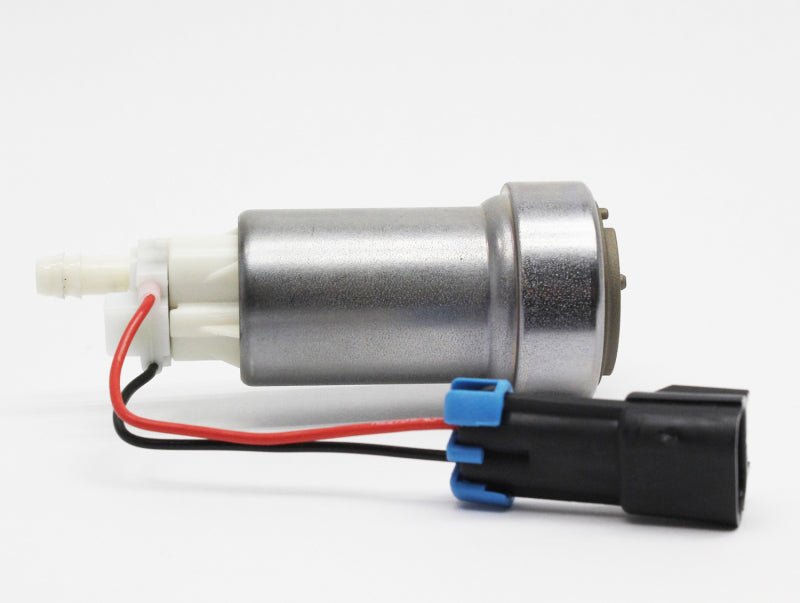

Walbro 525LPH Hellcat High Pressure Universal E85 Compatible Fuel Pump

$181.42
$201.58
$201.58 - $201.58
$201.58
$181.42 - $181.42
$181.42
SKU F90000285
by Walbro
Lease to own Pay as low as $/week

DETAILS

The F90000285 is one of our highest performing fuel pump that we offer for in-tank applications. This fuel pump has a high pressure relief valve for high boost applications.
  • Compatible with gasoline, race gas, and ethanol blends up to E99, as well as race gas/ethanol blends
  • Able to operate up to 112 psi total fuel pressure
  • Internal check valve for use in staged (or non-staged) fuel systems
  • Dual channel turbine pump for very quiet operation
  • Comes with fuel safe sealed Delphi electrical connector
  • Requires Walbro prefilter on inlet (recommend Walbro 125-190)
  • Not recommended for methanol fuels

Note:

  • Fuse each pump at 30A
Carefully consider whether your fuel system is capable of supporting this pump before attempting to implement into a pre-existing fuel system that utilizes a smaller pump. Upgrades/changes may include electrical, filtration, fuel pressure regulation, and fuel line sizes.
SPECIFICATIONS
  • Outlet diameter: 10mm (3/8")
  • Diameter (upper body) 39mm
  • Diameter (lower body) 50mm
  • Length (inlet-outlet tips) 130.6mm
