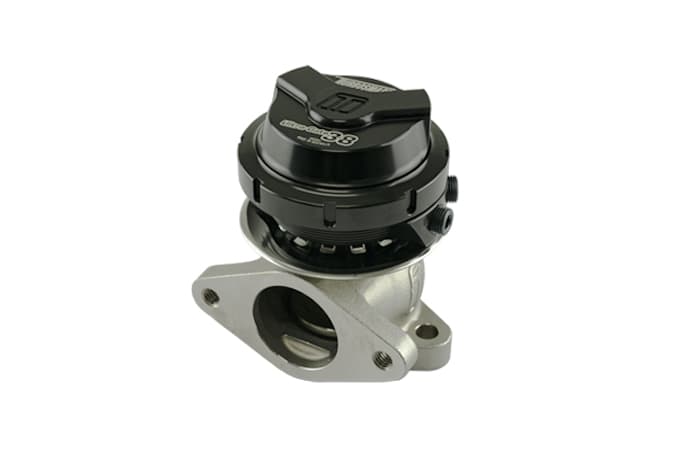

Turbosmart GenV UltraGate38 38mm External Wastegate 14psi Sleeper Edition

The GenV WG38 UltraGate38 External Wastegate is a Motorsport-proven, cost-effective external wastegate. The Turbosmart GenV range is the Highest Flowing Wastegate range in the World.

The GenV provides extensive user configuration, world-leading extended thermal performance, fatigue resistance and best-in-class flow performance for optimum control and longevity. CFD optimized and validated in-house for maximum flow and thermal management. The GenV Range has more features, options and performance than any other gate.

A direct fit upgrade to all Gen4 Turbosmart wastegates and feature our unique collar-locking system, variable actuator cap and base for easy, 360-degree optional routing of reference hoses, optional liquid-cooling provision, 1/8″ NPT reference ports and are provided with the full range of available springs.

Features:

• Traditional 3 Bolt Flange & Orientation
• Class Leading Thermal Performance
• Class Leading CFD & Bench Validated Flow Performance
• Class Leading Fatigue Resistance
• Nitronic 60 Valve Guide & High Temp 347 SS Body
• 17/7 PH Stainless Steel Springs
• Liquid Actuator Cooling Option

Included:

• GenV Wastegate Unit

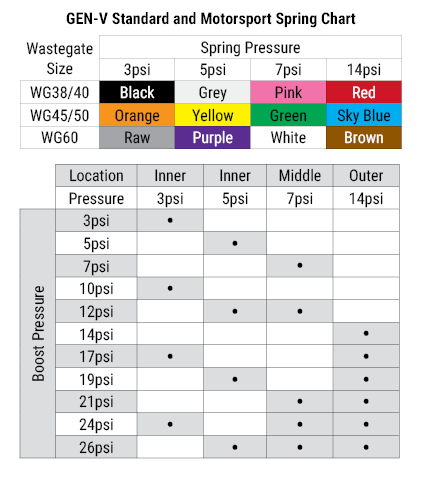

• All Springs Included

• (3,5,7,14 (1 Inst. As per Desciption)

• GenV SS316 Valve Seat

• GenV UltraGate38 SS Gaskets

• Hose Tail & Blank Fitting Kit

• Turbosmart Decal

Note: Weld Flange Not Included

Installation Instructions
