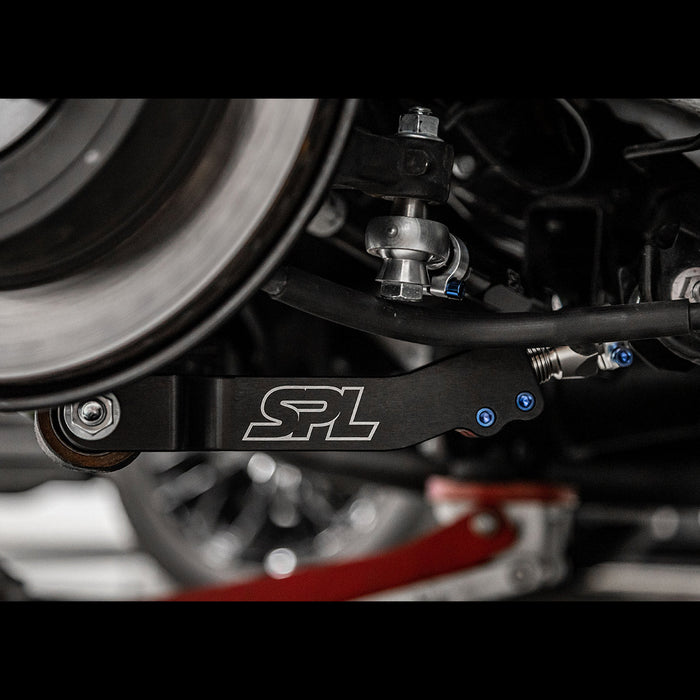

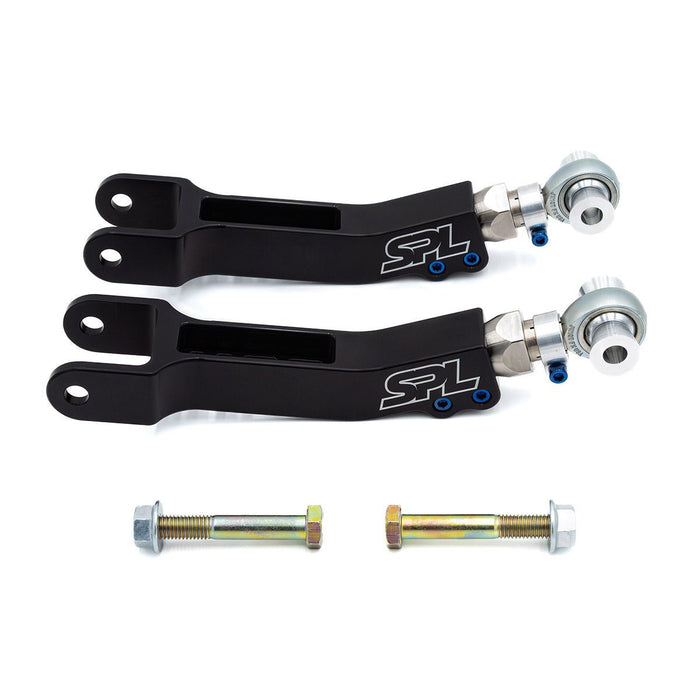

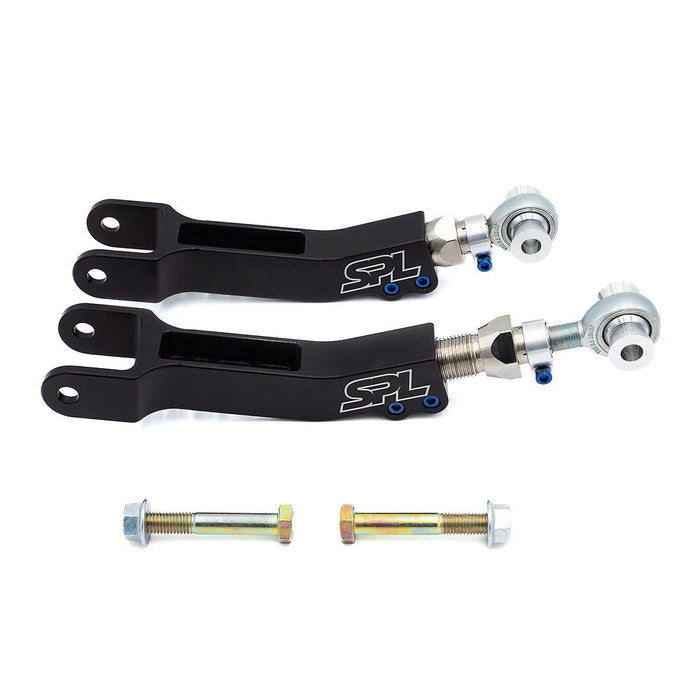

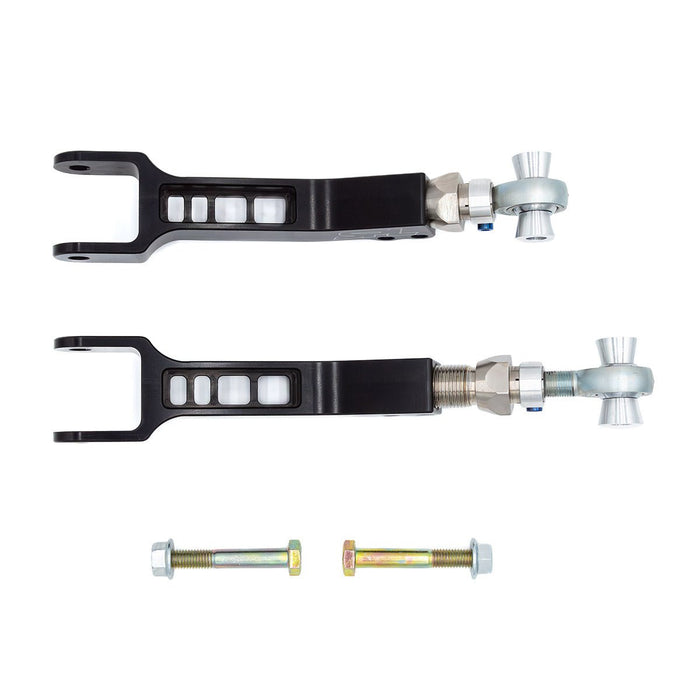

SPL Parts Rear Adjustable Traction Arms Black 2013-2024 BRZ / 2022-2024 GR86 / 2013-2016 FRS / 2017-2021 86

SPL Rear Traction Arms for the GR86 / BRZ / GT86 / FR-S improve throttle response, braking stability, handling, and prevent wheel hop by eliminating bushing deflection. The rear bumpsteer can also be adjusted by changing the length of the traction rod relative to the toe and camber arms, allowing for greater control of the over/understeer behavior of the car.

Acceleration Improvements

Under hard acceleration the rear traction arm bushings in the knuckle and arm will deflect under the load. This small movement in the suspension alters the bump geometry and can lead to wheel hop due to a combination of tire forces and the spring-like behavior of the rubber bushings.

Braking Improvements

Under hard braking the rear traction arm bushings in the knuckle and arm will deflect under the load.

As the rear suspension unloads, the OEM rubber bushings will begin to resist the articulation of the suspension. When trailbraking into a corner, the inner, rear tire has the least amount of load on it and is likely to lock up. Reducing the bushing bind by using a spherical bearing allows the suspension to droop and reduce the likelyhood of flat spotting the tire. The SPL rear traction arms replace one of these bushings, and the optional SPL rear knuckle bushing for the 86/BRZ replaces the other. The result is greater predictability and stability under heavy braking.

Benefits

• Allows for Additional Bumpsteer Correction
• Lightweight: 3.56 lbs (1.61 kg) / 1.78 lbs (0.81 kg) per Side (18% Lighter than OEM)
• Improves Throttle and Braking Response
• Reduced Wheel Hop
• Maintenance-Free, US Made, PTFE-Lined FK Bearings

Materials

• 6061-T6 Aluminum Billet Arm
• 6061-T6 Aluminum 360° Clamp
• 4130 Chromoly Steel Double Adjuster (Electroless Nickel Plated)
• Ti-6Al-4V Titanium 1/4-20 Socket Head Allen Screws (Anodized Blue)

Noise, Vibration, and Harshness (NVH)

The SPL traction arms are a moderate contributor to NVH. The rear traction arms are an active part of reducing the felt vibration from potholes, rough pavement, and other road irregularities. By replacing one of the OEM rubber bushings with a spherical the longitudinal compliance of the suspension is reduced.

Confirmed Applications

• 2021+ Toyota GR86 (ZN8)
• 2013 - 2021 Toyota 86 / Scion FR-S (ZN6)
• 2013+ Subaru BRZ (ZC6/ZD8)
