SMY Stealth Pillow Ball CNC Aluminum Adjustable Rear Control Arm / Toe Kit 2008-2024 WRX / 2008-2021 STI - SMY-SUS-CTK-CNC - Subimods.com

SMY Stealth Pillow Ball CNC Aluminum Adjustable Rear Control Arm / Toe Kit 2008-2024 WRX / 2008-2021 STI

$620.00
$620.00 - $620.00
$620.00 - $620.00
$620.00
Stock Status: Ships Directly From Manufacturer – Delivery Times Vary What does this mean
Stock Status: Ships Directly From Manufacturer – Delivery Times Vary What does this mean
SKU SMY-SUS-CTK-CNC-GR
by SMY

DETAILS

Here you will find the upgraded SMY LCR kit. Our previous version was made from Steel.  This new version has been completely reworked, resigned, and over-engineered to allow us to offer a LIFETIME warranty. CNC from high-grade aluminum, ours is lighter than the previous-gen (all Steel) by 2lbs each. The bushings have been upgraded to a thicker more robust to prolong life as well as comfort.

Features:
- Material = Aluminum

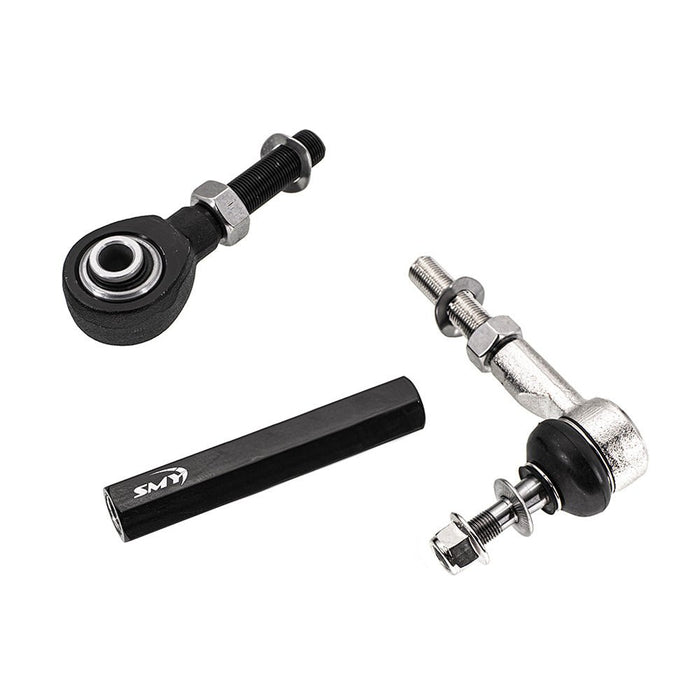

- Adjustable Pillowball Ends
- Bushings Durometer Rating = 80
- Color = Gloss Black
- Location = Lower Rear
- Control Arms Camber Adjustment Range = +12mm to -12mm
- Toe Arms Adjustment Range = +/- 3 Degrees

Includes:

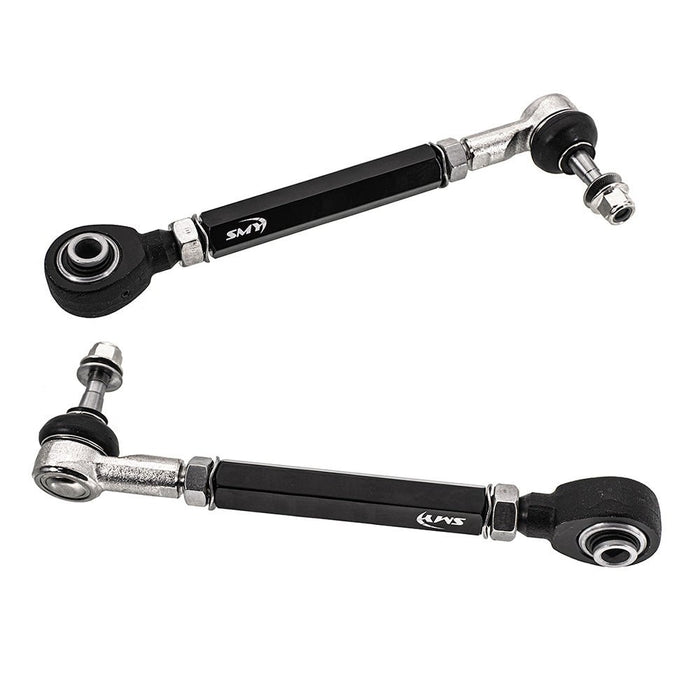

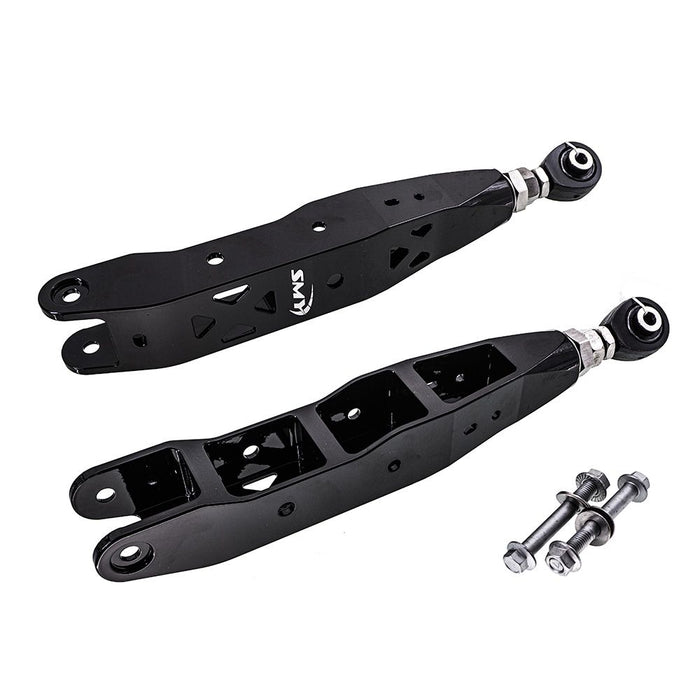

- 2 x Aluminum Rear Control Arms (1 Pair)

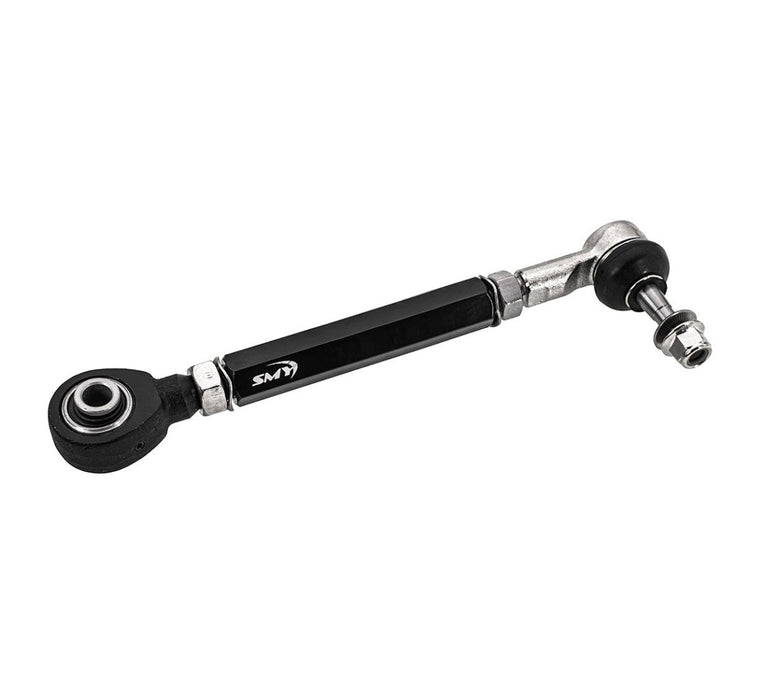

- 2 x Steel Toe Arms (1 Pair)
- Hardware
- SMY Decals
- Lifetime Warranty

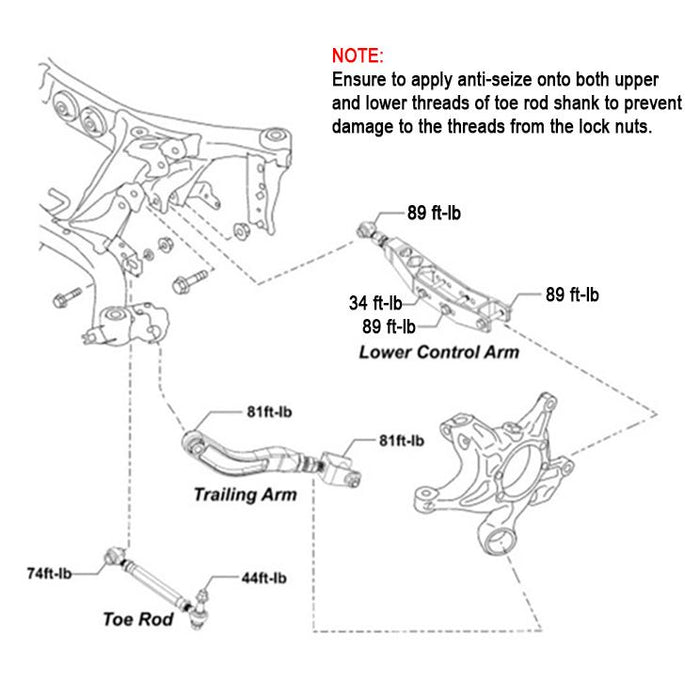

Installation:
- Control Arm Endlink bolts = 28 Foot-lbs
- Control Arm All 3 other points = 59 Foot-lbs
- Toe Arms Subframe Side = 74 Foot-lbs
- Toe Arms Other End = 44 Foot-lbs
- Alignment is highly Recommended after installation

Customer Reviews

Based on 2 reviews
50%
(1)
50%
(1)
0%
(0)
0%
(0)
0%
(0)
R
R.S.
Great product

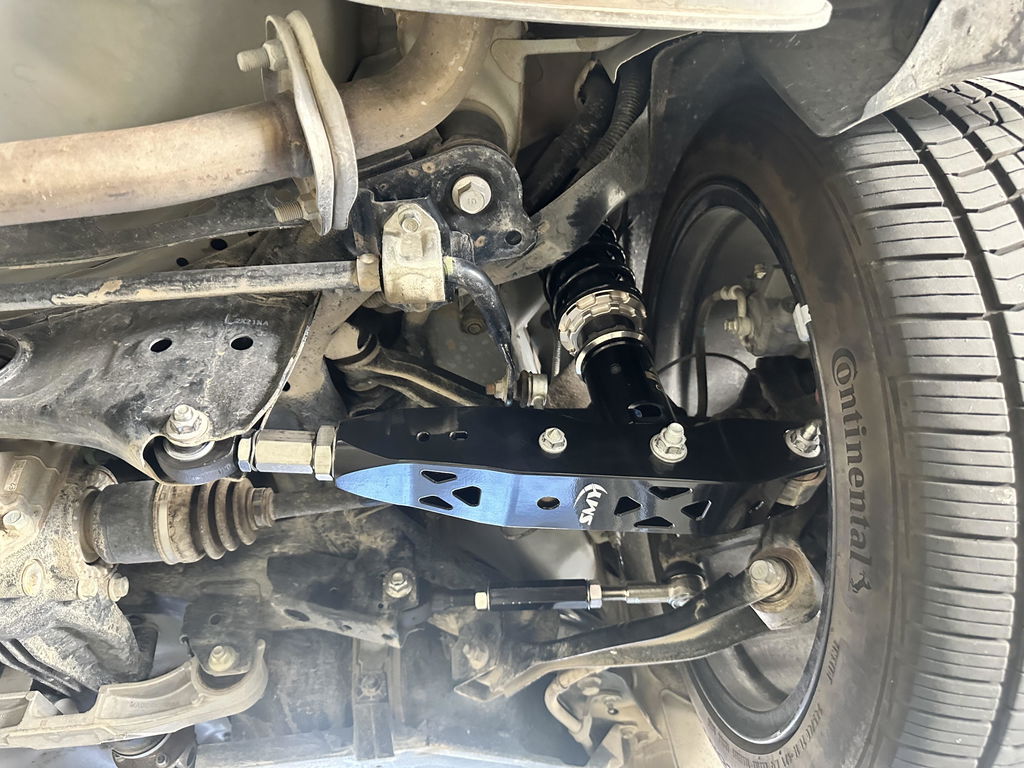

Install was easy. Although it’s hard to get to the inside lock nut on the control arm when installed. - also if the guy that wrote the comment above sees this or anybody else in doubt due to misinformation as I was, sounds like you installed the control arm where the trailing arm goes. Trailing arm is the one that holds the brake cable and is not included in this kit. . Great kit. Alignment was easy. No noise or rough ride. No complaints 👌🏽

User picture

RS,

Thank you for taking the time to leave a Star Review! We are glad to hear that you found the installation process easy and that the alignment was simple as well. We understand that the inside lock nut on the control arm can be tricky to reach, but we're happy to hear that it didn't cause any major issues. We appreciate you clearing up any potential confusion for other customers about the included parts in the kit. Thank you for choosing Subimods and we hope you continue to enjoy your upgrades.

Regards,

I
Ian Sobrero
Good design

Good product. However from install to alignment has been a hassle. I had a shop install the control arms but alignment shops have had a hard time getting my camber set right. Not sure if it is shop or product related but getting camber below 3.5 degrees has been difficult and am ordering eccentric camber plates to try to help.
Also there is no spot to remount the emergency brake cable as it's original mount is on the stock control arm.

Ian,

Thank you for your positive review and feedback. We apologize for any inconvenience you have experienced during the installation and alignment process.The addition of eccentric camber plates will help with your camber adjustment. If you have any further concerns, please do not hesitate to reach out to our customer service team. Thank you for choosing Subimods and we hope to continue serving you in the future!

Regards,
