The new Electronic Boost Controller (OLED Display) from Shadow Meter represents one of the best value and best performing electronic boost controllers available in todays marketplace, along with a whole array of excellent new features. The new boost controller has smooth screen transitions, simple operation, superior solenoid control and a ton of other very subtle features with the most valuable being AFR input with protection options. It also features over boost protection and warning for those not using the AFR input.
An electronic boost controller at this level of specification and quality would normally cost twice as much, Shadow Racing has purposely developed this high end electronic boost controller to offer uncompromised performance, outstanding appearance and unrivalled quality at an affordable price.
A digital electronic boost controller uses a solenoid as its control unit, which is compatible with both internal and external wastegates. Through the controller, it adjusts the solenoid valve's airflow and pressure. The system also includes a display that monitors boost pressure in real time, allowing for on-the-fly tuning adjustments, such as during dyno testing.
Specification:

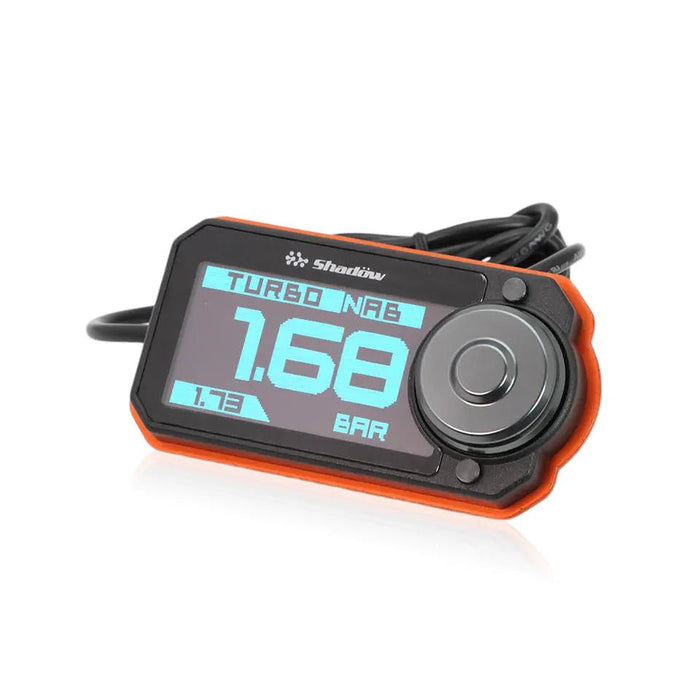

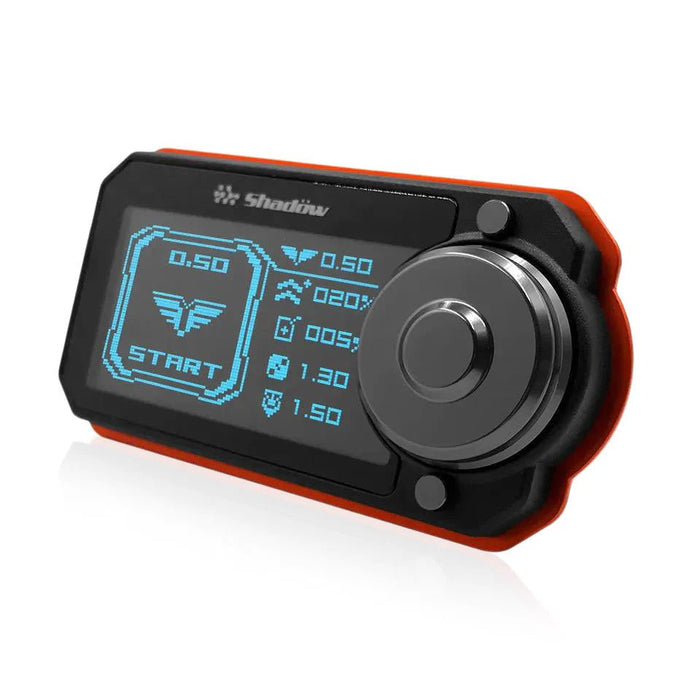

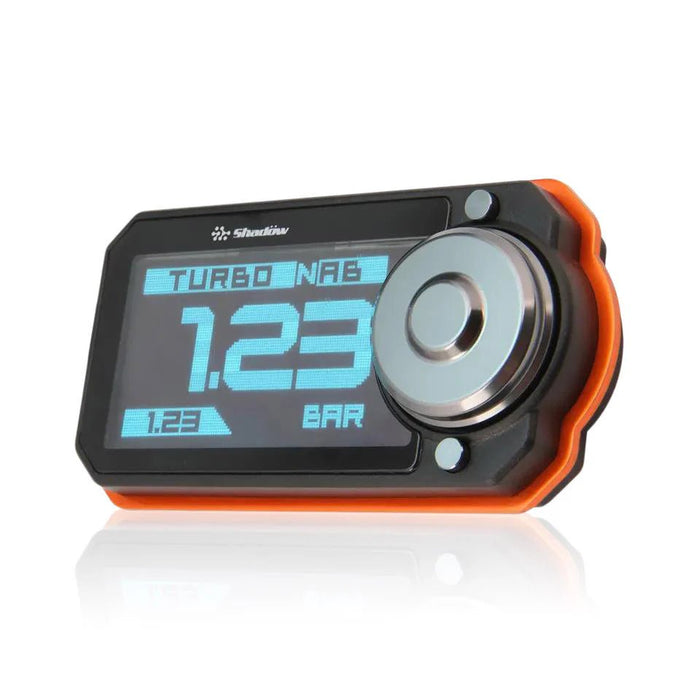

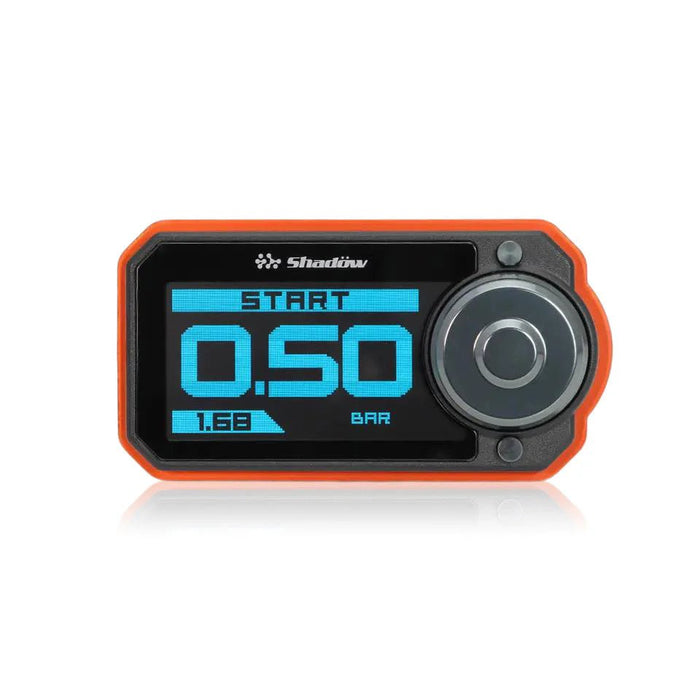

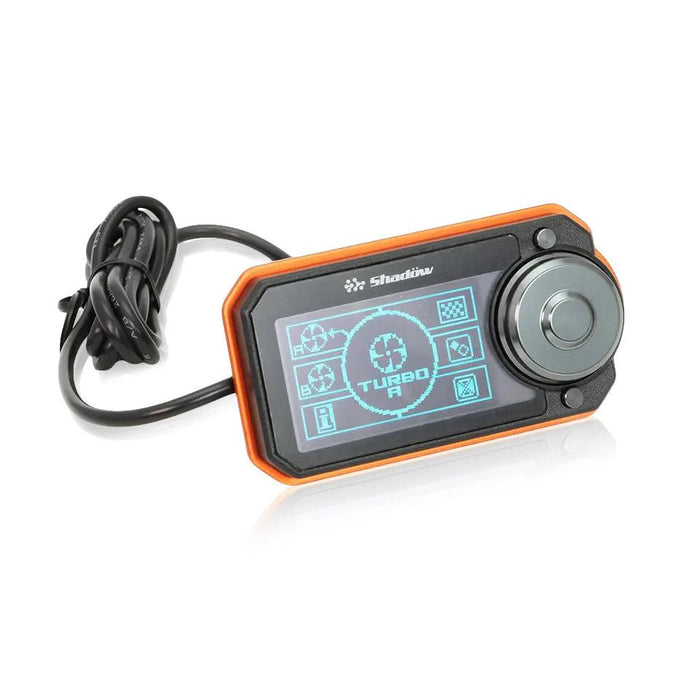

- 2.6” OLED Display
- Real time boost displayed in Bar or Psi
- 4 Main display options
- Rotational display option
- Peak display function
- 2 Boost memory presets
- AFR monitor input (With warning & protection settings)
- Boost scramble function
- Suitable for both internal or external wastegate
- Over boost warning function with over boost protection
- Adjustable sound/mute
- Adjustable brightness
- Self calibration function
- Comes with all fittings for installation (including 3 Port solenoid etc)
Features
- Compatible with both actuator and wastegate-based turbocharging systems
- Ultra-high-frequency solenoid valve for precise boost and pressure relief control
- Switchable interface for right-hand drive vehicles
- High-visibility OLED display enhances readability and user experience
- Integrated with a turbo gauge for real-time monitoring and adjustment of boost levels
Functions
- Can be expanded with an air-fuel ratio meter to detect lean combustion and activate a pressure relief mechanism
Adjust the Duty value to increase peak boost pressure, surpassing the factory boost limit
- Fine-tune the Gain value to improve the pressure-holding curve, extending effective turbo boost duration
- Includes a forced pressure relief mechanism to protect both the turbocharger and engine

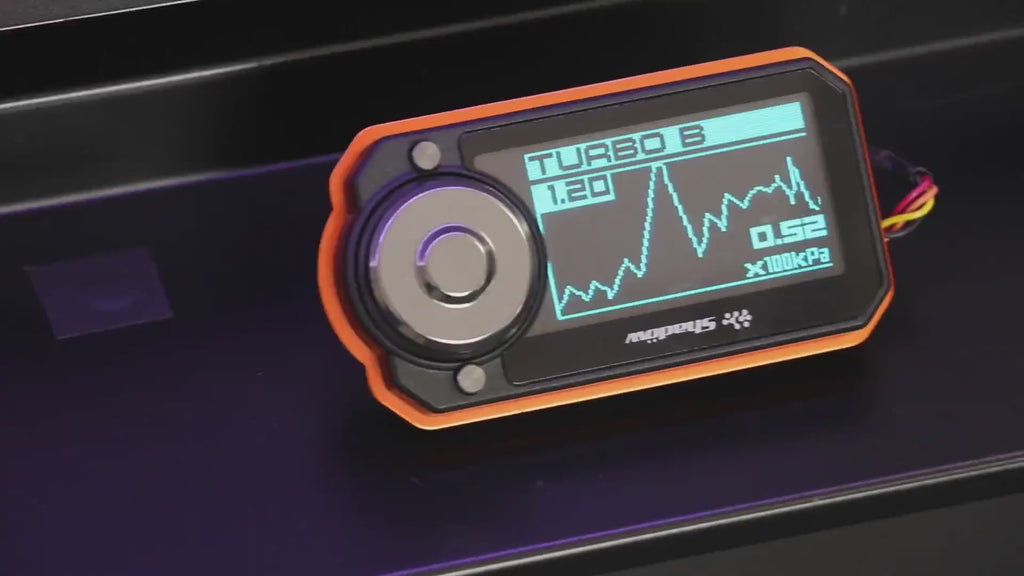

- Features three display modes—waveform, LED light bar, and numeric—offering clear, real-time visualization of boost pressure
- Allows configuration of two custom boost modes with different settings, plus one factory default mode
