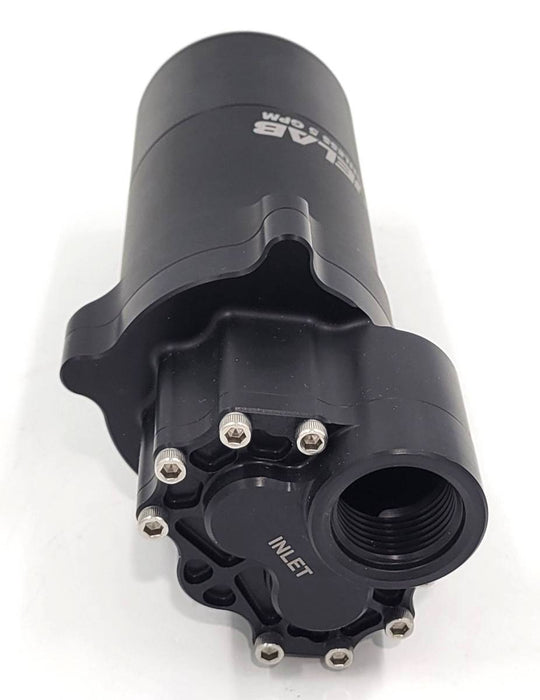

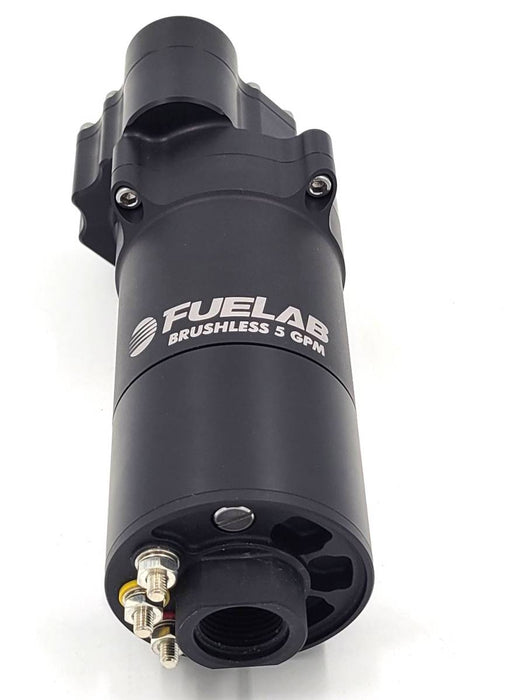

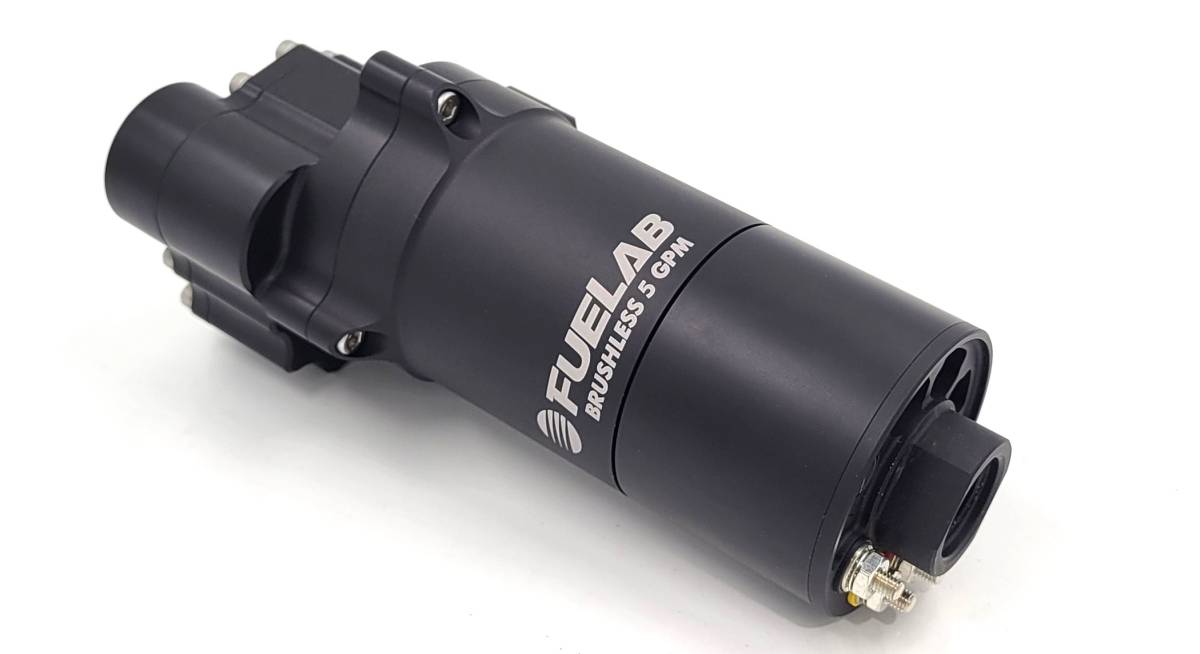

Fuelab PRO Series Extreme Flow In-Line Variable Speed Brushless Fuel Pump, 5 GPM Spur Gear

Fuelab PRO Series Extreme Flow In-Line Variable Speed Brushless Fuel Pump 5 GPM Fitment | 5.0 GPM at 45 PSI | High-Flow Fuel Pump

Overview

The Fuelab PRO Series Extreme Flow In-Line Variable Speed Brushless Fuel Pump is engineered to deliver exceptional fuel flow and efficiency for high-performance Subaru builds and other demanding applications. Rated for up to 3400+ horsepower, this pump provides a reliable 5.0 gallons per minute (GPM) flow at 45 PSI, making it ideal for turbocharged and high-output naturally aspirated engines that require consistent fuel delivery under extreme conditions. Its universal fitment ensures compatibility across a wide range of platforms, including Subaru WRX, STI, BRZ, and more.

Designed with precision and durability in mind, the pump features a high-precision spur gear pumping mechanism combined with a lightweight, super-efficient brushless DC motor. This motor reduces current draw and eliminates wear-prone brushes, ensuring long-lasting performance even with fuels like low-sulfur diesel, ethanol, and methanol. The billet aluminum construction with MIL-A-8625 Type II anodizing adds corrosion resistance and strength, while the compact size and included T-style mounting brackets simplify installation.

For Subaru enthusiasts pushing the limits of power, this pump’s variable speed operation controlled via PWM input allows precise fuel delivery tailored to engine demands without the need for additional voltage regulators or controllers. This results in improved fuel efficiency, reduced heat generation, and reliable operation during spirited driving or track use. The Fuelab PRO Series pump is a robust solution that supports high horsepower builds and advanced tuning strategies.

Features & Specifications

This Fuelab PRO Series Extreme Flow In-Line Variable Speed Brushless Fuel Pump is engineered for universal fitment and features a 5.0 GPM flow rate at 45 PSI. Constructed from billet aluminum with anodized finish, it delivers high efficiency and durability for Subaru enthusiasts seeking reliable high-flow fuel delivery for extreme performance applications.

• Brand: Fuelab
• Product: PRO Series Extreme Flow In-Line Variable Speed Brushless Fuel Pump 5 GPM
• Part Number: 40500
• Fitment: Universal
• Material: Billet Aluminum
• Finish: Anodize per MIL-A-8625, Type II
• Construction: Billet Aluminum with high precision spur gear pumping mechanism
• Origin: Not specified
• Flow Rate: 5.0 GPM at 45 PSI
• Maximum Pressure: 100 PSI
• Power Rating: Supports up to 3400+ HP
• Motor Type: Brushless DC motor with Neodymium rare earth magnets
• Electrical Compatibility: 12 to 24 volt systems, PWM speed control input
• Inlet/Outlet Ports: -12AN inlet, -10AN outlet
• Weight: 3.5 lbs
• Dimensions: Length 7.7 inches, Diameter 3.31 inches
• Seal Material: Fluorosilicone static seals
• Fuel Compatibility: Gasoline, diesel, ethanol, methanol
• Warranty: Limited lifetime warranty

Key Benefits

• Performance: Delivers consistent 5.0 GPM flow at 45 PSI, supporting high horsepower Subaru builds up to 3400+ HP.
• Efficiency: Brushless motor design reduces current draw and heat, improving overall fuel system efficiency.
• Durability: Billet aluminum construction with anodized finish and fluorosilicone seals ensure long-lasting corrosion resistance and multi-fuel compatibility.
• Adjustability: Internal speed controller with PWM input allows precise fuel flow control without additional regulators or controllers.
• Fitment: Universal design with included T-style mounting brackets simplifies installation across Subaru platforms and other vehicles.
• Reliability: Brushless motor eliminates wear-prone brushes, ensuring dependable operation with various fuel types including ethanol and low-sulfur diesel.

What's Included

• 1× Fuelab PRO Series Extreme Flow In-Line Variable Speed Brushless Fuel Pump 5 GPM
• 1× High quality T-Style Mounting Brackets
• Installation instructions

Installation & Compatibility

Installation of the Fuelab PRO Series Extreme Flow Fuel Pump is generally straightforward for those familiar with fuel system components, but professional installation is recommended to ensure proper integration with your vehicle’s fuel system. The pump requires a regulator with a return capacity of 10 gallons per minute or more, such as the Fuelab 565XX series, to operate correctly. It is compatible with 12 to 24 volt electrical systems and accepts PWM input for variable speed control, eliminating the need for additional voltage regulators or controllers. Verify fitment and compatibility with your specific Subaru model and fuel system setup before installation.

• Professional Installation: Recommended
• Modifications Required: None beyond compatible fuel regulator with adequate return capacity
• Verify Compatibility: Confirm fitment for your specific year, trim, and fuel system configuration
