Ohlins Road & Track Coilover System w/ DFV Tech 2022-2024 BRZ / 2022-2024 GR86

You’re not just a Toyota GR86 owner, you’re an enthusiast. You appreciate the ride, and the beauty, and you’re willing to invest in the full experience.

As an owner of the GR86, you enjoy the beauty of your car just as much as you love the sport and pure joy of racing.

A great sports car like this requires the best setup to reach its full potential. This is why Öhlins developed the new product, a completely new Road & Track, DFV kit to take your Toyota GR86 to the next level. Get track ready with a simple turn of the damper's golden knob and experience a car with faster response time, improved bump absorption, and better grip.

The unique Dual Flow Valve (DFV) allows the car to react quickly and keeps you in control of the car both on and off track. Because yes, we understand that you want the best out of your Toyota GR86 no matter if you’re racing the track or cruising around the streets. With your passion, as our driving force, we know that even you - a true sports car enthusiast will get blown away by your Toyota´s improved performance with the new Öhlins suspension.

Features

• Ride-height adjustable
• Matched compression and rebound hydrodynamics
• Consistent high-tolerance reliability
• Fully rebuildable
• Includes all hardware and instructions for installation
• DFV technology (Dual Flow Valve)
• Corrosion salt spray tested (ISO 9227)
• 2 year limited warranty
• Includes springs

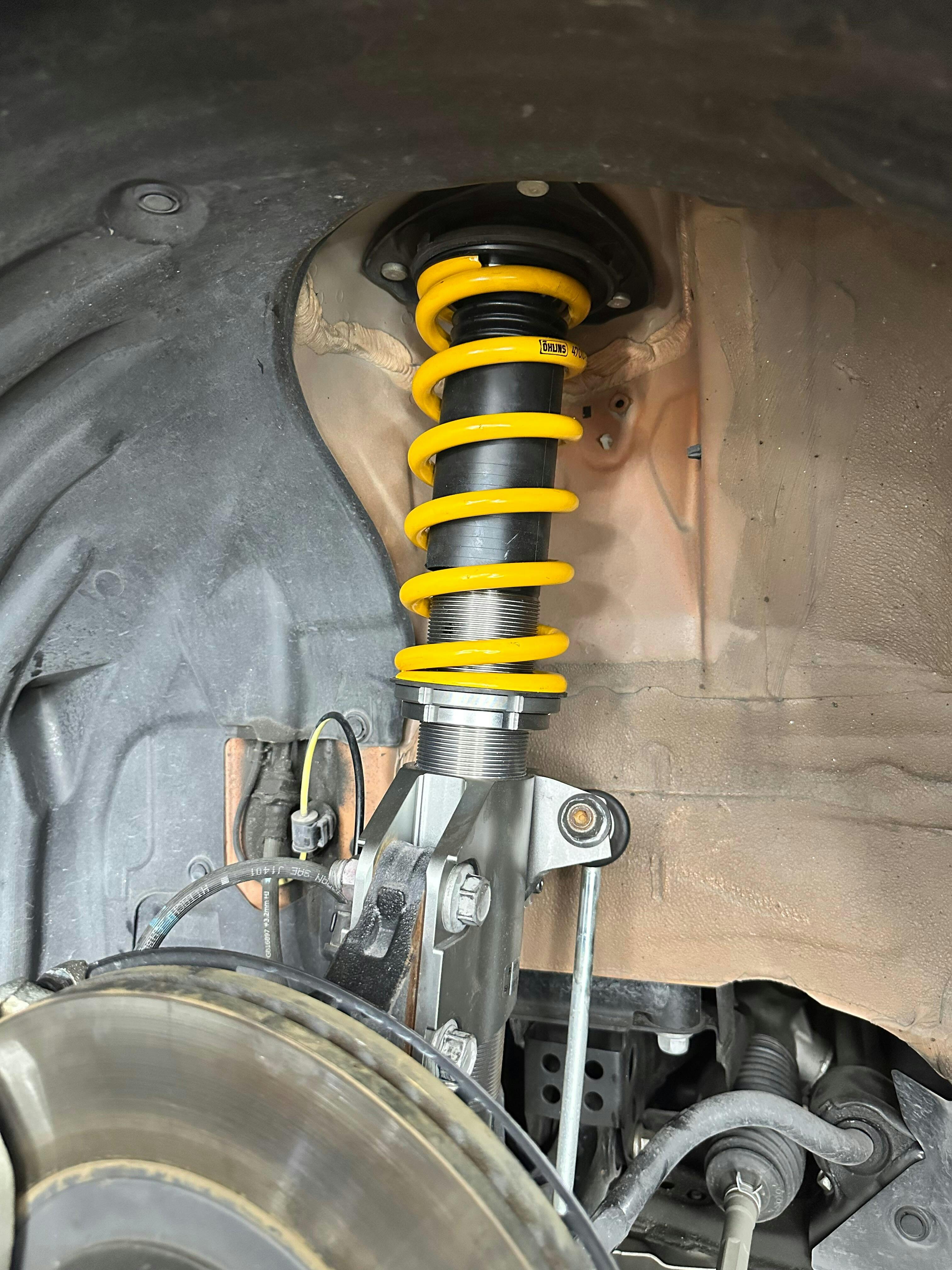

• McPherson strut, upside down
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 10 - 35 mm lower than standard
• Spring rate 60 N/mm
• Dust covers
• Use with original top mounts

Rear Features

• Conventional Shock Absorber
• Compression and rebound damping with one adjuster
• Spring preload adjuster
• Approx. 5 - 25 mm lower than standard
• Spring rate 60 N/mm
• Dust covers
• Use with original top mounts

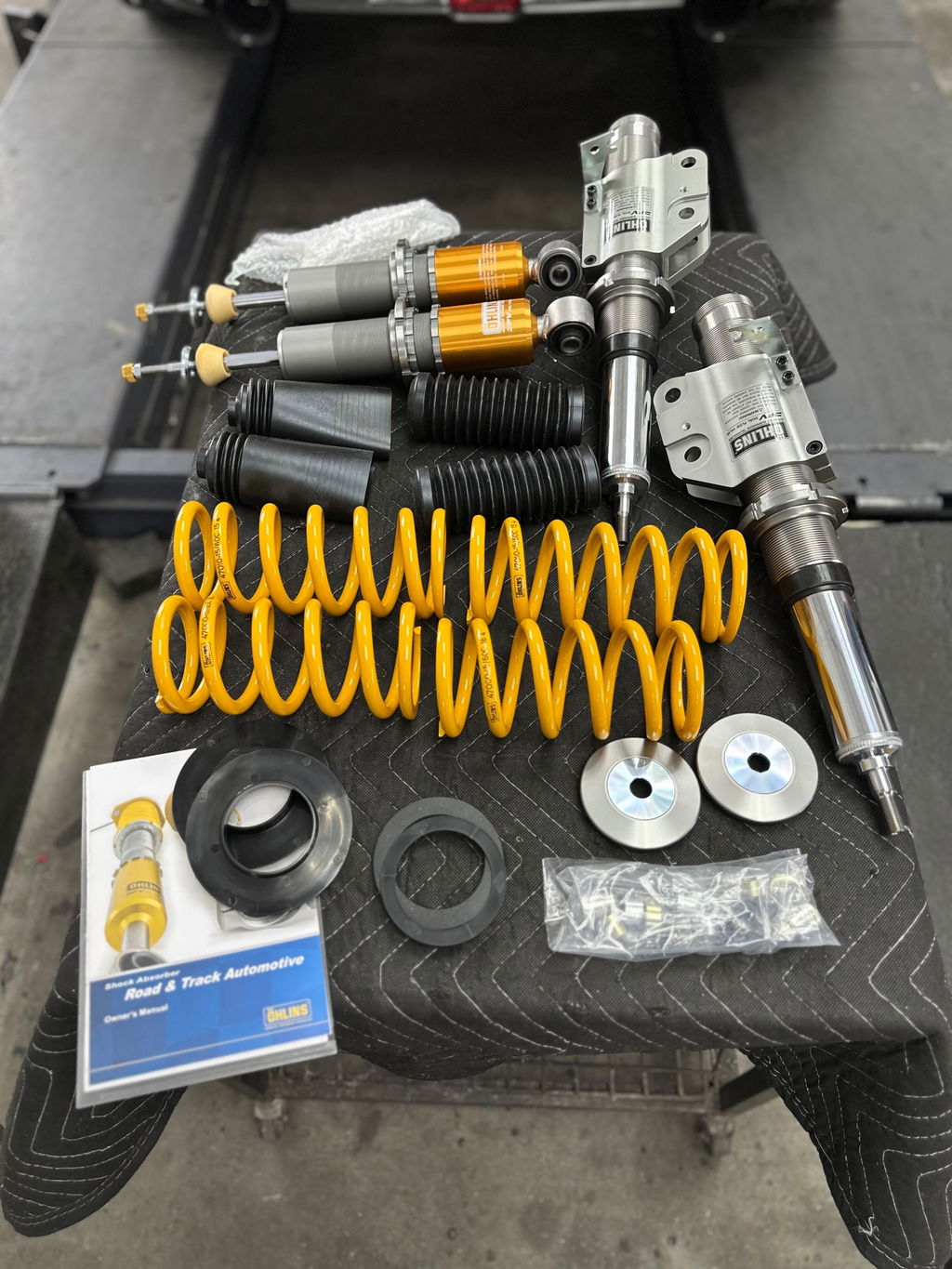

• Kit Includes
• Toyota GR86 coilover kit includes springs
• C-Spanner (for spring preload adjustment)
• Owners manual and mounting instructions
• Sticker set

Spring Rates

• Front: 60 N/mm // 343 lbs/in. // 6 kg/mm
• Rear: 60 N/mm // 343 lbs/in. // 6 kg/mm
