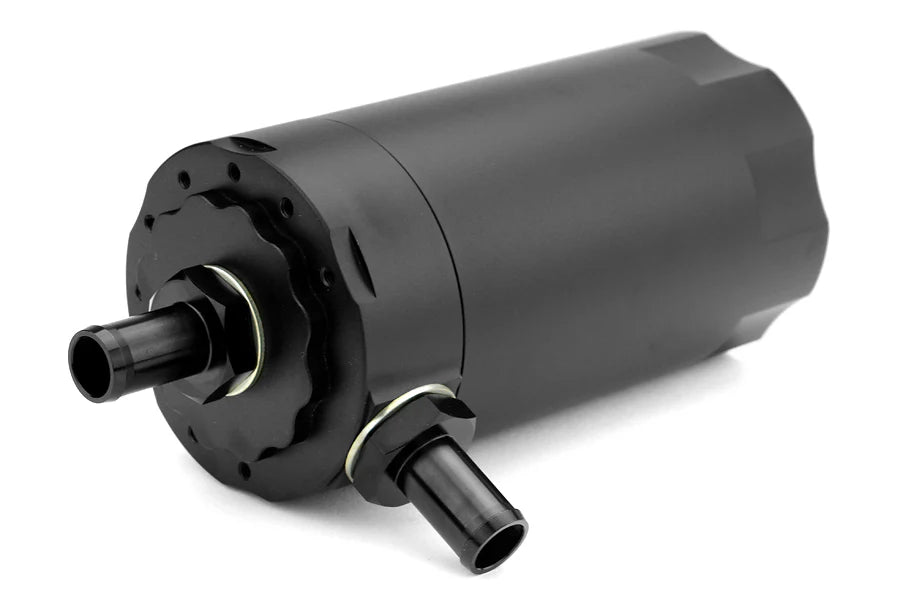

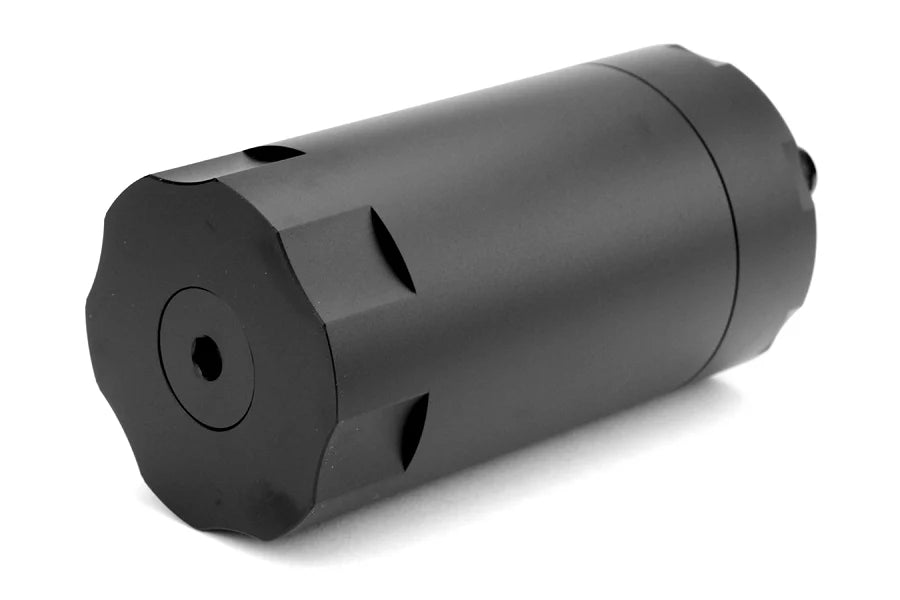

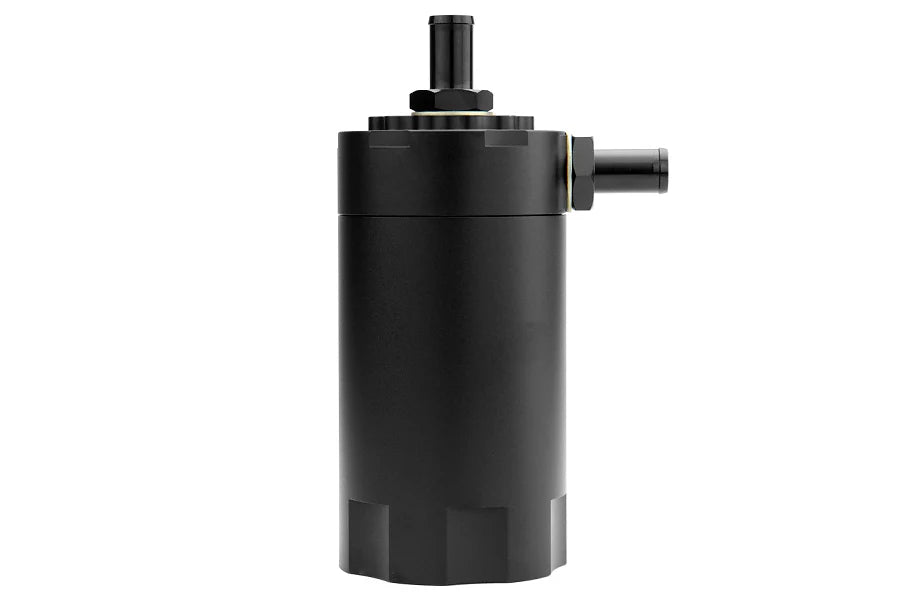

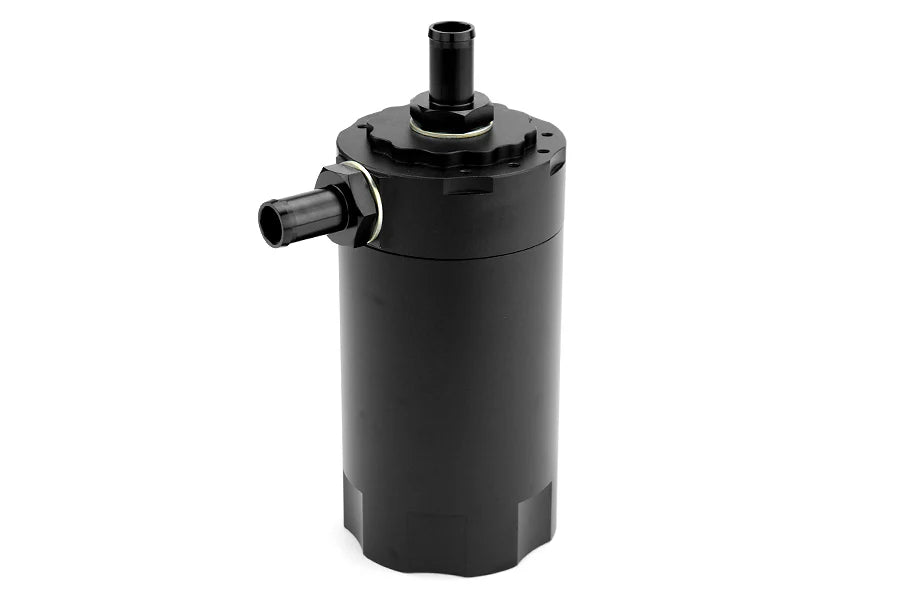

Mishimoto Universal Baffled Oil Catch Can Black w/ Red Insert

Mishimoto is proud to introduce the Baffled Oil Catch Can, the result of over a year of research and development to create the most effective catch can on the market. Designed to separate oil particles from PCV air that would normally be routed back into the intake, the Mishimoto catch can ensures that only clean air passes through to your engine. Custom-engineered grooves in the inlet increase air turbulence, allowing oil to condense and sink to the bottom of the can, while an internal baffle prevents oil from splashing under high-speed or race conditions.

Constructed from 100% billet, anodized 6061 aluminum with a laser-etched finish, this catch can accepts -AN fittings at the inlet, outlet, and drain for over 27 possible configurations. The top cog mounting system allows multiple mounting angles, and the drain plug can be removed for optional -AN return to the oil pan. Unlike many AOS systems, Mishimoto catch cans trap all blow-by—including low-octane oil vapors and contaminated fuel vapors—preventing them from re-entering your engine.

Features

• 40-micron bronze filter blocks oil from entering the intake system
• Engineered inlet pattern increases air turbulence, allowing more oil to condense
• Internal baffle prevents oil escape during high-speed cornering
• Replaceable single-unit filter is easy to maintain
• Inlet and outlet accept -AN fittings for versatile installation
• 100% billet anodized 6061 aluminum with laser-etched finish
• Safe for use in pressurized systems
• Drain plug can be removed for optional -AN return to oil pan

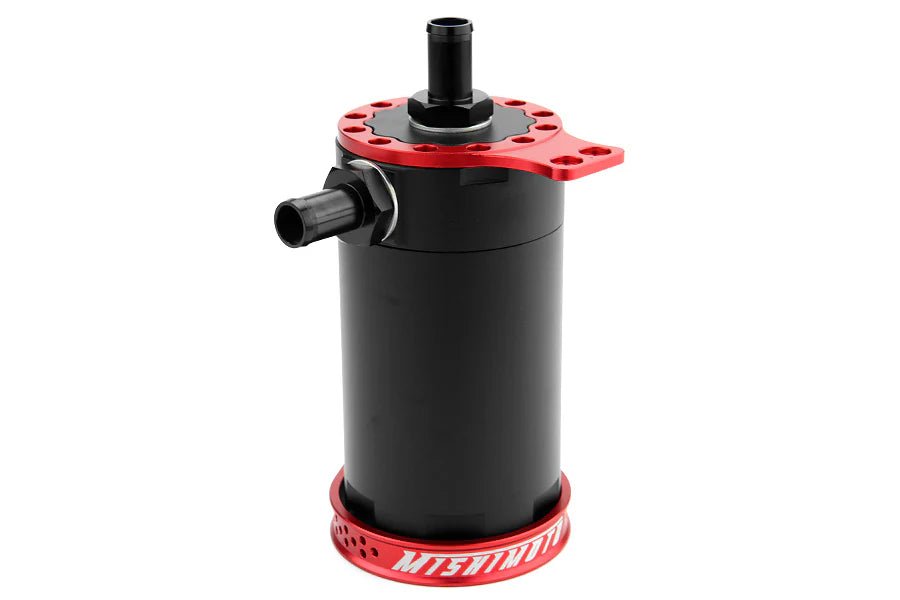

• Unique upper mounting bracket cogs allow multiple mounting positions
• Includes push-on fittings for easy installation

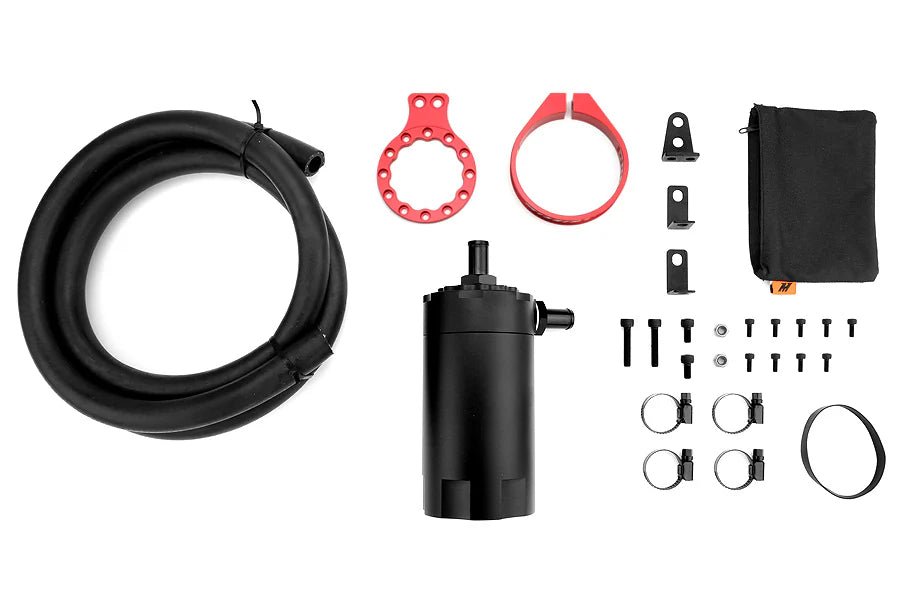

Includes:

• (1) Black, Anodized 6061 Aluminum Catch Can
• (2) Aluminum Mounting Brackets
• (1) Bronze Filter
• (1) Internal Baffle
• (3) Dowty Oil Seals
• (2) Push-on Fittings
• (1) Drain Plug
• (6) Black Rubber Oil Line
• (4) Worm Gear Clamps
• (1) Black Rubber Band
