Mishimoto Front Mount Intercooler Black 2015-2021 WRX

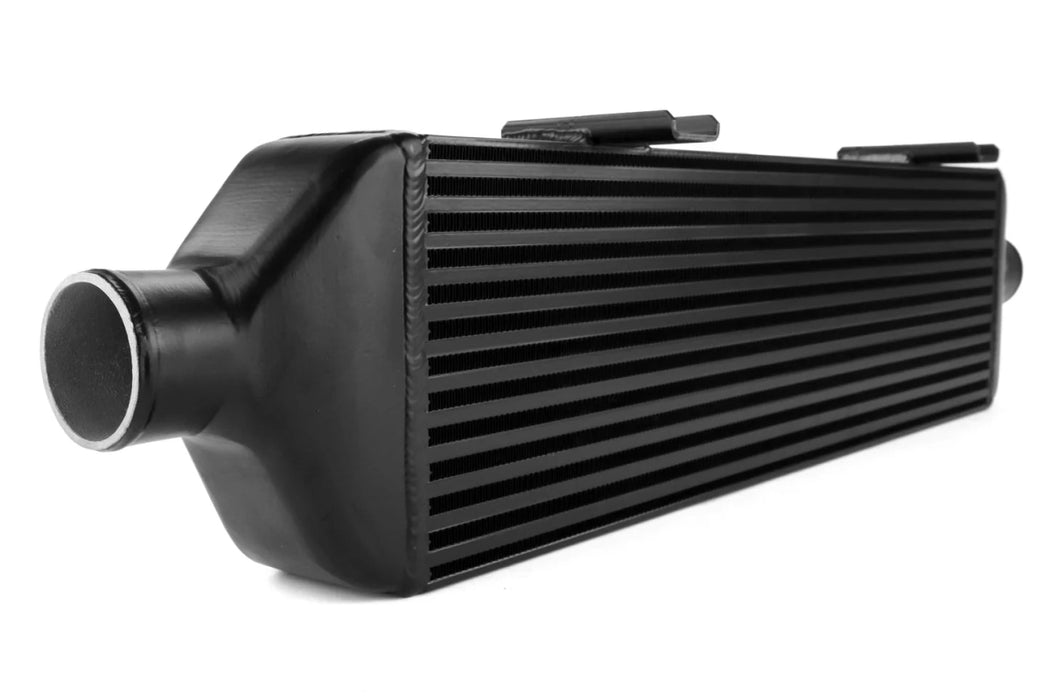

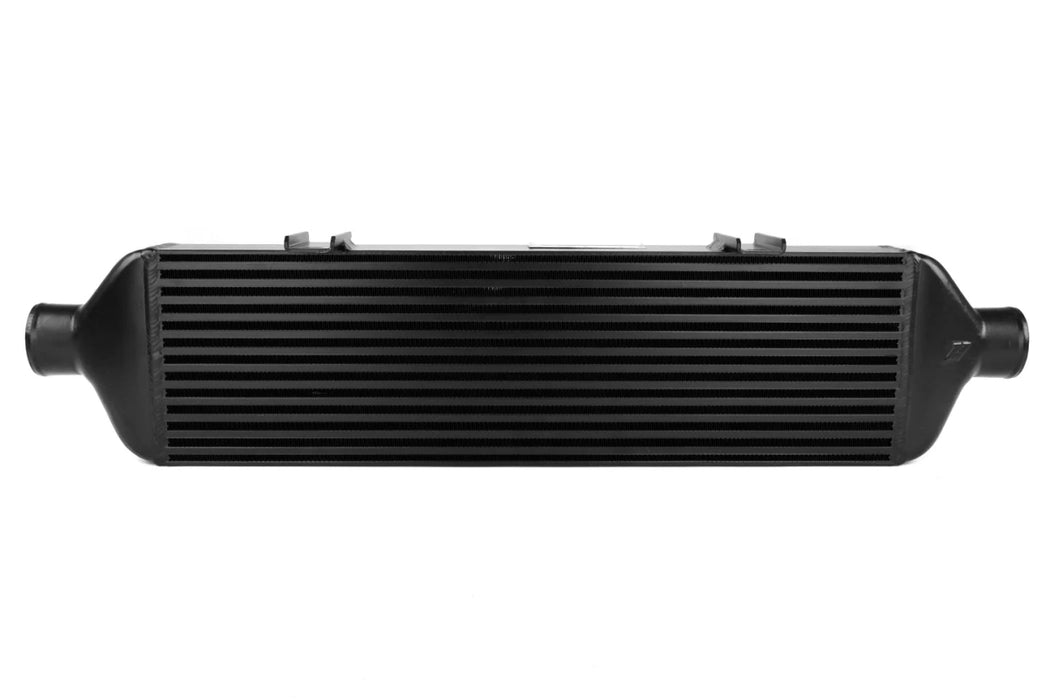

The Mishimoto WRX Front-Mount Intercooler Kit is engineered to help your FA20DIT achieve maximum horsepower and torque by delivering superior cooling efficiency. Featuring a massive 28" intercooler core, this system provides exceptional heat dissipation without the excessive pressure drop that can stress your turbo over time. Smooth cast end tanks—CFD-tested for optimal airflow—eliminate the turbulence often created by cut-and-weld designs, ensuring consistent, reliable performance on the street, at the track, or down the quarter-mile.

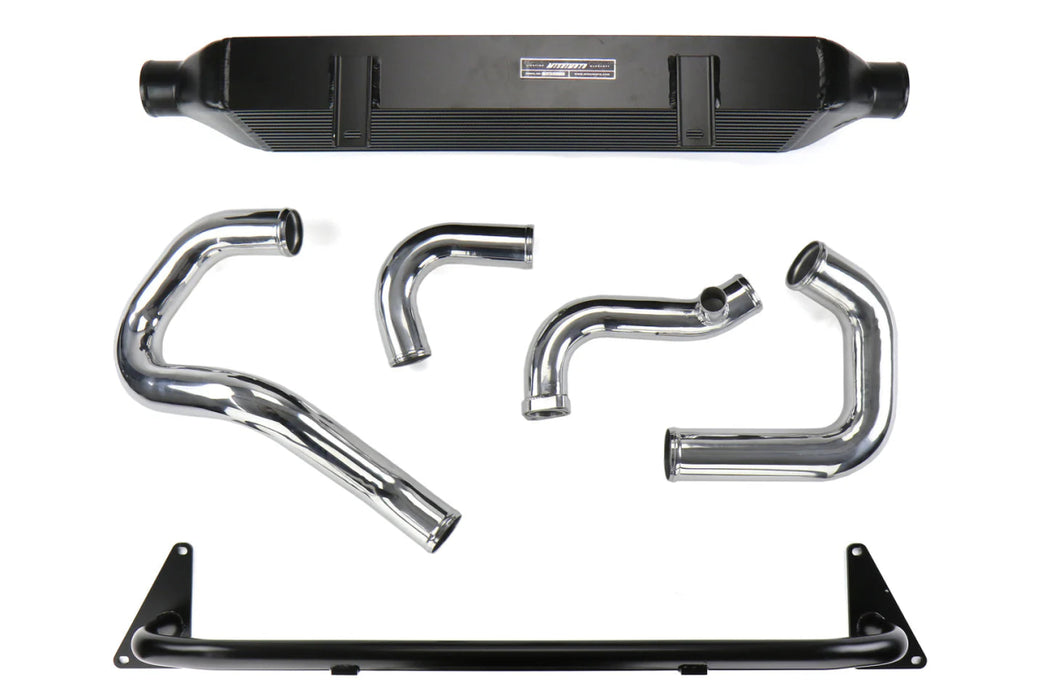

This kit includes four mandrel-bent aluminum pipes for unrestricted flow. The hot-side pipes measure 2.25" to maintain high air velocity and reduce lag, while the cold-side pipes expand from 2.5" to 2.75" to match the throttle body and maximize airflow. A CNC-machined turbo flange ensures a precise, leak-free connection.

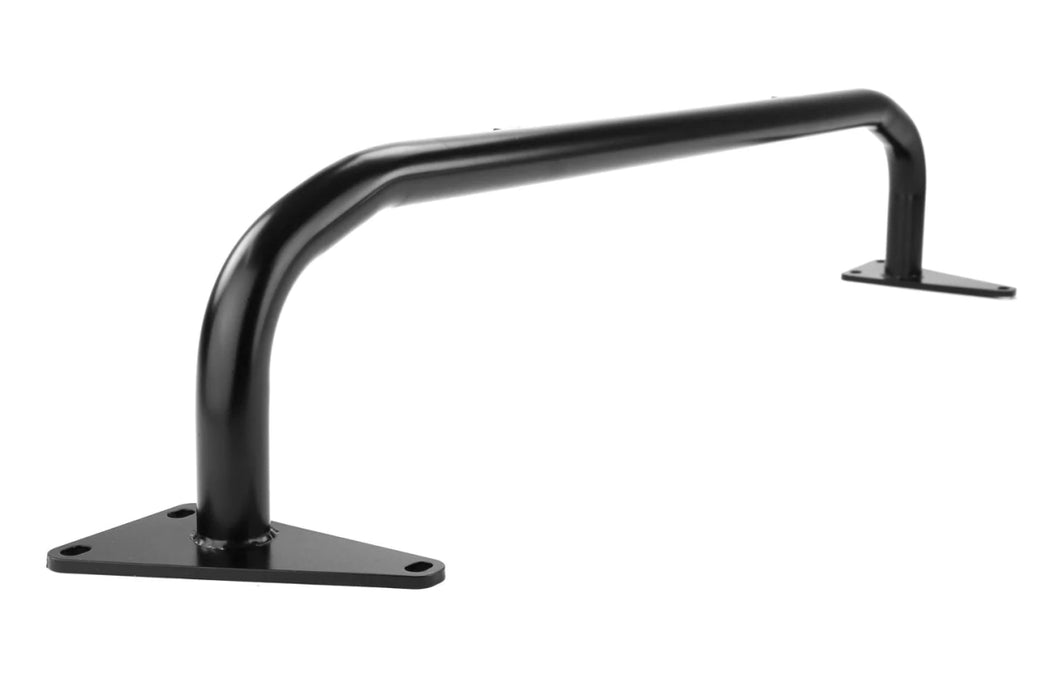

For hassle-free installation, the kit includes an application-specific crash bar that supports the intercooler and mounts using factory points—no drilling, cutting, or bumper modification required. Every bracket, coupler, and clamp is included for a clean, complete setup, and the kit pairs perfectly with the Mishimoto Performance Air Intake for even greater cooling potential.

Tested on a 265 whp Stage 2 WRX, this intercooler delivered significant intake temperature reductions and has been flow tested to support over 600 whp.

Features

• Massive 28" core delivers maximum cooling efficiency
• Smooth cast, CFD-tested end tanks for unrestricted airflow
• Hot-side piping: 2.25" mandrel-bent aluminum for fast turbo response
• Cold-side piping: 2.5"–2.75" mandrel-bent aluminum to match throttle body size
• CNC-machined turbo flange ensures a leak-free seal
• Direct-fit crash bar included—no cutting or drilling required
• Includes all brackets, couplers, and clamps for a complete installation
• Designed to pair with the Mishimoto Performance Air Intake
• Proven AIT reduction on a 265 whp Stage 2 WRX
• Flow tested to support 600+ whp

This part is legal for sale and use on Emissions Controlled Vehicles in all 50 states when used in accordance with the manufacturer's application guide because it has a California Air Resources Board (CARB) Executive Order (EO) number: D-759

Includes:

• (1) Bar-and-Plate Intercooler
• (1) Steel Crash Bar w/Mounting Hardware
• (2) Hot-Side Intercooler Pipes
• (2) Cold-Side Intercooler Pipes
• (1) Air Intake Bracket

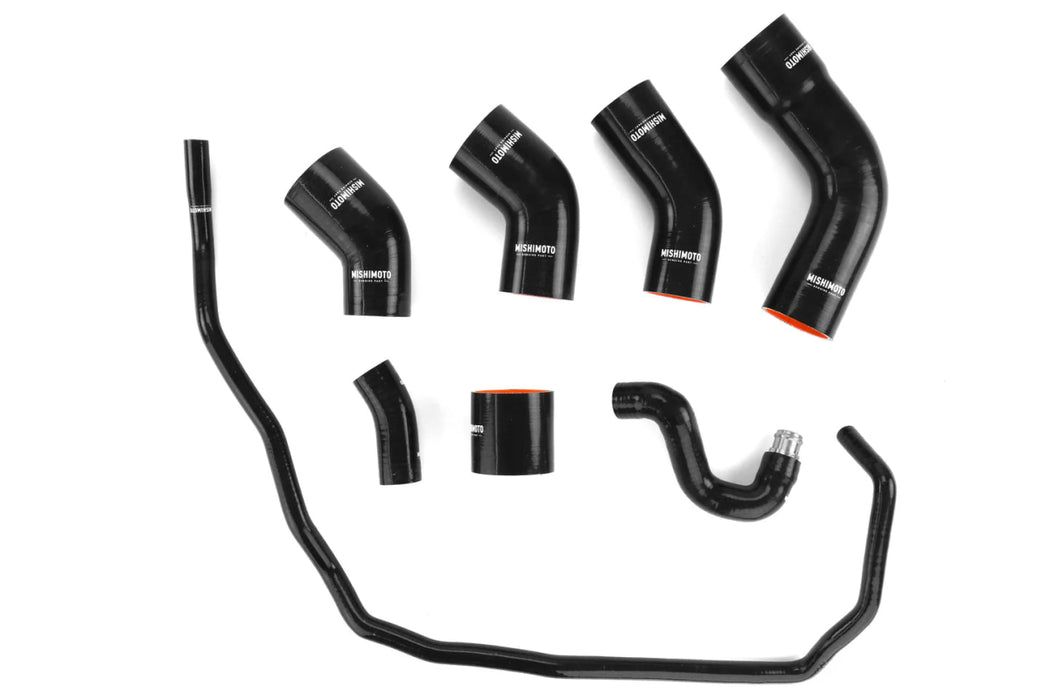

• (1) 2.25-in 45-degree Coupler
• (1) 2.25-in to 2.75-in 45-degree Transition Coupler
• (1) 2.5-in to 2.75-in 55 -degree Transition Coupler
• (1) 2.5-in to 2.75-in 65 -degree Transition Coupler
• (1) 3.00-in Straight Coupler
• (1) BPV Recirculation Hose
• (1) BPV Vacuum Hose
• (1) 30-45mm Worm Gear Clamp
• (2) 1.75-in T-bolt Clamps
• (3) 2.5-in T-bolt Clamps
• (2) 2.75-in T-bolt Clamps
• (5) 3-in T-bolt Clamps
