Mishimoto Aluminum Transmission Pan Most Ford 10R60 / 10R80 Models - Gunmetal Gray | Enhanced Cooling | Transmission Pan Upgrade
Overview
The Mishimoto Aluminum Transmission Pan is a direct-fit, high-performance replacement designed specifically for Ford 10R60 and 10R80 transmissions found in popular models such as the Bronco, Ranger, F-150, and Mustang. This upgrade enhances your vehicle’s transmission system by improving cooling efficiency and increasing fluid capacity, which contributes to smoother shifting and longer transmission life. It is ideal for enthusiasts and daily drivers alike who want a reliable and durable transmission pan that goes beyond the factory design.

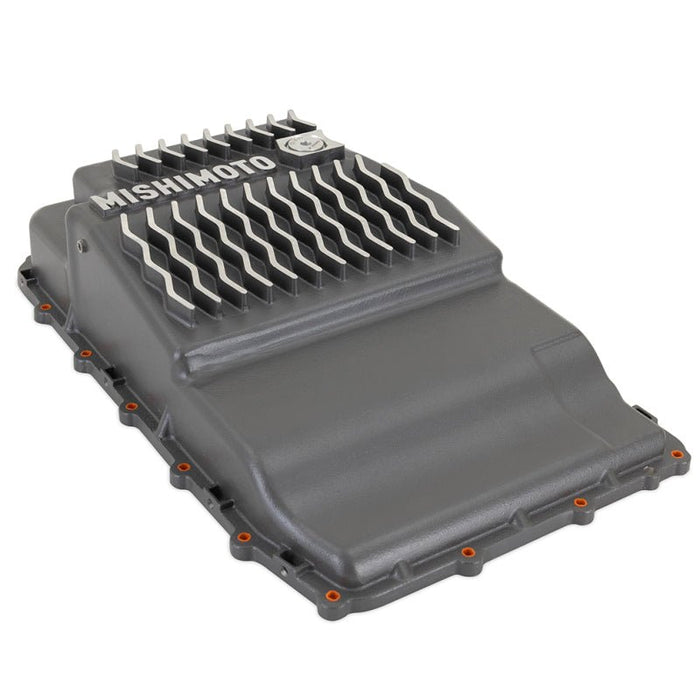

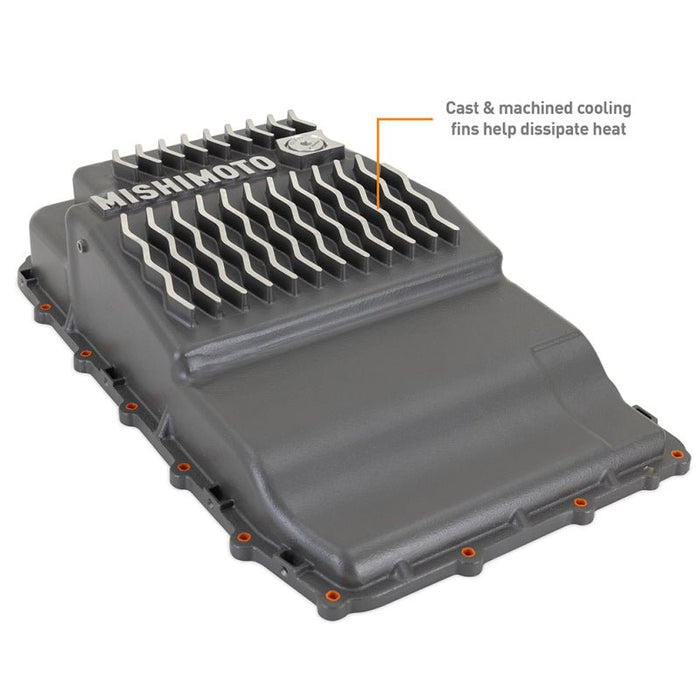

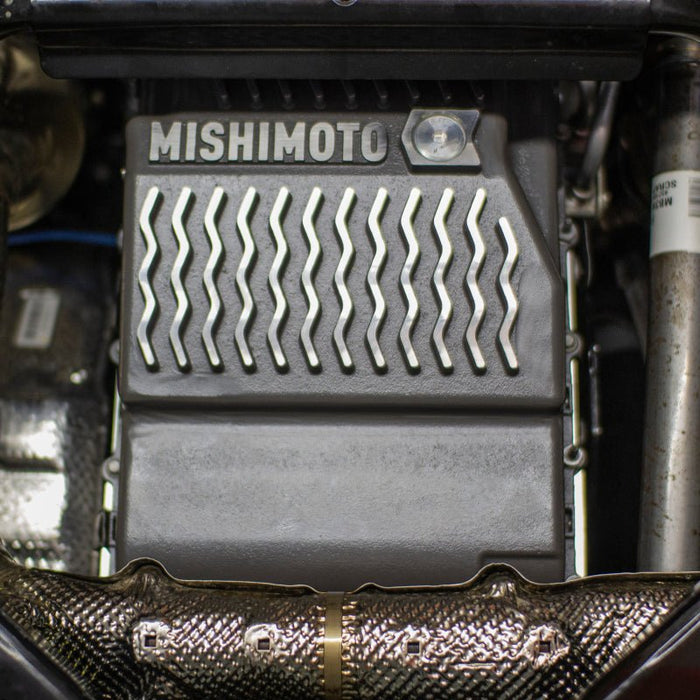

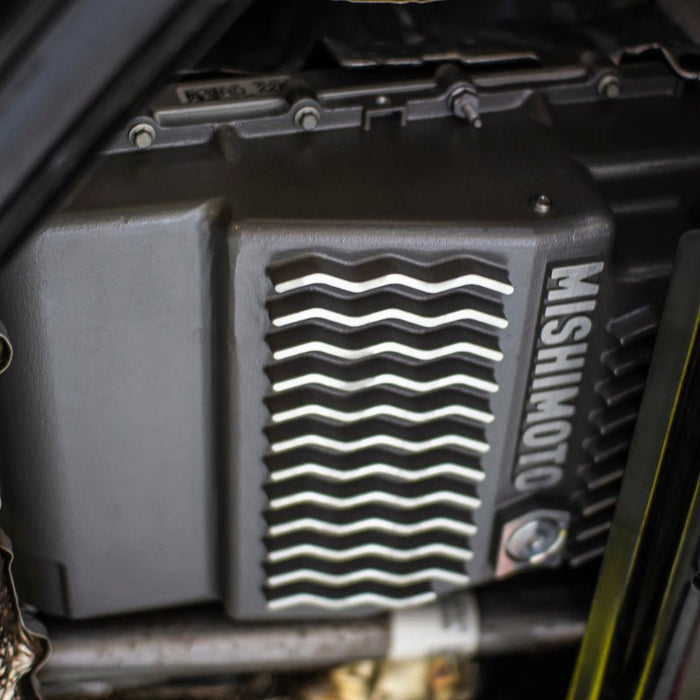

Crafted from high-quality cast aluminum and finished with a durable Gunmetal Gray powder coat, this transmission pan combines robust construction with a sleek aesthetic. The design incorporates bottom ribs for structural strength and improved heat dissipation, while internal baffles reduce fluid sloshing during operation. Mishimoto’s precision-machined dovetail groove and O-ring seal eliminate the need for messy sealants, ensuring a clean and secure installation every time.
By adding an extra 2 quarts of automatic transmission fluid (ATF), this pan helps maintain optimal transmission temperatures and performance under demanding conditions. The inclusion of a magnetic drain plug and a 1/8-inch NPT port for temperature sensors makes maintenance and monitoring straightforward. This upgrade is a practical choice for Ford owners seeking enhanced transmission durability and reliability without compromising ease of installation or serviceability.
Features & Specifications
This Mishimoto Aluminum Transmission Pan is engineered for Ford 10R60 and 10R80 transmissions and features a powder-coated Gunmetal Gray finish. Constructed from cast aluminum, it delivers improved cooling and increased fluid capacity for enthusiasts seeking enhanced transmission performance and longevity.
-
Brand: Mishimoto
-
Product: Aluminum Transmission Pan Most Ford 10R60 / 10R80 Models - Gunmetal Gray
-
Part Number: MMTP-RGR-19
-
Fitment: Ford 10R60 / 10R80 transmissions (Bronco, Ranger, F-150, Mustang)
-
Material: Cast Aluminum
-
Finish: Gunmetal Gray Powder Coat
-
Construction: Cast with precision-machined dovetail groove
-
Origin: Not specified
-
Fluid Capacity Increase: +2 Quarts ATF
-
Seal Type: O-ring with dovetail groove
-

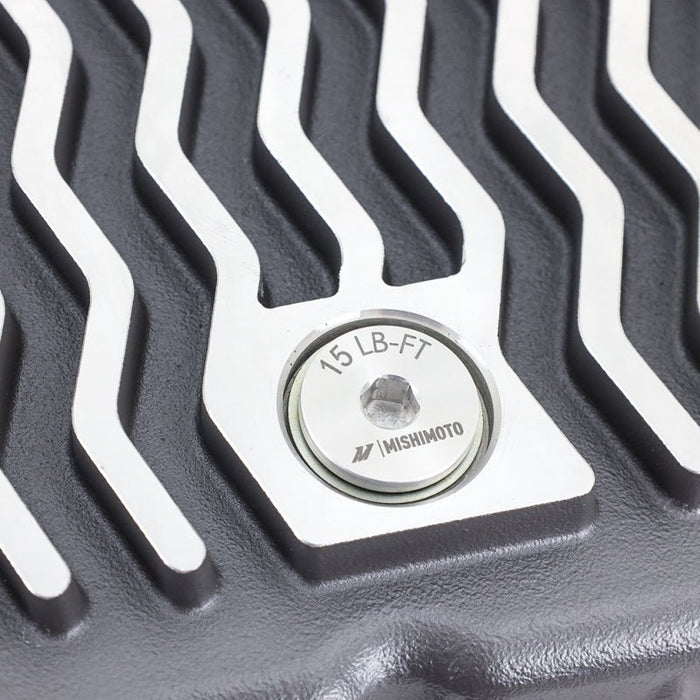

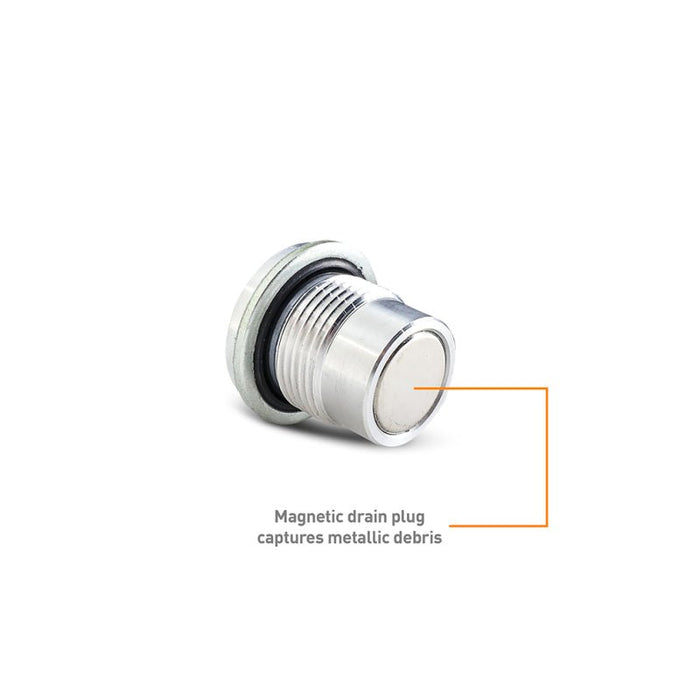

Drain Plug: Magnetic
-

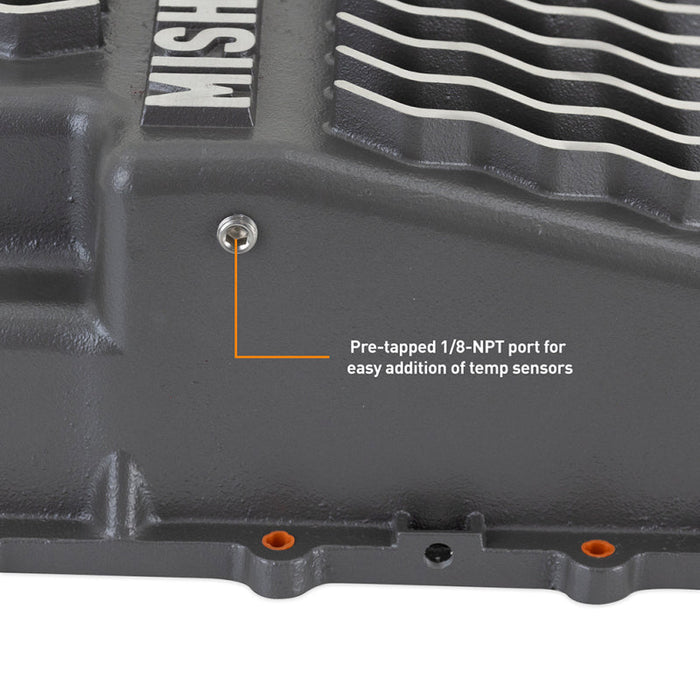

Sensor Port: 1/8-inch NPT port and plug for temperature sensor
-

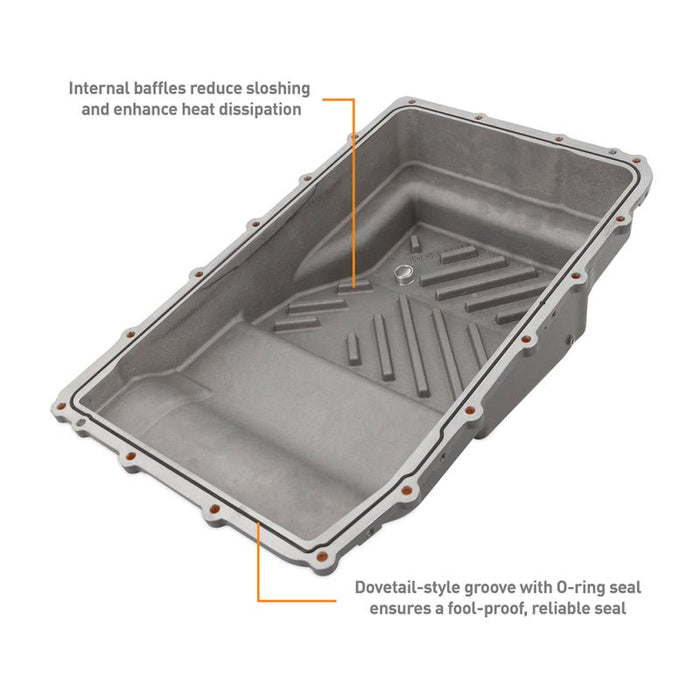

Baffle Design: Internal baffles to reduce fluid sloshing
-

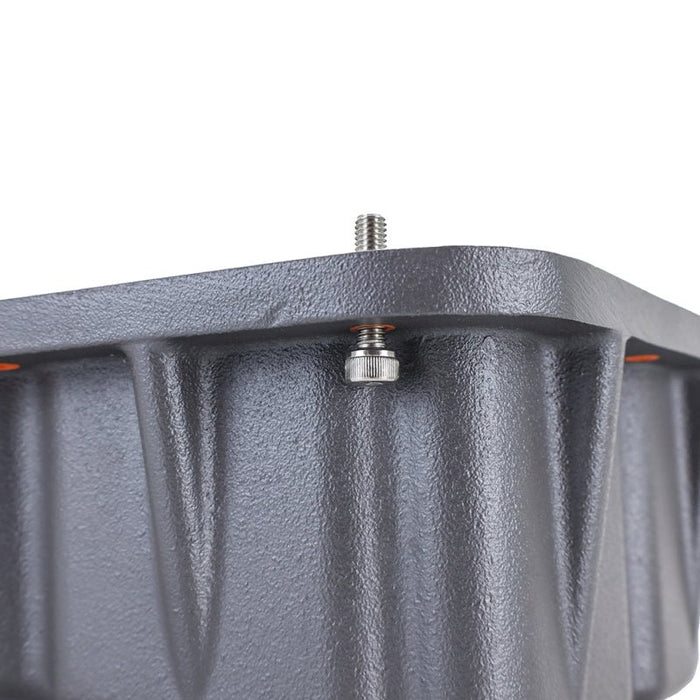

Bolt Retainers: Pre-installed for easy installation
Key Benefits
-
Performance: Improved cooling efficiency helps maintain optimal transmission temperatures for smoother shifting and extended transmission life.
-
Durability: Robust cast aluminum construction with powder-coated finish resists corrosion and damage from road debris.
-
Fitment: Direct bolt-on design with precision-machined dovetail groove and O-ring seal ensures a leak-free, hassle-free installation.
-
Serviceability: Magnetic drain plug and sensor port simplify fluid changes and temperature monitoring for proactive maintenance.
-
Capacity: Adds 2 extra quarts of ATF, improving fluid volume for better heat dissipation and transmission protection.
-

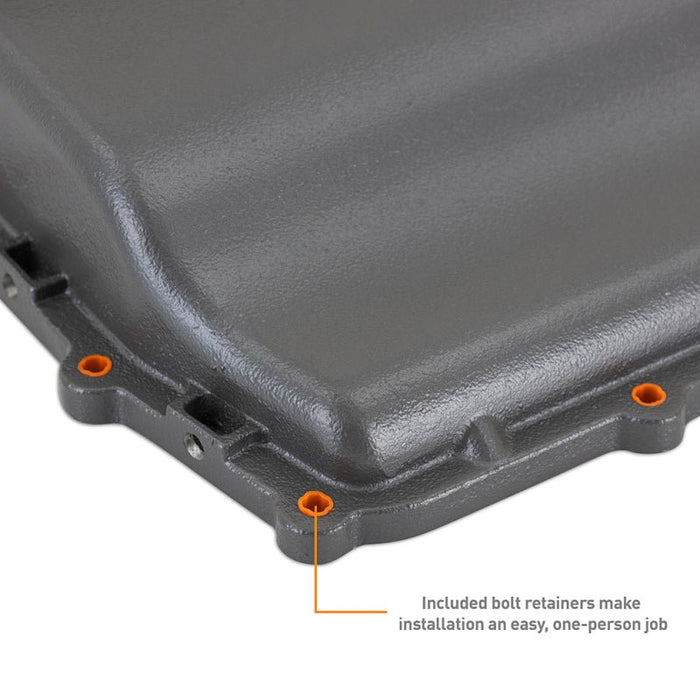

Installation Ease: Pre-installed bolt retainers hold fasteners in place, reducing frustration and mess during installation.
What's Included
- 1× Mishimoto Aluminum Transmission Pan - Gunmetal Gray

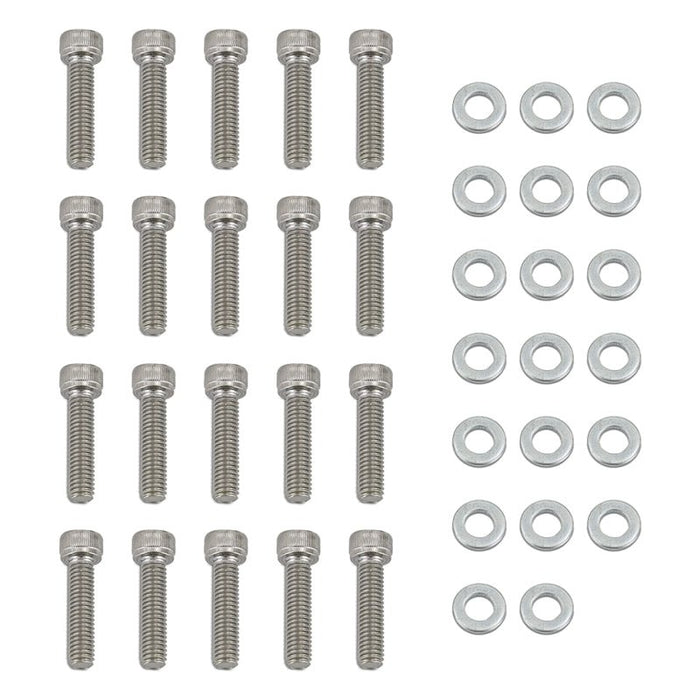

- Pre-installed bolt retainers
- Magnetic drain plug
- 1/8-inch NPT port plug for temperature sensor
- Installation instructions
Installation & Compatibility
This transmission pan is designed for direct bolt-on installation on Ford 10R60 and 10R80 transmissions, making it a straightforward upgrade for experienced DIYers and professional installers alike. The pre-installed bolt retainers simplify the process by holding bolts in place during installation, minimizing the risk of dropped fasteners and fluid spills. No special tools beyond standard hand tools are required. The O-ring seal eliminates the need for sealants, reducing installation time and potential leaks. While no modifications are necessary, it is important to verify compatibility with your specific vehicle model and transmission variant before purchase.
-
Professional Installation: Recommended for those unfamiliar with transmission service
-
Modifications Required: None
-
Verify Compatibility: Confirm fitment for your specific Ford model and transmission type
