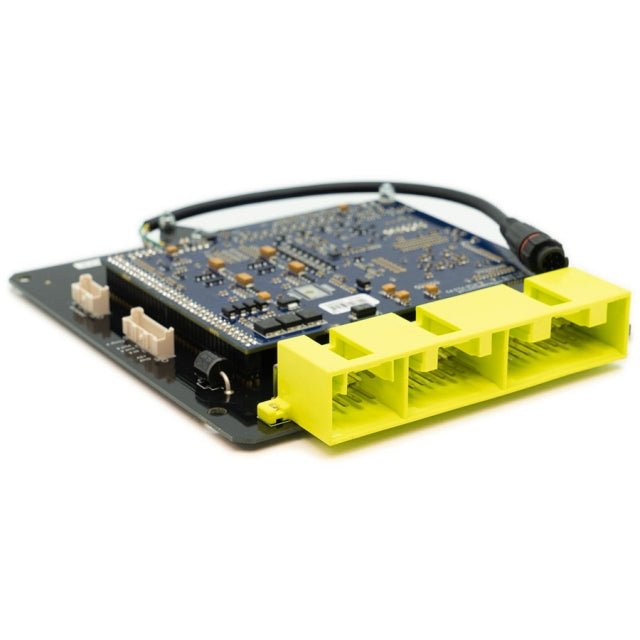

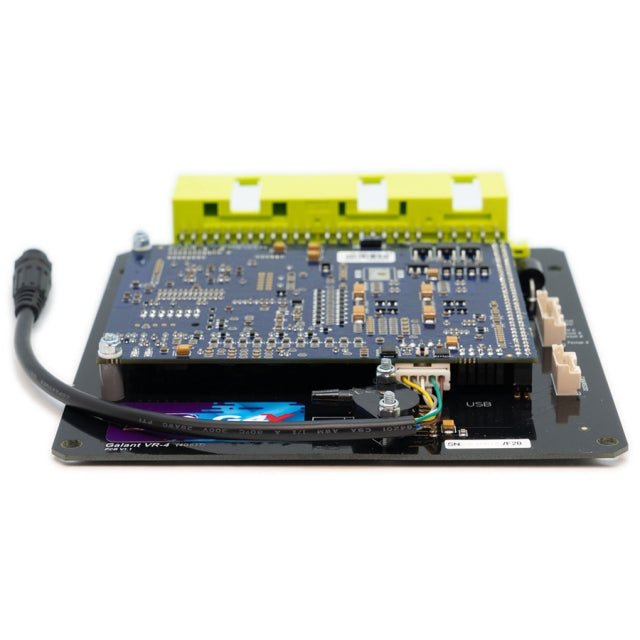

Link PlugIn ECU VR4Link - VR4X - Mitsubishi Galant VR4 4G63T 87-92

NOTE: All Link ECUs are shipped "locked" for your security. Only Link ECU Dealers can access the unlock codes using the ECU Serial Number. Please contact us via e-mail or phone with your serial number once you receive your order. We can then give you the unlock code to activate the LinkECU.

This ECU is designed for the Vr4 4G63T engine.

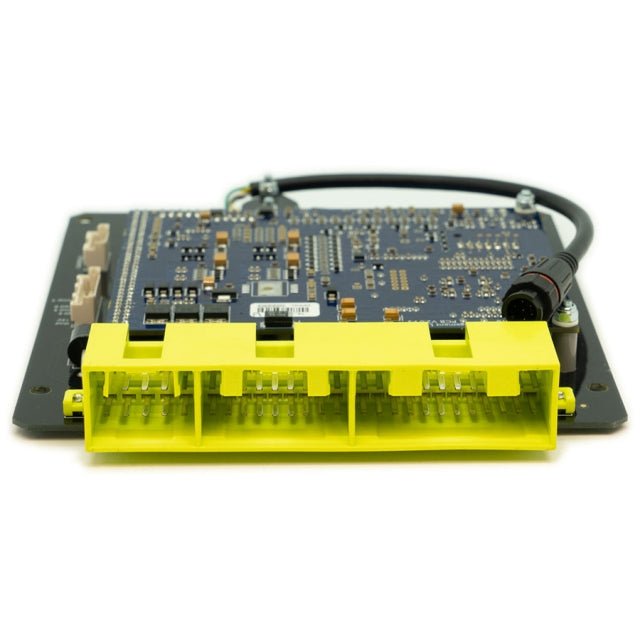

- Please check your connector matches the header in the listed photo before purchasing.
- This ECU works for manual transmissions only.
- Includes onboard 4 bar or 7 bar MAP sensor.
- Knock control not available on this ECU.
- Most factory features are supported.
- Check the features tab for I/O expansion options.
Suitable Applications: -

- Mitsubishi Galant VR-4 E38A (1987-1992) with 4G63T engine
- Mitsubishi Galant VR-4 E39A (1987-1992) with 4G63T engine
- 1G DSM with 4G63T engine

G4X PlugIn Key Features (where applicable):
- Up to 6D fuel and ignition mapping
- Precision closed loop cam control (four cam, independent control)
- Sequential fuel delivery
- Digital triggering, all OEM patterns
- OEM idle hardware supported
- 5D boost control with three switchable tables
- Motorsport features - antilag, launch, flat shift
- Continuous barometric correction (on board)
- CAN port
- QuickTune - automated fuel tuning
- Individual cylinder correction
- USB tuning cable included
- Stats recording into on-board memory
- Gear compensations for spark, boost and fuel
- Real time selectable dual fuel, ignition and boost maps
- Sync and crank sensors can be a combination of Hall effect, variable reluctance or optical
- Boost control referenced to gear, speed or throttle position
- 512 mega bytes data logging memory
- Staged injection
- Knock with "windowing"
I/O Expansion Options
The following expansion connector inputs/outputs are provided:
Expansion Connector 1
Gnd - Sensor Ground Only
+5V Out - Low Current +5V Supply
DI 6 - Digital Input for switching functions.
An Volt 5 - Analog 0-5V input
An Volt 6 - Analog 0-5V input
An Temp 3 - Temperature sensor input
Expansion Connector 2
Gnd - Sensor Ground Only
+5V Out - Low Current +5V Supply
Aux 9 - EThrottle - can't be used as an Aux out
Aux 10 - Auxiliary Output
An Volt 6 - Analog 0-5V input
An Volt 7 - Analog 0-5V input
An Volt 9 - Analog 0-5V input
An Volt 10 - Analog 0-5V input
