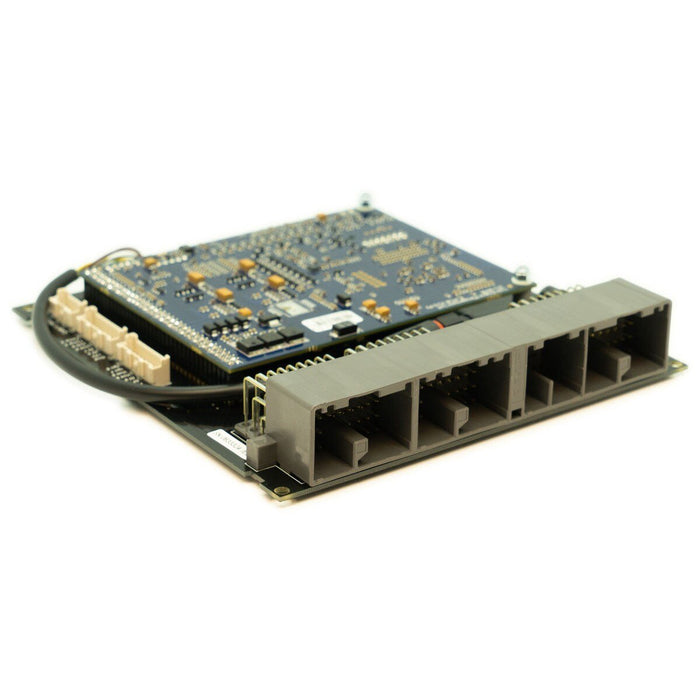

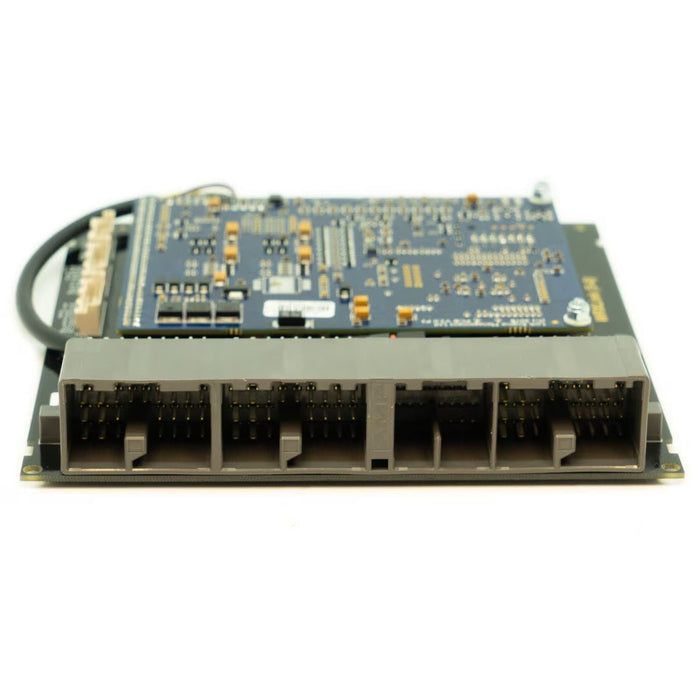

Link Plugin Standalone ECU WRXLink "WRX6X" for use w/ JDM V.5 / V.6 EJ20 Engine

G4X PlugIn ECUs offer the latest in engine management technology, designed to easily maximize the potential from your car.

Link Engine Management is a global leader in motorsport electronics and performance technology. We specialise in the development, manufacture and marketing of engine control units (ECUs) built to manage motorsport and powersport vehicles.

This ECU fits inside the factory OEM enclosure. Installation of the processing unit is a breeze, with no alteration of the factory wiring loom required for the models listed below.

• Please check your pinout matches the header in the listed photo before purchasing.

• Air temp sensor highly recommended.
• Most factory features are supported.
• Check the features tab for I/O input & output expansion options

Suitable Applications for 228-4000 automotive computer unit:

• GC8F
• GC8G
• WRX and STI from 09/1998 to 08/00
• MY99 & MY00
• Designed for the WRX V5-6 EJ20 with manual transmissions only.

Note:

• This will not be compatible with USDM Impreza RS Models.
• V1.4 onwards of this Plug-in features a new 4 pin powered CAN connector and cannot use the old CANPCB cable for CAN connection.  Use the CANJST4 (Code 101-0198) cable for connecting CAN devices.  This new 4 pin port and cable provides not only the CAN connection, but also a protected 12V power supply and ground for powering the CAN devices.  The power supply is protected by a self-resetting fuse rated at 3A continuous.

Subaru WRX & STI V5-6 Installation Manual
