IAG Performance PTFE Fuel Line Kit For Use w/ COBB Flex Fuel Sensor 2006-2007 WRX / 2006-2007 STI

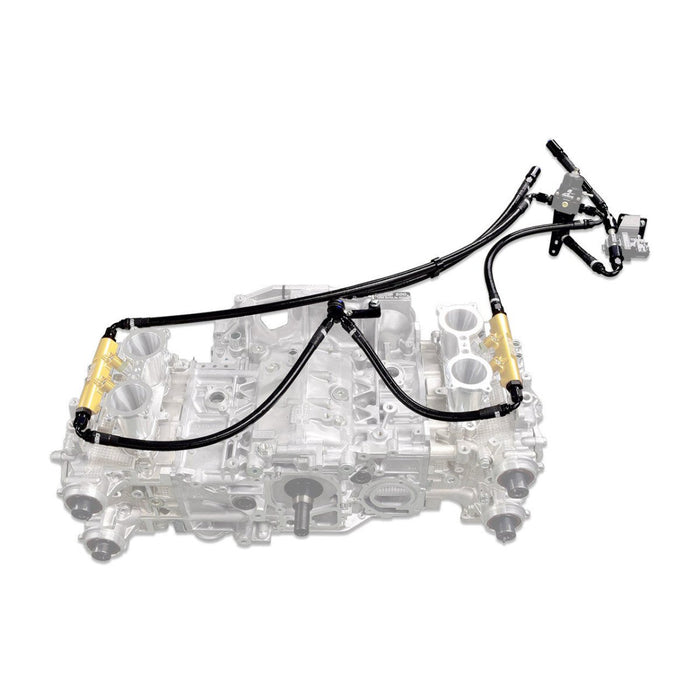

This IAG Performance PTFE Fuel Line Kit is designed for use with COBB Flex Fuel Sensors, Aeromotive Fuel Pressure Regulators, and IAG Top Feed Fuel Rails (sold separately). Constructed from Fragola 6000 series PTFE hose, stainless steel reinforced and wrapped in a black nylon cover, the lines are ethanol-safe, resist heat and corrosion, and prevent scratches. Rated for 2,000 psi working pressure and 8,000 psi burst pressure, they reliably handle demanding fuel system applications. Pre-assembled to precise lengths for 2006-2007 WRX and STI models, installation is quick and straightforward.

Features:

• PTFE resists heat, corrosion, and fuel vapor permeation.
• Eliminates fuel odors common with traditional hoses.
• Custom fittings designed to work with COBB Flex Fuel Sensors.
• Pre-assembled to application-specific lengths for easy installation.

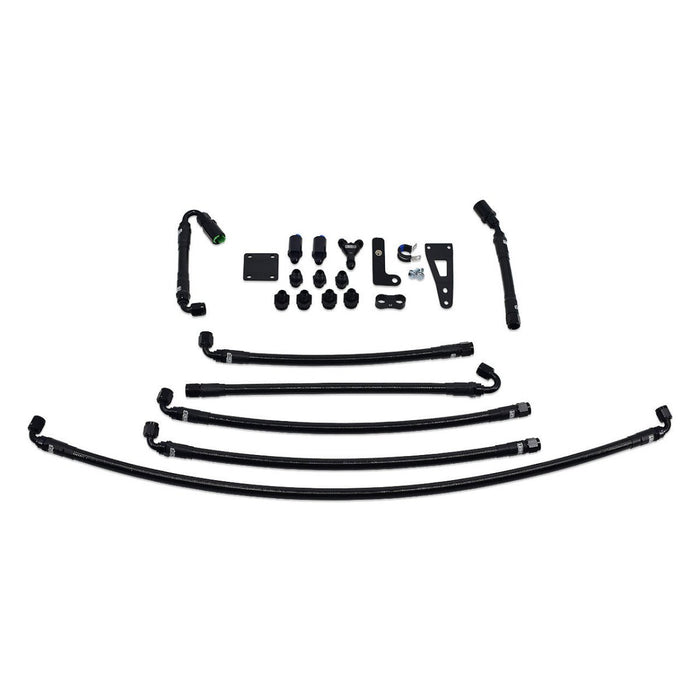

Includes:

• (x7) PTFE Fuel Lines
• (x1) Fuel Line Spacer Bracket
• (x1) Aeromotive FPR Specific Bracket
• (x1) Fuel Line "Y" Fitting
• (x1) Y Fitting Bracket
• (x1) Adel Clamp for Fuel Line Hose / Bracket
• (x1) Torx Head Screw for Adel Clamp
• (x4) AN Fuel Rail Fittings
• (x3) AN FPR Fittings
• (x2) OEM Fuel Hard Line Adapter Fittings
• (x1) Flex Fuel Sensor Bracket

Notes:

• IAG Top Feed Fuel Rails are required for installation
• Aftermarket TGV Housings are required for installation.
• The included bracket is designed to safely mount an Aeromotive Fuel Pressure Regulator (PN# 13138 - Sold Separately) on the driver side strut tower, replacing the factory regulator.
• COBB Flex Fuel Sensor (Sold Separately)

Installation Instructions
