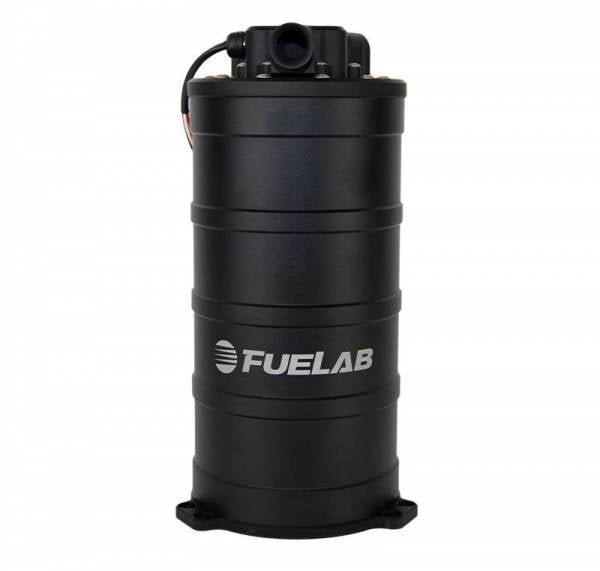

Fuelab H/E Series 290mm Tall Fuel Surge Tank System 1500 HP Brushless Twin Screw Pump Speed Controllable

Fuelab H/E Series 290mm Tall Fuel Surge Tank System w/ Brushless Twin Screw Pump | 2.7L Capacity | High-Flow Fuel Delivery System

Overview

The Fuelab H/E Series 290mm Tall Fuel Surge Tank System is a high-capacity 2.7-liter fuel surge tank designed to ensure consistent fuel delivery under demanding driving conditions. Equipped with a speed-controllable, twin screw DC brushless fuel pump capable of flowing up to 600 liters per hour at 45 psi, this system is ideal for Subaru enthusiasts seeking reliable fuel supply for high-performance builds or track use. Its universal fitment makes it a versatile upgrade for a wide range of Subaru platforms and other vehicles requiring enhanced fuel management.

Engineered with precision, the surge tank features billet aluminum construction with O-ring seals and -8AN fuel ports for secure, leak-free connections. The integrated controller supports pulse width modulation (PWM) speed control, allowing seamless compatibility with popular aftermarket engine management systems such as AEM, Haltech, and Megasquirt. This design philosophy prioritizes durability, efficiency, and adaptability, ensuring the system meets the rigorous demands of performance driving while maintaining ease of integration.

By preventing fuel sloshing and maintaining a ready volume of fuel near the pump, the Fuelab surge tank system eliminates fuel starvation during aggressive cornering, acceleration, or braking. This is critical for Subaru owners pushing their vehicles to the limits, as it supports consistent power delivery and engine reliability. The system’s compatibility with pump gas, racing gasoline, and E85 further enhances its appeal for tuners and racers focused on maximizing power potential.

Features & Specifications

This Fuelab fuel surge tank system is engineered for universal fitment and features a 2.7L capacity with a brushless twin screw pump rated for 600 lph at 45 psi. Constructed from billet aluminum with O-ring seals and -8AN fuel ports, it delivers reliable, high-flow fuel delivery for Subaru enthusiasts seeking consistent fuel supply and enhanced performance.

• Brand: Fuelab
• Product: H/E Series 290mm Tall Fuel Surge Tank System w/ Brushless Twin Screw Pump
• Part Number: 61714
• Fitment: Universal
• Material: Billet Aluminum
• Finish: Natural Aluminum
• Construction: CNC Machined with O-ring Seals
• Origin: Not Specified
• Rated Volume: 2.7 Liters
• Fuel Pump Type: Twin Screw DC Brushless
• Fuel Pump Flow Rate: 600 lph @ 45 psi
• Maximum Pressure: 125 psi
• Fuel Ports: -8AN
• Controller: Integrated PWM Speed Control
• PWM Frequency Compatibility: 100Hz to 5000Hz
• Compatible Fuels: Pump Gasoline, Racing Gasoline, E85
• Return Line: Required (returns excess fuel to tank)
• Warranty: Limited Lifetime

Key Benefits

• Fuel Delivery Reliability: Maintains consistent fuel supply during high-G maneuvers, preventing starvation and power loss.
• High Flow Capacity: 600 lph pump supports high horsepower builds and aggressive tuning strategies.
• Universal Fitment: Designed to integrate with most Subaru platforms and other vehicles with minimal modifications.
• Advanced Control: PWM speed control allows precise pump operation and compatibility with a wide range of aftermarket ECUs.
• Durable Construction: Billet aluminum and O-ring seals ensure leak-free, long-lasting performance under demanding conditions.
• Fuel Compatibility: Supports pump gas, racing gasoline, and E85, providing flexibility for various fuel strategies.

What's Included

• 1× Fuelab H/E Series 290mm Tall Fuel Surge Tank System
• 1× Twin Screw DC Brushless Fuel Pump (Integrated)
• Installation instructions

Installation & Compatibility

Installation of the Fuelab surge tank system requires moderate mechanical skill and familiarity with fuel system components. The unit mounts externally and connects to the existing fuel system using -8AN fittings; a return line to the OEM fuel tank is mandatory to handle excess fuel flow. No major modifications to the original fuel tank or module are necessary, making it a practical upgrade for performance-focused Subaru owners. Professional installation is recommended to ensure proper integration and safety compliance. The integrated PWM controller requires tuning or ECU compatibility to optimize pump speed and performance.

• Professional Installation: Recommended
• Modifications Required: None to OE tank; return line required
• Verify Compatibility: Confirm fitment and ECU PWM support for your specific Subaru model
