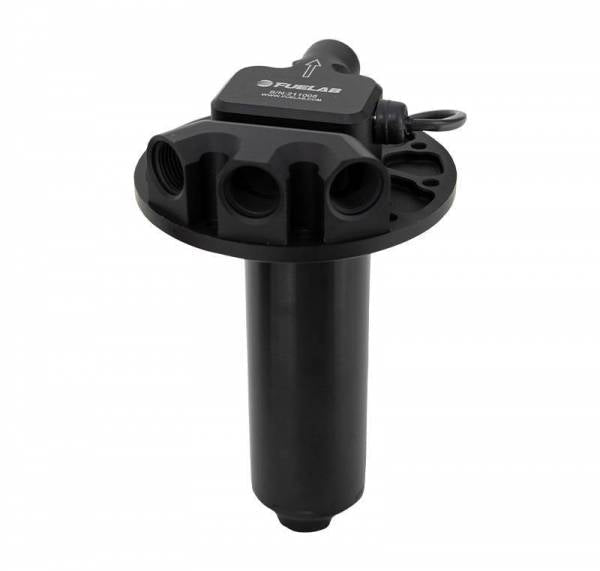

Fuelab H/E Series 2800 HP SAE Plate Mount Brushless Screw Pump 1100LPH

Fuelab H/E Series 2800 HP SAE Plate Mount Brushless Screw Pump | 1100 LPH at 45 PSI | High-Efficiency Fuel Pump

Overview

The Fuelab H/E Series 2800 HP SAE Plate Mount Brushless Screw Pump is a high-performance fuel pump designed for serious Subaru enthusiasts and racers who demand reliable, efficient fuel delivery for high-horsepower builds. Rated to support up to 2800 horsepower, this pump delivers 1100 liters per hour at 45 PSI with a maximum operating pressure of 125 PSI, making it ideal for turbocharged or high-output naturally aspirated engines running gasoline, diesel, methanol, or ethanol fuels. Its universal fitment and SAE 10-bolt flange mount allow easy integration into custom fuel cells or fabricated reservoirs.

Engineered with a twin screw rotor pumping mechanism and a lightweight, brushless DC motor, the Fuelab H/E Series pump emphasizes efficiency and durability. The brushless motor design eliminates wear-prone brushes and dynamic shaft seals, reducing maintenance and improving longevity even with low-sulfur diesel or aggressive fuels. The billet aluminum construction with MIL-A-8625 Type II anodizing ensures corrosion resistance and structural integrity under demanding conditions.

For Subaru owners pushing the limits of power, this pump offers superior priming capabilities and resistance to cavitation (vapor lock), critical for consistent fuel delivery during spirited driving or track use. Its compatibility with pulse width modulation (PWM) control from popular aftermarket engine management systems like AEM, Haltech, and Megasquirt allows precise fuel flow tuning, optimizing performance and efficiency for your Subaru WRX, STI, or other high-output platform.

Features & Specifications

This Fuelab H/E Series brushless screw pump is engineered for universal fitment and features a 1100 LPH flow rate at 45 PSI with a maximum pressure of 125 PSI. Constructed from billet aluminum with anodized finish, it delivers high efficiency and durability for Subaru enthusiasts seeking reliable, high-capacity fuel delivery for builds up to 2800 HP.

• Brand: Fuelab
• Product: H/E Series 2800 HP SAE Plate Mount Brushless Screw Pump
• Part Number: 93905
• Fitment: Universal
• Material: Billet Aluminum
• Finish: MIL-A-8625 Type II Anodized
• Construction: Billet Aluminum, Brushless DC Motor
• Origin: Not specified
• Power Support: Up to 2800 HP
• Flow Rate: 1100 LPH at 45 PSI
• Max Operating Pressure: 125 PSI
• Fuel Compatibility: Gasoline, Diesel, Methanol, Ethanol
• Motor Type: Brushless DC, Wet Motor Design
• Electrical System: 12 to 16 Volt Compatible
• Mounting: SAE 10-Bolt Flange Mount
• Seals: Fluorosilicone Static Seals
• PWM Compatibility: 100Hz to 5000Hz with popular aftermarket ECUs

Key Benefits

• Performance: Supports up to 2800 HP, ensuring ample fuel delivery for high-output Subaru builds.
• Efficiency: Brushless motor design reduces current draw and noise, improving electrical system reliability.
• Durability: Billet aluminum construction with anodized finish resists corrosion and wear under demanding conditions.
• Fuel Compatibility: Compatible with a wide range of fuels including gasoline, diesel, methanol, and ethanol for versatile applications.
• Priming & Reliability: Superior priming capabilities and cavitation resistance prevent vapor lock during aggressive driving.
• Control: PWM compatibility allows precise fuel flow tuning with popular Subaru-compatible aftermarket engine management systems.

What's Included

• 1× Fuelab H/E Series 2800 HP SAE Plate Mount Brushless Screw Pump
• Flange mounting hardware (SAE 10-Bolt pattern)
• Installation instructions

Installation & Compatibility

Installation of the Fuelab H/E Series brushless screw pump requires mounting to a compatible SAE 10-bolt flange fuel cell or fabricated reservoir. The compact, lightweight design simplifies integration, but professional installation is recommended to ensure proper plumbing and electrical connections. No special tools beyond standard fuel system and electrical tools are necessary. This pump is compatible with 12 to 16 volt electrical systems and supports PWM control signals from 100Hz to 5000Hz, enabling seamless integration with popular Subaru aftermarket ECUs such as AEM, Haltech, and Megasquirt. Verify fitment and compatibility with your specific Subaru platform and fuel system setup before installation.

• Professional Installation: Recommended
• Modifications Required: None beyond compatible fuel cell or reservoir flange
• Verify Compatibility: Confirm fitment for your specific Subaru platform and fuel system configuration
