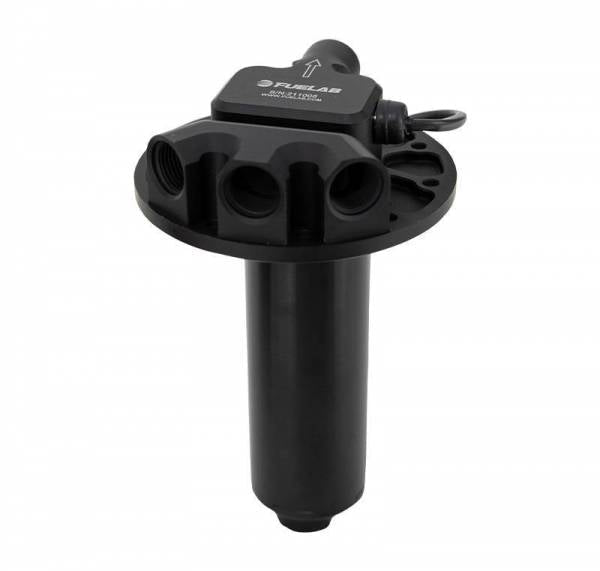

Fuelab H/E Series 1500 HP SAE Plate Mount Brushless Screw Pump 600lph Speed Controllable

Fuelab Brushless Screw Pump H/E Series 1500 HP SAE Plate Mount | 600 LPH @ 45 PSI | High-Efficiency Fuel Pump

Overview

The Fuelab Brushless Screw Pump H/E Series is a high-performance fuel pump engineered to support up to 1500 horsepower, making it an ideal choice for Subaru enthusiasts seeking reliable and efficient fuel delivery for high-output builds. This universal pump is compatible with gasoline, diesel, methanol, and ethanol fuels, offering versatility across a range of applications including turbocharged WRX/STI and naturally aspirated BRZ/GR86 platforms. Its compact SAE plate mount design allows for straightforward integration with fabricated fuel cells or reservoirs.

Designed with a twin screw rotor pumping mechanism and a lightweight brushless DC motor, this pump delivers superior efficiency and durability. The brushless motor minimizes current draw and eliminates wear-prone brushes, ensuring long service life even when running low-sulfur diesel or aggressive fuels. The billet aluminum construction with MIL-A-8625 Type II anodizing provides corrosion resistance and strength, while the fluorosilicone static seals enhance multi-fuel compatibility and longevity.

For Subaru owners pushing the limits of power, the Fuelab H/E Series pump offers excellent priming capabilities and resistance to cavitation, reducing the risk of vapor lock during demanding driving conditions. Its compatibility with pulse width modulation (PWM) systems allows precise fuel flow control when paired with popular aftermarket engine management systems like AEM, Haltech, and Megasquirt. This combination of power, efficiency, and adaptability makes it a top-tier choice for serious Subaru performance builds.

Features & Specifications

This Fuelab Brushless Screw Pump H/E Series is engineered for universal fitment and features a 600 LPH flow rate at 45 PSI with a maximum operating pressure of 125 PSI. Constructed from billet aluminum with anodized finish, it delivers high efficiency and durability for Subaru enthusiasts seeking reliable fuel delivery for high-horsepower applications.

• Brand: Fuelab
• Product: Brushless Screw Pump H/E Series 1500 HP SAE Plate Mount
• Part Number: 93904
• Fitment: Universal
• Material: Billet Aluminum
• Finish: Anodized per MIL-A-8625 Type II
• Construction: CNC Machined, Flange Mounted SAE 10-Bolt Pattern
• Origin: Not Specified
• Flow Rate: 600 LPH at 45 PSI
• Max Operating Pressure: 125 PSI
• Power Support: Up to 1500 HP
• Motor Type: Brushless DC Motor with Neodymium Magnets
• Voltage Compatibility: 8 to 16 volts
• Fuel Compatibility: Gasoline, Diesel, Methanol, Ethanol
• Seal Material: Fluorosilicone Static Seals
• Dimensions: 8" Length, 2" Diameter
• Weight: Less than 2.5 lbs
• PWM Compatibility: 100Hz to 2500Hz with most aftermarket ECUs

Key Benefits

• Performance: Supports up to 1500 HP with consistent 600 LPH flow at 45 PSI for high-output Subaru builds
• Efficiency: Brushless motor design reduces current draw and noise, improving electrical system reliability
• Durability: Billet aluminum construction and fluorosilicone seals ensure long life and multi-fuel compatibility
• Fitment: SAE 10-bolt flange mount allows easy integration with custom fuel cells and fabricated reservoirs
• Compatibility: Works with gasoline, diesel, methanol, and ethanol fuels, ideal for diverse Subaru tuning setups
• Control: PWM compatibility enables precise fuel flow management with popular aftermarket engine management systems

What's Included

• 1× Fuelab Brushless Screw Pump H/E Series 1500 HP SAE Plate Mount
• Installation instructions

Installation & Compatibility

Installation of the Fuelab Brushless Screw Pump requires mounting to a compatible SAE 10-bolt flange fuel cell or fabricated reservoir. The compact and lightweight design facilitates straightforward installation, but professional installation is recommended to ensure proper fuel system integration and electrical connections. No special tools beyond standard automotive equipment are typically needed. This pump is compatible with a wide range of fuels and supports PWM control signals from 100Hz to 2500Hz, making it suitable for use with many aftermarket Subaru engine management systems. Verify fitment and compatibility with your specific Subaru platform and fuel system setup before installation.

• Professional Installation: Recommended
• Modifications Required: None beyond compatible mounting flange and fuel system plumbing
• Verify Compatibility: Confirm fitment for your specific Subaru platform and fuel system requirements
