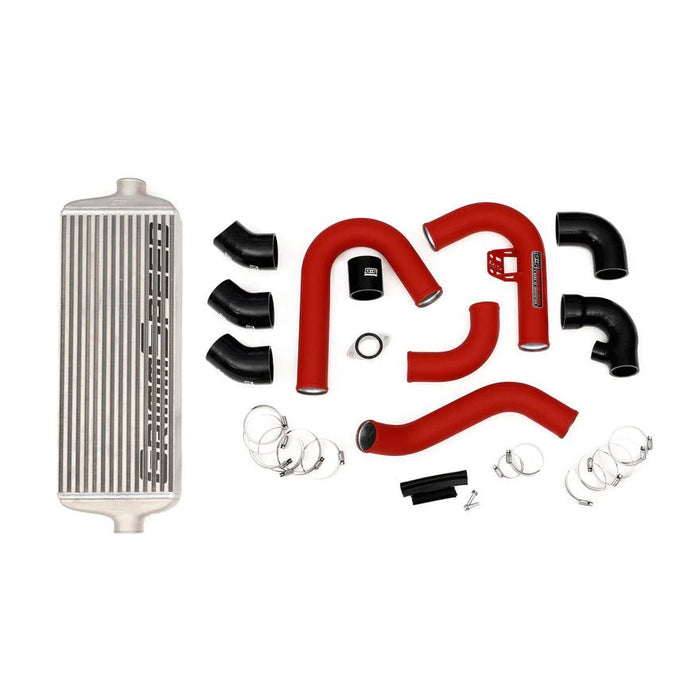

Grimmspeed Front Mount Intercooler Kit Silver Core w/ Red Piping 2015-2021 WRX

GrimmSpeed intercoolers have long set the standard for high-performance heat exchangers—delivering the ideal balance of low pressure drop, high heat rejection, and bulletproof reliability. With years of engineering experience behind us, we’re proud to introduce the intercooler WRX owners have been waiting for: the GrimmSpeed 2015–21 WRX Front Mount Intercooler Kit.

Quick Specs

• 27” x 11” x 4” Cross-Flow Core – Bar-and-plate construction optimized for cooling efficiency and minimal restriction
• Cast Aluminum End Tanks – Balanced, equalized flow with virtually no added pressure drop
• Steel Bolt-On Mounting Brackets – Rigid, adjustable, and designed to stay put even under hard track use
• Minimal Vehicle Modification Required – Only two small undertray ribs and simple splash-guard trimming necessary
• Intake Compatible – Works with factory intake or GrimmSpeed Intake (snorkel removal required)
• Pressure Tested In-House – Cleaned, sealed, and verified for flawless performance
• Raw Aluminum or Satin Black Powdercoat – Choose uncoated for maximum heat dissipation or powdercoat for added protection
• Pre-Applied GrimmSpeed Vinyl Decal – Display it proudly or peel it off—your choice
• No Tune Required – Maintains factory boost behavior and spool characteristics
• Hand-Welded & Inspected in the USA – Built for consistency, durability, and top-tier performance

Intercooler Core

The foundation of any great FMIC is its core—and this one is engineered from the ground up for unmatched performance. Using over a decade of intercooler development, GrimmSpeed created a fully custom cross-flow core with internal and external fin specs tuned for:

• Extremely low pressure drop
• Superior heat rejection
• Consistent performance under everyday and high-demand conditions

The cast end tanks were co-developed with the core to deliver smooth, even airflow across all cylinders. Every unit is designed, welded, pressure-tested, and inspected in the USA to ensure flawless operation.

Fitment was equally important. This kit retains a massive intercooler core without cutting the bumper cover, trimming light housings, or relocating components like the washer tank or coolant reservoir—common issues with other FMIC kits.

Intercooler Piping

A great core demands properly engineered piping. GrimmSpeed’s piping kit features:

• .090”-wall, 2.5” ID 6061 aluminum—strong, lightweight, and heat-dissipating
• Precision routing that avoids unnecessary trimming and retains OEM components
• Maintains factory fog light mounting
• Custom-molded 5-ply silicone couplers
• Stainless Breeze Hi-Torque liner clamps to protect silicone and prevent leaks
• Wrinkle powdercoat finish
• OEM bypass valve placement retained for OE or most aftermarket BPV compatibility
