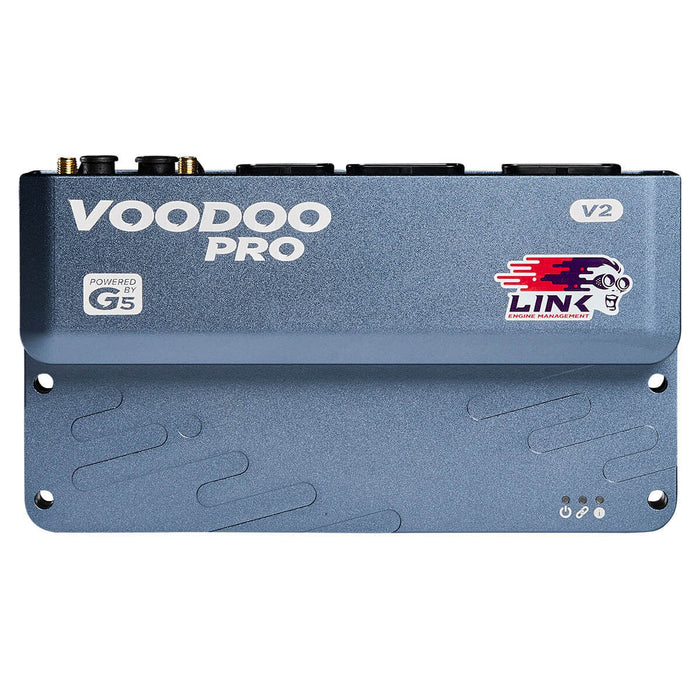

Link ECU G5 Voodoo Pro | Advanced Multi-Injector Control | Standalone Engine Management
Overview
The Link ECU G5 Voodoo Pro ECU is a high-performance standalone engine management system designed for serious Subaru enthusiasts and tuners seeking ultimate control over fuel injection and ignition. This ECU supports up to 12 injector drives and 8 ignition drives, with additional multi-purpose outputs, allowing it to manage complex engine setups including port and direct injection configurations. It is ideal for builds requiring precise fuel and spark control across multiple cylinders, making it a versatile choice for turbocharged, naturally aspirated, or hybrid fuel systems.
Engineered with a focus on flexibility and expandability, the G5 Voodoo Pro features a sealed CNC-machined enclosure and advanced onboard electronics such as dual LSU 4.9 wideband controllers and dual H-Bridge outputs for electronic throttle and wastegate control. Its design philosophy centers on providing tuners with a robust, customizable platform that integrates modern communication protocols including USB-C, Wi-Fi, Ethernet, CAN, and GPS. This ensures seamless data logging, tuning, and real-time monitoring capabilities.
For Subaru owners, this ECU opens up new possibilities in engine management, enabling precise tuning for power gains, efficiency, and reliability. The ability to control both port and direct injection with multiple injector drives supports complex staged injection strategies, which can optimize combustion and performance. The built-in GPS and high-speed data logging further enhance track-day and street tuning experiences, making the G5 Voodoo Pro a comprehensive solution for advanced Subaru engine builds.
Features & Specifications
This Link ECU G5 Voodoo Pro ECU is engineered for multi-cylinder platforms and features 12 injector drives, 8 ignition drives, and 4 multi-purpose outputs. Constructed with a CNC-machined sealed enclosure, it delivers precise and reliable engine management for Subaru enthusiasts seeking advanced fuel and ignition control.
-
Brand: Link ECU
-
Product: G5 Voodoo Pro ECU
-
Part Number: 153-5000
-
Fitment: Universal standalone ECU (vehicle-specific tuning required)
-

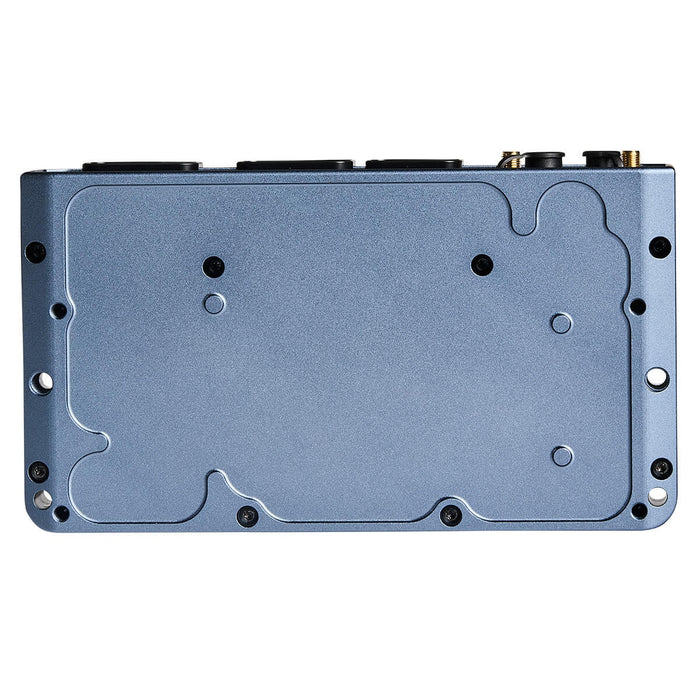

Material: CNC-machined aluminum enclosure
-
Finish: Sealed protective coating
-
Construction: CNC machined, sealed enclosure
-
Origin: Not specified
-
Injector Drives: 12 dedicated injector outputs
-
Ignition Drives: 8 dedicated ignition outputs
-
Multi-Purpose Drives: 4 dual-role injector/ignition/auxiliary outputs (24 total outputs)
-
Auxiliary Outputs: 6 additional outputs
-
Inputs: 10 digital, 4 temperature, 14 analogue, 2 trigger, 2 knock inputs
-
Input/Output Pins: 8 ADIO dual-purpose pins
-
Data Logging: 1GB onboard memory
-

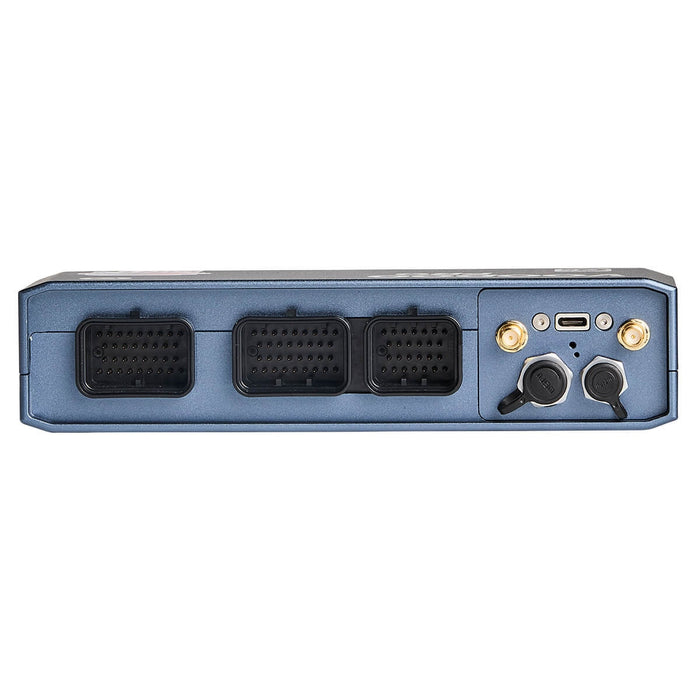

Communication: USB-C, Wi-Fi, Ethernet, Dual CAN, GPS
-
Built-in Sensors: Dual LSU 4.9 wideband controllers
-
Dimensions: 193.5 mm W × 109.2 mm D × 45.0 mm H
-
Weight: 768 g (27 oz)
-
Additional Features: Dual onboard H-Bridges for electronic throttle and low power wastegate control
Key Benefits
-
Performance: Supports complex multi-injector and ignition setups for precise fuel and spark control, enabling optimized power delivery.
-
Flexibility: Highly customizable I/O with 24 total injector/ignition drives and auxiliary outputs to accommodate diverse engine configurations.
-
Connectivity: Multiple communication options including USB-C, Wi-Fi, Ethernet, CAN, and GPS for seamless tuning and data logging.
-
Reliability: Robust CNC-machined sealed enclosure protects sensitive electronics from harsh environments.
-
Integration: Built-in dual LSU 4.9 wideband controllers and H-Bridge outputs simplify installation of electronic throttle and wastegate control.
-
Data Logging: Large onboard memory and high-speed Ethernet enable detailed real-time data capture for track and street tuning.
What's Included
- 1× Link ECU G5 Voodoo Pro ECU

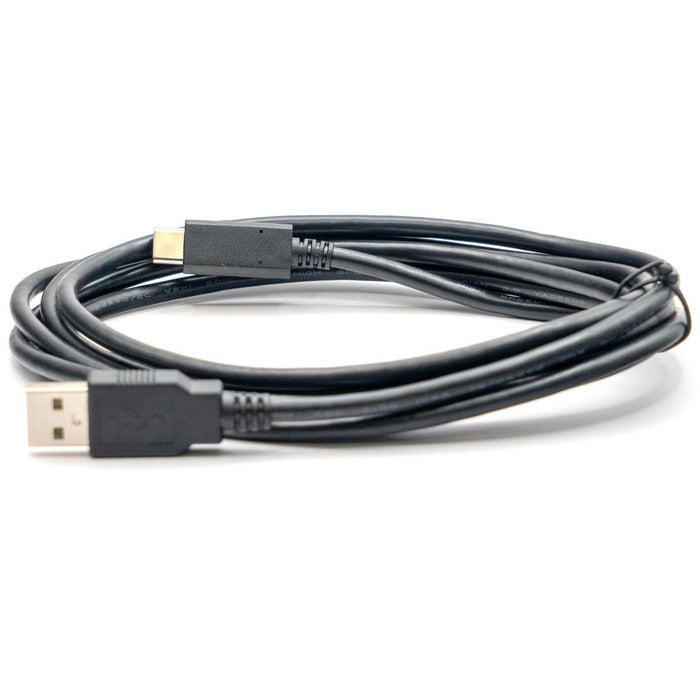

- 1× USB-C Connection Cable

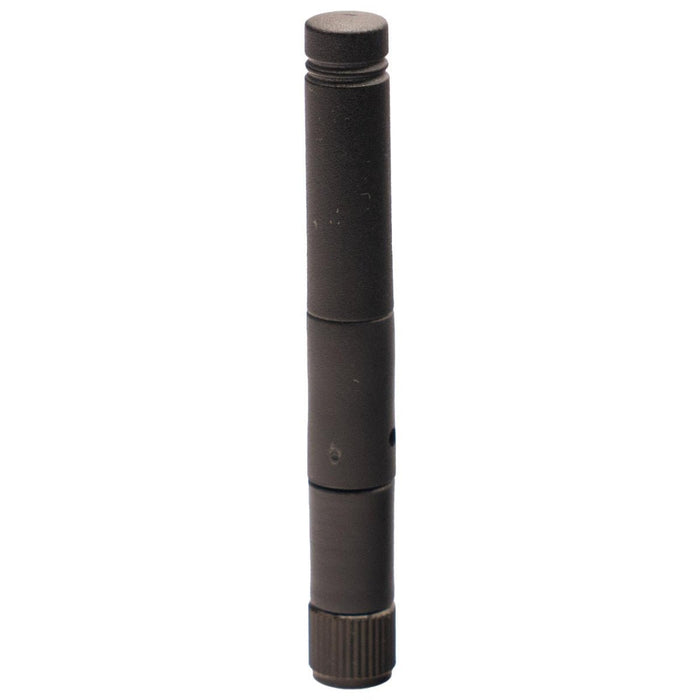

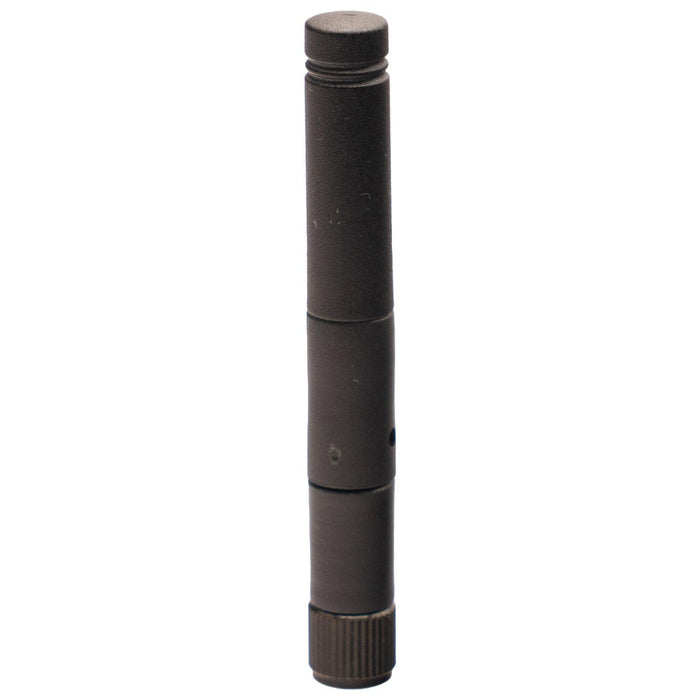

- 1× Wi-Fi Antenna

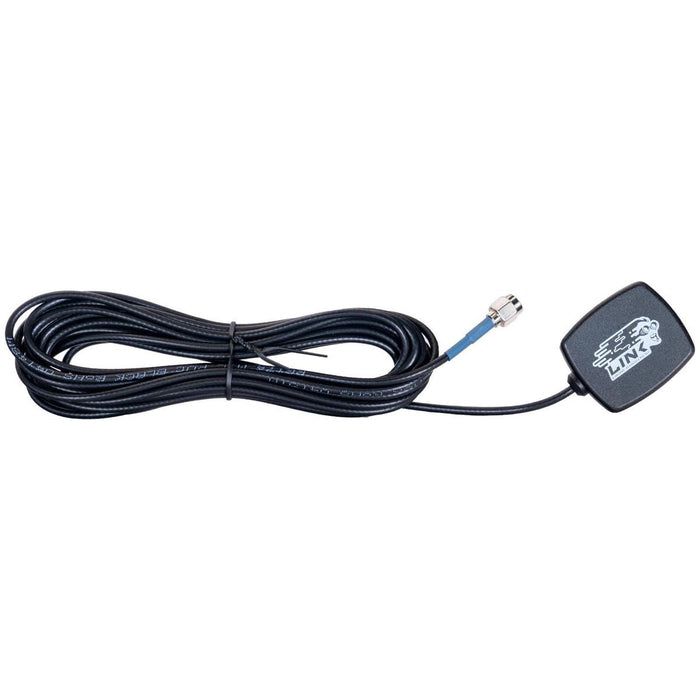

- 1× 4m GPS Antenna (Magnetic or Adhesive Mount)
- USB-C and SMA Dust Covers
- QuickStart Guide (A5)
- Installer I/O Table (A3)
- Mounting Screws
- Link Stickers
Installation & Compatibility
Installation of the Link ECU G5 Voodoo Pro requires professional tuning expertise and familiarity with standalone engine management systems. While the physical mounting and wiring are straightforward for experienced technicians, proper calibration and setup are critical to fully leverage the ECU’s advanced features. The unit supports plug-and-play connectivity via USB-C, Wi-Fi, and Ethernet, but tuning software and a compatible laptop or device are necessary for configuration. This ECU is universal and requires custom tuning for each vehicle application, so consultation with a Link ECU reseller or technical support is recommended to ensure compatibility with your Subaru platform and engine setup.
-
Professional Installation: Recommended
-
Modifications Required: Custom wiring and tuning required
-
Verify Compatibility: Confirm fitment and tuning support for your specific Subaru model and engine configuration
