Forced Performance Green UHF Core Turbo 60mm Cover w/ 8cm Hot Side and Internal Wastegate 2002-2007 WRX / 2004-2021 STI

FP Green UHF™

• Compressor wheel - 76HT
• Flow rating - 61LB per minute
• CW Measurements - 54.8MM Inducer / 76MM Exducer
• UHF TW Measurements - 64MM Inducer / 57MM Exducer
• Compressor Housing - 60MM Stock Style Inlet or 84MM FAP Cover
• Turbine Housing - FP 8CM Turbine Housing
• CHRA - FP Journal Bearing

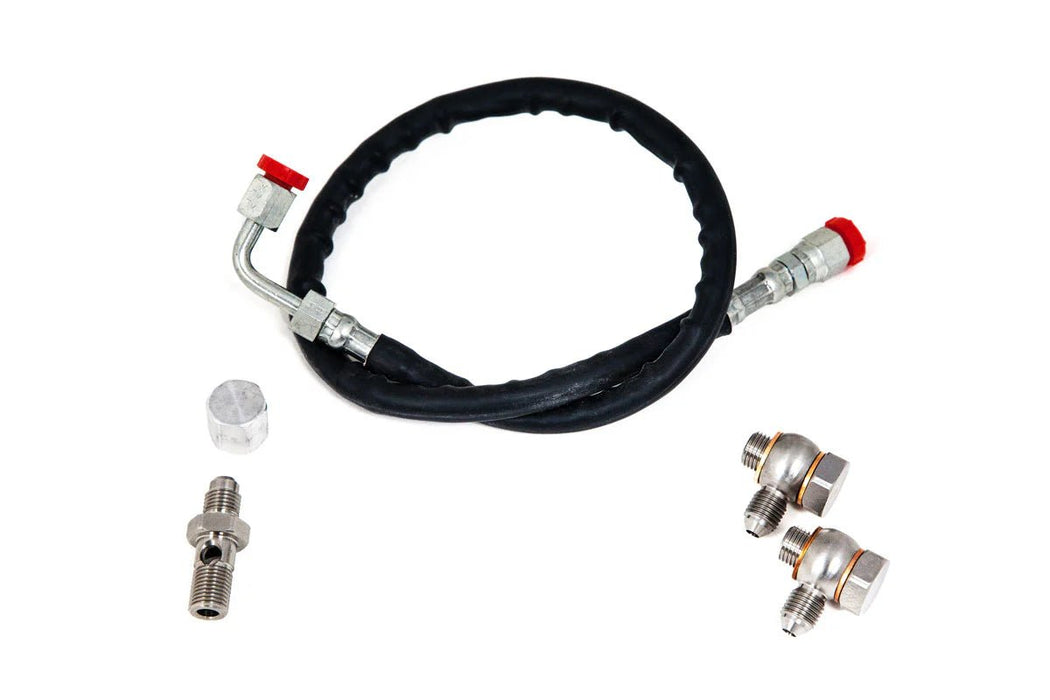

• Oil Line - Included

This turbo features the 76 HT™ compressor section with either a 60MM stock style inlet or 84MM FAP compressor cover coupled to the 8cm turbine housing with our new XR57S UHF turbine wheel. The FP Green™ flows 61LB a minute and is capable of producing upwards of 500WHP. Internal gate turbos are available with either the canister style 15 PSI actuator, or you can upgrade to an 18 PSI TiAL MVI actuator.

Oil Feed Line Installation Instructions

Attention: All Forced Performance turbochargers are built to order to your exact specifications and should not be considered on the shelf ready to ship unless specifically noted on the work order. Build times vary by model of turbo and options of said turbocharger, therefore we cannot guarantee a delivery date or ETA.
