FactionFab V2 FR-Spec Coilover Kit 2015-2021 WRX / 2015-2021 STI - 1.10277.2 - Subimods.com

FactionFab V2 FR-Spec Coilover Kit 2015-2021 WRX / 2015-2021 STI

$1,190.00
$1,190.00 - $1,190.00
$1,190.00 - $1,190.00
$1,190.00
-0%
SKU 1.10277.2
by Faction Fab

DETAILS

These V2 FR-Specs are designed from the ground up for racing. They have higher spring rates and valving to suit performance track driving at no cost. The FR-Spec line features a solid aluminum, pillow-ball camber plate that significantly reduces suspension deflection while giving full alignment control. They have a mild drop range designed to maximize shock travel and fluid capacity for consistent, long lasting performance.

QUICK SPECS

  • Adjustable: Yes
  • Camber Adjustable: Front Only
  • Caster Adjustable: No
  • Dampening Adjust Type: 30-Click
  • Damper Type: Monotube
  • Height Adjustable: Yes
  • Independent Height Adjustable: Yes
  • Spring Rate Front Metric: 12.0Kg/mm
  • Spring Rate Rear Metric: 9.8Kg/mm
  • Top Hats Included: Yes

SPECS:

  • Stiffer spring rates to prioritize performance
  • Independent ride height adjustment with a mild drop range in most applications*
  • Monotube dampers for performance without compromise
  • Proven 30-click adjustable damping that can control the stiffness for driving surface adaptation
  • Solid aluminum, pillow ball, camber-adjustable front top hats
  • Includes damping adjusters and wrenches

GENERAL:

  • OEM fit and finish for direct fitment, including brackets for components like ABS wires and brake lines
  • Japanese steel tube construction
  • Synthetic high-performance oil
  • Top hats included allowing this suspension system to be a direct replacement for your factory suspension setup
  • Forged 6061 anodized adjustable collars and spring seats that resist corrosion for easy adjustment and prolonged cycle life
  • Robotic welded and electroplated lower shock mounts for consistent fit and finish
  • Dust boots and bump stops for shock protection and longevity



    Customer Reviews

    Based on 3 reviews
    0%
    (0)
    67%
    (2)
    33%
    (1)
    0%
    (0)
    0%
    (0)
    M
    M.W.
    Great Coilover overall

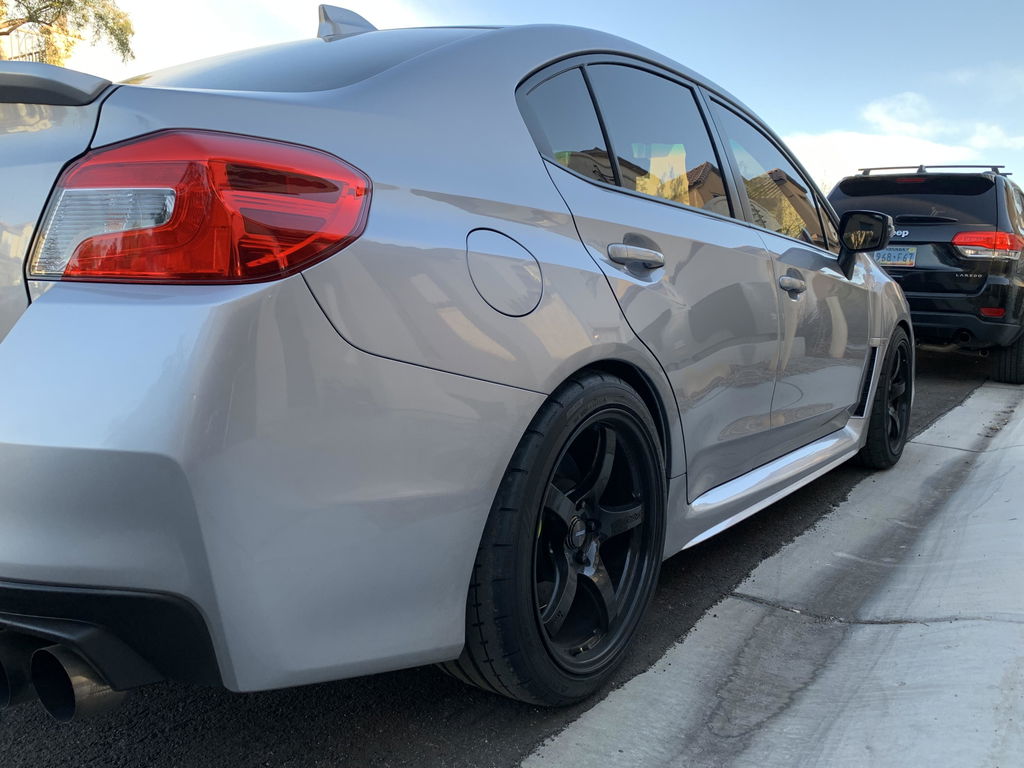

    I purchased these shocks last year for a project I was building. The car is pretty much my daily so I didn't want a shitty ride. Initially I tried the softest, the the hardest settings but neither was perfect. Finally I settled for right in the middle. It was livable but the car tended to hop under power in hard turns. My tuner went up 6 more clicks in the front and 4 in the rear. They ride amazing now! I'm really happy with them. The ride height adjustment is great because you don't have to mess with the preload. The only reason I gave them a 4 instead of 5 is due to a still undiagnosed clunking sound when I turn occasionally. I've taken the wheels off and ensured everything is installed properly and tight. Other than that, they're a great budget coilover. Also, they are domestic and rebuildable so that is a huge plus.

    Mike,

    Thank you for the kind review of the FactionFab V2 FR-Spec Coilover Kit! Sometimes it takes a while to get the right suspension setup for your WRX/STI. These definitely give you all the options you need!

    Regards,

    P
    Prince Kapahulehua
    Fab FR

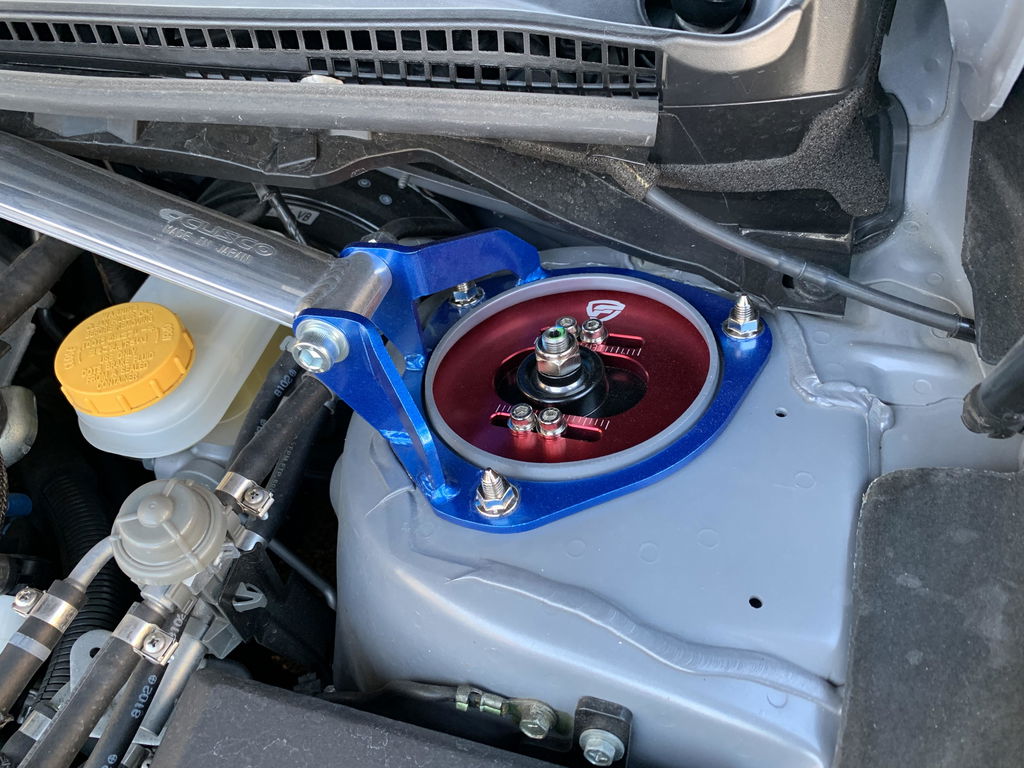

    Had these installed and aligned by my local shop, drives straight and true like Oem, noticeable spring rate change, they do make a noise when hitting imperfections in the road or reflectors due to metal top hats vs rubber, gone way over posted speed guides with nothing to report.

    User picture User picture

    Prince,

    Thank you for the detailed positive review. As with many suspension upgrades there are going to be a few extra squeaks and rattles here and there especially when stiffening up the ride. But the performance and handling usually out weighs it all!

    Regards,

    M
    Mark Subido
    You get what you paid for

    It is decent, I’m actually afraid to drive the car above 70mph, as it shakes even after alignment. The steering and handling above 70mph is scary, it feels like it is a little loose. It makes squeeze noise in the front when you do hit a bump or the road is bouncy. I should have spend the extra $600 to get the FortuneAuto

    Hello,

    Thank you for the review! There are a lot of technical nuances to suspension and suspension setup as well as alignment. FactionFab puts out a great product and if you are noticing something irregular we would like to help and get more information. I encourage you to reach out via email to support@subimods.com or call us at 860-291-0015.

    Regards,
