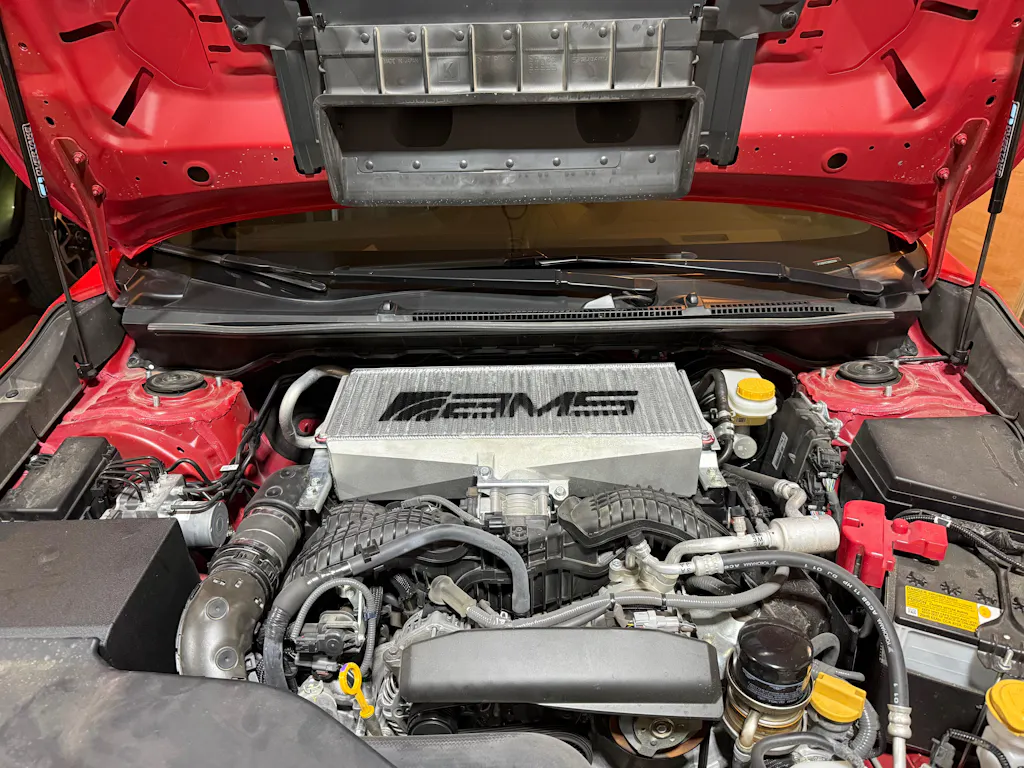

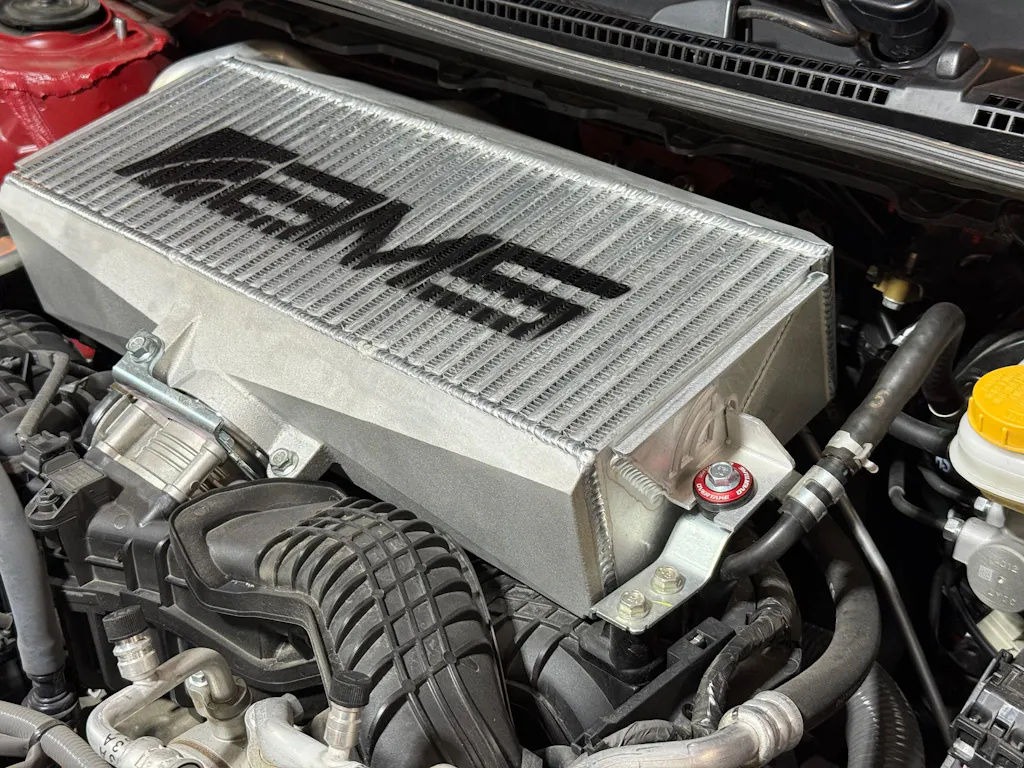

AMS Performance Top Mount Intercooler Silver 22-25 WRX / 20-25 Outback XT / 20-25 Outback Wilderness

The AMS Performance Top Mount Intercooler provides exceptional heat transfer efficiency due to its superior engineering, materials, and construction. Our team specified the highly efficient 4″ thick intercooler core based on years of motorsports experience which will help keep your intake temps lower and maintain the maximum power output of your WRX, no matter the conditions. With a 71% increase in core size over factory, higher volume cast aluminum end tanks, and TIG welded by hand in the USA, the AMS Performance Top Mount Intercooler redefines heat management for the FA24 engine.

Features:

• Huge 21″x7.5″x4″ Bar and Plate Core to Fill the Factory Hood Scoop and Duct


• 37 Row Intercooler Core for Excellent Efficiency

• Louvered Fins Inside and Out Increases Surface Area for Heat Transfer

• Pressure Tested Before Boxing

• Direct Bolt-In Design and Requires Zero Cutting for Easy Install

Comparison to Stock TMIC:

• 48.6°F Reduction in Charge Air Temp
• 15% lb/min Increase in Mass Airflow
• Charge Pipe Connection Flange Enlarged 13%
• 12% Reduction in Pressure Drop
• 71% Increase in Core Size

Installation Instructions
