AEM X-Series 35 PSI Boost Gauge 52mm

The AEM X-Series Digital Boost Display Gauge delivers precise boost pressure readings with exceptional clarity and style. Measuring boost and vacuum from -30in/Hg to 35 PSI (or -1 to 2.5 BAR), this gauge is ideal for high-performance applications that demand accuracy, quick response, and easy integration.

Featuring AEM’s next-generation display technology, the X-Series offers an 87% larger center LED readout for superior visibility, paired with a sweeping green LED needle for instant reference. Despite its larger display, the gauge maintains a compact 52mm (2-1/16”) housing and an ultra-slim depth of under 0.825", allowing for flexible mounting in almost any location.

Features

• Measurement Range: -30in/Hg to 35 PSI / -1 to 2.5 BAR
• Gauge Size: 52mm (2-1/16”) for standard pod fitment
• Slim Design: 0.825" overall depth (0.200" cup depth) for easy installation

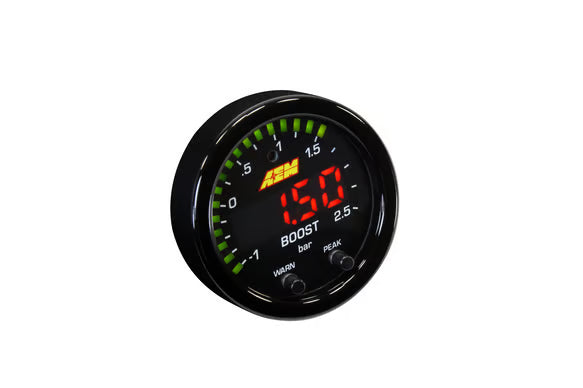

• Display: 87% larger center LED with 24 green outer LEDs for fast visual feedback
• User Programmable: Peak/recall, threshold warnings, and standard/metric display modes
• Connectivity: AEMnet CAN-bus enabled for data output to AEM or 3rd-party EMS/loggers
• Analog Output: 0–5V signal for data logging or engine management input
• Auto-Dimming: Built-in sensor adjusts brightness for day or night driving

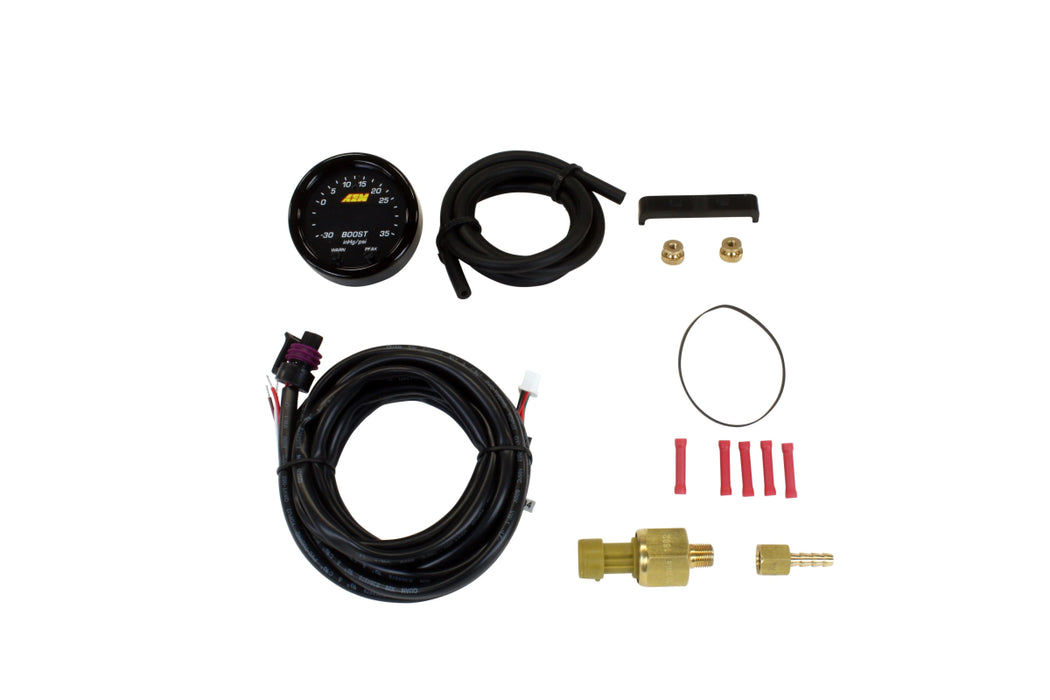

• Included: Black bezel with reversible black PSI/BAR faceplate
• Optional Accessory Kit (PN 30-0306-ACC): Silver bezel and reversible white PSI/BAR faceplate

Smarter, Slimmer, and Easier to Use

The X-Series Boost Gauge uses an advanced single-board design to minimize depth while improving reliability. Dual front-face buttons make it easy to program warning thresholds, recall peak readings, or switch between PSI and BAR display modes on the fly.
